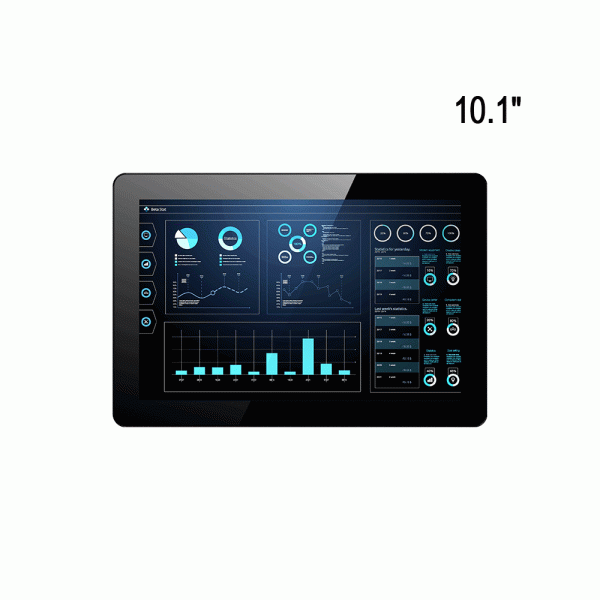

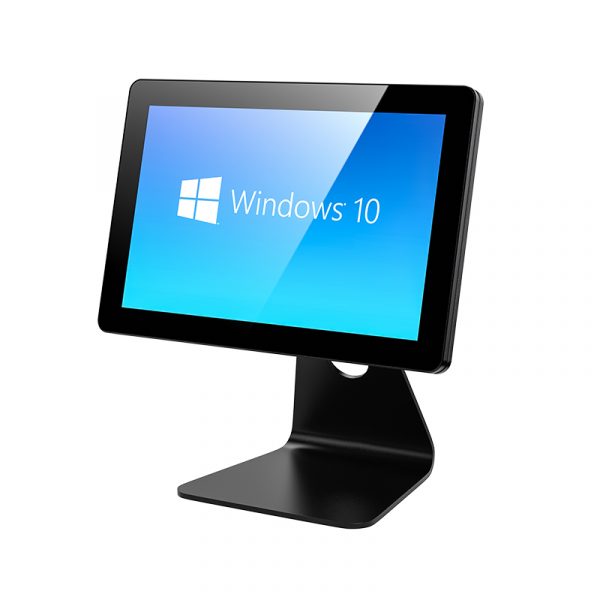

10.1″ DPC-9100 Industrial Touch Panel PC with Intel® Celeron® Processor
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
● 10.1″ LED-backlit LCD with capacitive or resistive touch screen
● Rugged aluminum enclosure and fanless design
● Intel® Celeron® Processor J Series
● 1x COM, 3x USB, 2x LAN, 1x VGA
● Wi-Fi support
● VESA 75 mount and panel mount compatibility
● IP65 compliant front panel
| Display | ||||
| Size | 10.1 inch | |||
| Touch Type | 5-wire resistive touch/Projected capacitive multi touch (optional) | |||
| Transmitiance | 87% (capacitive) / 80% (resistive) | |||
| Control Interface | USB | |||
| Surface Hardness | ≥7H/≥3H | |||
| Resolution | 1280 x 800 | |||
| Luminance | 350 nits | |||
| Contrast Ratio | 1000:1 | |||
| View Angles | 80 (left), 80 (right), 80 (up), 80 (down) | |||
| LED Lifetime | 25,000 hrs | |||
| Color | 16.2 M | |||
| System | ||||
| CPU | Intel® Celeron® J1900 processor | Intel® Celeron® J4125 processor | Intel® Celeron® J6412 processor | |
| Memory | 1x SO-DIMM DDR3-1333/1600MHz, up to 8GB | 1x SO-DIMM DDR4-2400MHz, up to 8GB | 1x SO-DIMM DDR4-3200MHz, up to 16GB | |
| Storage | 1x full length Mini PCIe for mSATA SSD | |||

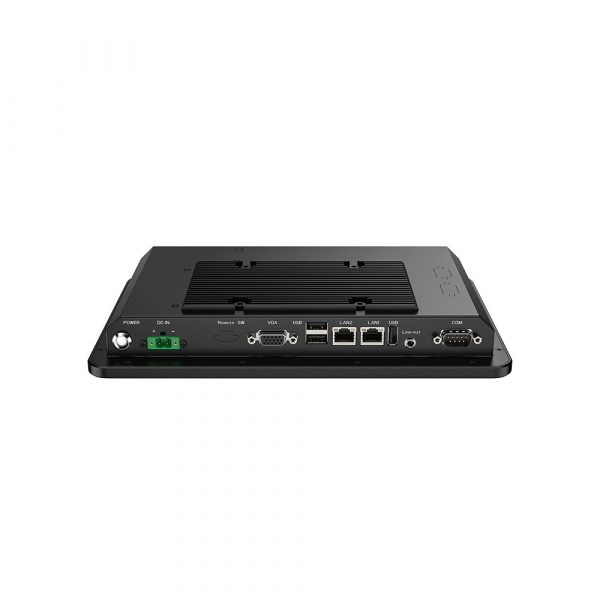

| I/O Ports | ||||
| USB | 2x USB2.0, 1x USB3.0 | |||
| Serial | 1x COM (RS232) | |||
| Ethernet | 2x GbE LAN | |||
| Display | 1x VGA | |||
| Antenna | 2x SMA antenna holes | |||
| Expansion Slot | ||||
| Mini PCIe | 1x full length Mini PCIe for Wi-Fi 1x full length Mini PCIe for mSATA |
|||
| RF Communication | ||||
| Wi-Fi | Mini PCIe expansion (optional) | |||
| Cellular | Mini PCIe expansion (optional) | |||
| Bluetooth | Mini PCIe expansion (optional) | |||
| Audio | ||||
| Audio | Line out | |||
| Speaker | 2Ω 5W speaker (optional) | |||
| Power | ||||
| Button | M12 | |||
| Remote Power On/Of | 1x Remote switch connector | |||
| DC Input | 12 VDC | |||
| Power Connector | 2-pin phoenix terminal | |||
| Power Consumption | 15 W | |||
| Power Adaptor | AC-DC, 12V@5A, 60W | |||
| Operating System | ||||
| Windows | Windows 7, Windows 10 | Windows 10 | Windows 10, Windows 11 | |
| Mechanical | ||||
| Dimensions (W x D x H) | 261.5x 174.6 x 38.6 mm (10.3 x 6.9 x 1.5 inches) | |||
| Weight (N.W.) | 1.8 kg (4 lbs) | |||

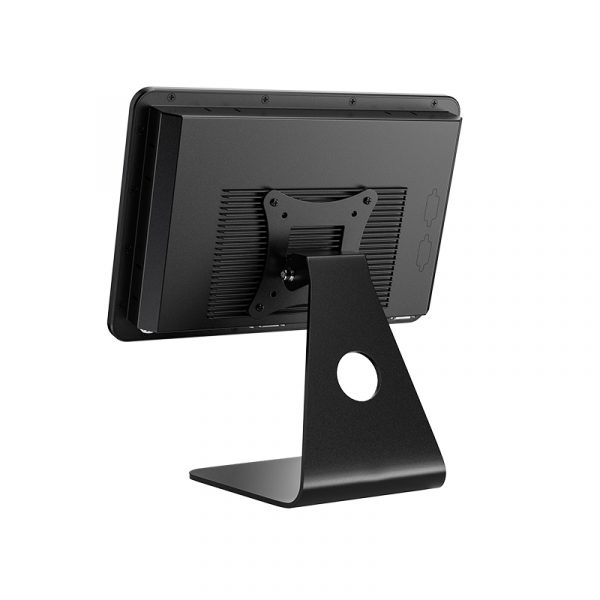

| Mounting | Panel mount, wall mount bracket VESA 75 | |||
| Material | Aluminum alloy panel, all-metal chassis | |||
| Environment | ||||
| Operating Temperature | -10 to 50℃ (14 to 122°F) | |||
| Storage Temperature | -20 to 60°C (-4 to 140°F) | |||
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing | |||
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||
| IP Rating | IP65 compliant (for front panel) | |||
| Certification | ||||
| EMC | CE, FCC | |||
