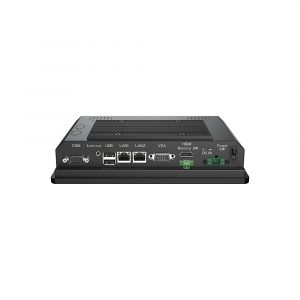

8″ DPC-9080 Industrial Touch Panel PC with Intel® Celeron® Processor
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview

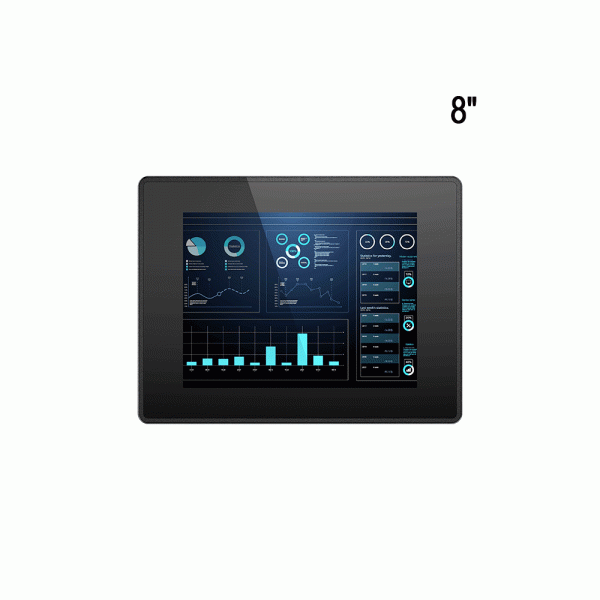

● 8″ LED-backlit LCD with capacitive or resistive touch screen
● Rugged aluminum enclosure and fanless design
● Intel® Celeron® J1900 Processor
● Wi-Fi support
● VESA 75 mount and panel mount compatibility
● IP65 compliant front panel
| Display | |
| Size | 8 inch |
| Touch Type | 5-wire resistive touch/Projected capacitive multi touch |
| Transmittance | 87% (capacitive) / 80% (resistive) |
| Resolution | 1024 x 768 |
| Luminance | 400 nits |
| Contrast Ratio | 1000: 1 |
| View Angles | 80 (left), 80 (right), 80 (up), 80 (down) |
| LED Lifetime | 30,000 hrs |
| Color | 16.7M |
| System | |
| CPU | Intel® Celeron® J1900 processor (quad core, 2.0 GHz) |
| Memory | 4GB DDR3L 1333/1600MHz (Onboard) |
| Storage | 1x full length Mini PCIe for mSATA SSD |

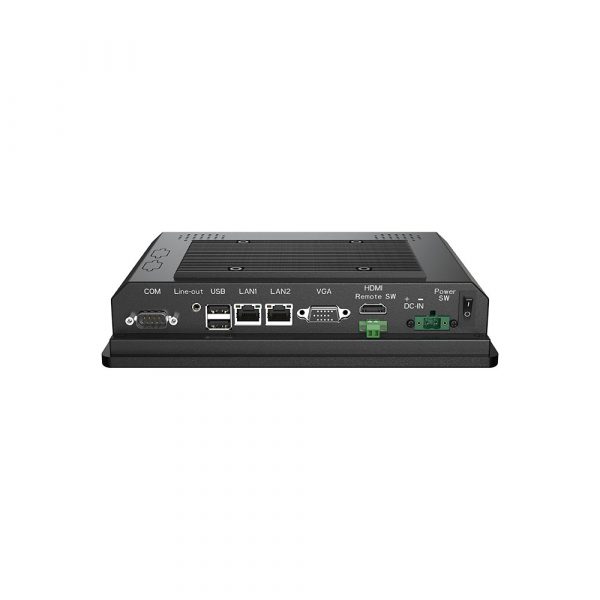

| I/O Ports | |
| USB | 1x USB 2.0, 1x USB 3.0 |
| Serial | 1x COM (RS-232) |
| Ethernet | 2x GbE LAN |
| Display | 1x HDMI, 1x VGA |
| Antenna | 2x SMA antenna holes |
| Expansion Slot | |
| Mini PCIe | 1x full length Mini PCIe for Wi-Fi 1x full length Mini PCIe for mSATA |
| RF Communication | |
| Wi-Fi | Mini PCIe expansion (optional) |
| Cellular | Mini PCIe expansion (optional) |
| Bluetooth | Mini PCIe expansion (optional) |
| Audio | |
| Audio | Line out |
| Speaker | 2Ω 5W speaker (optional) |
| Power | |
| Button | Yes |
| DC Input | 12VDC |
| Power Consumption | 15W |
| Power Connector | 2-pin phoenix terminal |
| Remote Power On/Of | 1x Remote switch connector |
| PowerAdaptor | AC-DC, 12V@5A, 60W |
| Operating System | |
| Windows | Windows 7, Windows 10 |
| Mechanical | |
| Dimensions (W x D x H) | 227x 173 x 47 mm (8.9 x 6.8 x 1.8 inches) |
| Weight (N.W.) | 1.7 kg (3.7 lbs) |
| Mounting Mode | Panel mount, wall mount bracket VESA 75 |
| Material | Aluminum alloy panel, all-metal chassis |
| Environment | |
| Operating Temperature | -10 to 50℃ (14 to 122°F) |
| Storage Temperature | -20 to 60℃ (-4 to 140°F) |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| IP Rating | IP65 compliant (I/O interface must be closed) |
| Certification | |
| EMC | CE, FCC |
