8″ DPC-9080-J6412 Industrial Touch Panel PC with Intel® Celeron® Processor
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
●8″ LED-backlit LCD with capacitive or resistive touch screen
● Rugged aluminum enclosure and fanless design
● Intel® Celeron® J6412 Processor

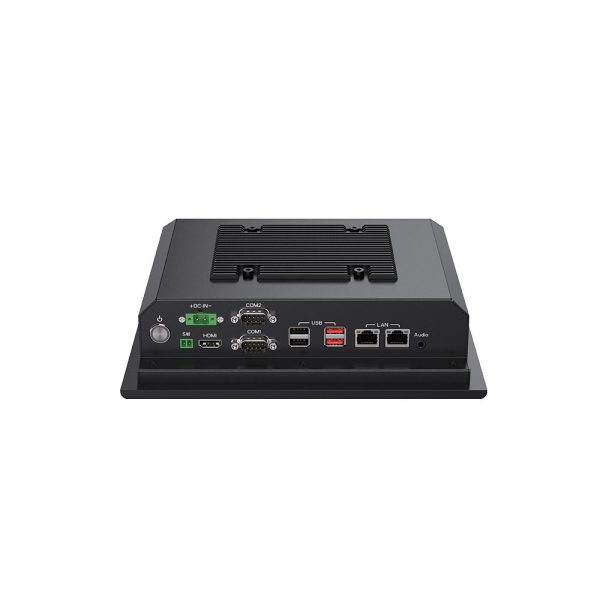

● 2x COM, 4x USB, 2x LAN, 1x HDMI
● Wi-Fi support
● VESA 75 mount and panel mount compatibility
● IP65 compliant front panel
| Display | |
| Size | 8 inch |
| Touch Type | 5-wire resistive touch/Projected capacitive multi touch |
| Transmittance | 87% (capacitive) / 80% (resistive) |
| Control Interface | USB |
| Surface Hardness | ≥3H≥7H |
| Resolution | 1024 x 768 |
| Luminance | 400 nits |
| Contrast Ratio | 1000: 1 |
| View Angles | 80 (left), 80 (right), 80 (up), 80 (down) |
| LED Lifetime | 30,000 hrs |
| Color | 16.7M |
| System | |
| CPU | Intel® Celeron® J6412 processor (quad core, 2.0 GHz) |
| Memory | DDR4 2400/3200MHz (up to 32GB) |
| Storage | 1 x SATA 3.0, 1 x M.2 2242 (SATA3.0 supported) |
| I/O Ports | |
| USB | 2 x USB2.0, 2 x USB3.1 |
| Serial | COM1 (1 x RS-232/RS-422/RS-485); COM2 (1x RS232(default)/RS485(Jumper) |
| Ethernet | 2x GbE LAN |
| Display | 1x HDMI |
| Antenna | 2x SMA antenna holes |
| Expansion Slot | |
| Mini PCIe | 1 x Mini-PCIe (WiFi/4G/supported) |
| RF Communication | |
| Wi-Fi | Mini PCIe expansion (optional) |
| Cellular | Mini PCIe expansion (optional) |
| Bluetooth | Mini PCIe expansion (optional) |
| Audio | |
| Audio | line out |
| Speaker | 3Ω 4W speaker (optional) |
| Power | |
| Button | Yes |
| DC Input | 12VDC or 24VDC |
| Power Consumption | 15W |
| Power Connector | 2-pin phoenix terminal |
| Remote Power On/Off | 1x Remote switch connector |
| Power Adaptor | AC-DC, 12V@5A, 60W |
| Operating System | |
| Windows | Windows 10, Windows 11 |
| Mechanical | |
| Dimensions (W x D x H) | 236x 188 x 63 mm (9.3 x 7.4 x 2.5 inches) |
| Weight (N.W.) | 1.9 kg (4.4 lbs) |
| Mounting Mode | Panel mount, wall mount bracket VESA 75 |
| Material | Aluminum alloy panel, all-metal chassis |
| Environment | |
| Operating Temperature | 10 to 50°C (14 to 122°F); -20℃ to 60°C (-4℉ to 140°F)(with W.T. SSD/DRAM) |
| Storage Temperature | -20 to 60℃ (-4 to 140°F) |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Certification | |
| EMC | CE, FCC |
