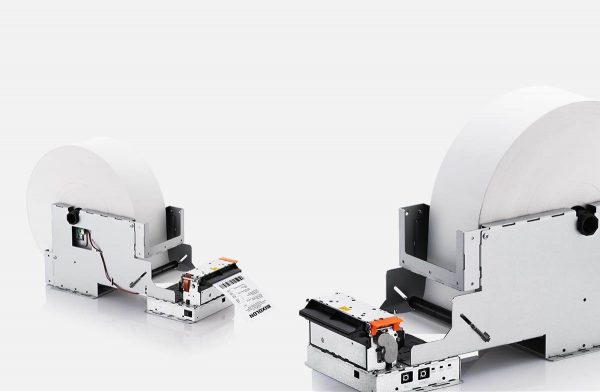

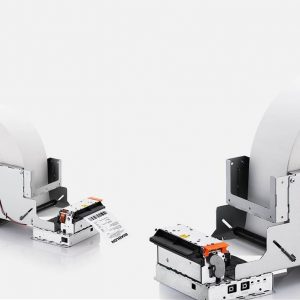

BK3-32, 3-inch Kiosk Printer mechanism with large roll diameter
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Print Method | Direct Thermal |
| Print Speed | Up to 250 mm/s |
| Print Resolution | 203dpi |
| Print Width | BK3-31/BK3-32: 72 / 54 / 48 / 12 mm BK3-21: 54 / 48 / 12 mm |
| Sensor | Paper End, Cover Open, Near End, Black Mark |
| Media Characteristics | |
| Media Type | Receipt, Ticket |
| Media Width | 20 / 58 / 60 / 80 / 83 mm |
| Media Roll Diameter | BK3-31/BK3-32: 83 / 80 / 60 / 58 / 20 mm BK3-32: Up to 250 mm |
| Media Thickness | 0.05 ~ 0.15 mm |
| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| Dimensions (WxLxH) | BK3-31 Media Roll Diameter Φ80: 130 x 130 x 91 mm Media Roll Diameter Φ102: 130 x 137 x 99 mm Media Roll Diameter Φ120: 130 x 144 x 105 mm BK3-32 Media Roll Diameter Φ250: 130 x 339 x 145 mm BK3-21 Media Roll Diameter Φ80: 109 x 130 x 91 mm Media Roll Diameter Φ102: 109 x 137 x 99 mm Media Roll Diameter Φ120: 109 x 144 x 105 mm |
| Weight | BK3-31: 700 g, BK3-32: 1,470 g BK3-21: 600 g |
| Electrical | 100-240 V AV, 50/60 Hz |
| Lever Direction | BK3-31/BK3-32: Left / Right, BK3-21: Right |
| Mount Direction | BK3-31/BK3-21: Horizontal / Vertical BK3-32 : Horizontal only |
| Performance Characteristics | |
| NV Image Memory | 256 Kbytes (Mono) |
| Receive Buffer | 64 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | Standard: USB (V2.0 Full Speed) + Serial Optional: USB (V2.0 Full Speed) + Serial + Ethernet (BK3-31 only) |
| Environment Characteristics | |
| Temperature | Operating: -20~60 ℃ (-4~140 ℉) ※ Optimal printing performances and maximum reliability will be obtained between 0 and 40 °C Storage: -20~60 ℃ (-4~140 ℉) |
| Humidity | Operating: 10~95 % (non-condensing) Storage: 10~95 % (non-condensing) excluding paper |
| Reliability | |
| Thermal Print Head (TPH) | 100 km |
| Auto Cutter | 1.5 Million Cuts |
| Software | |
| Emulation | BXL / POS |
| Driver/Utility | Windows Driver, OPOS Driver, Linux / Mac CUPS Driver, Utility Program, Network Auto Installer(BK3-31) |
| SDK/Plugin | Android SDK, Windows SDK, Linux SDK |
| Fonts/Graphics/Symbologies | |
| Character Size | Font A: 12×24 Font B: 9×17 Font C: 9×24 KOR, CHN, JPN: 24×24 |
| Characters Per Line | Print width 72 mm : Font A: 48 Font B, C: 64, KOR, CHN, JPN: 24 (BK3-31 only) Print width 54 mm : Font A: 36 Font B, C: 48, KOR, CHN, JPN: 18 Print width 48 mm : Font A: 32 Font B, C: 42, KOR, CHN, JPN: 16 Print width 12 mm : Font A: 8 Font B, C: 10, KOR, CHN, JPN: 4 |
| Character Sets | Alphanumeric: 95 Extended Graphics:128×35 page International: 32 |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | 1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, GS1-128, GS1 DataBar Stacked / Omnidirectional / Truncated / Limited / Expanded, PDF417, QR code |
| Accessories | |
| Optional | SMPS (DC Jack) SMPS (2P Connector) Male to Male type Serial Cable 5P to Male type Serial Cable USB A-B Cable 1.8 m Power Cord |
