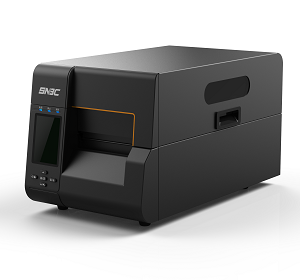

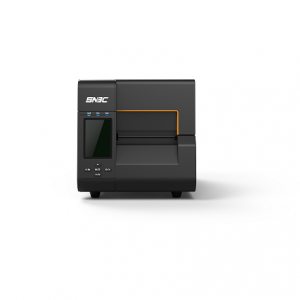

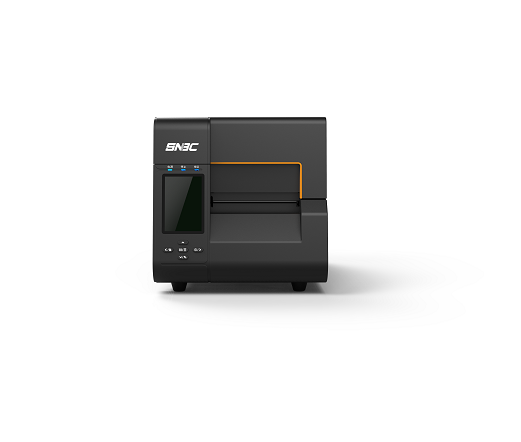

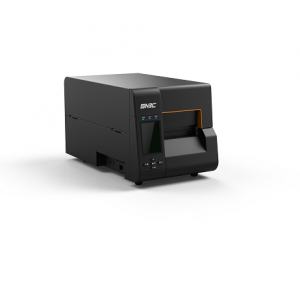

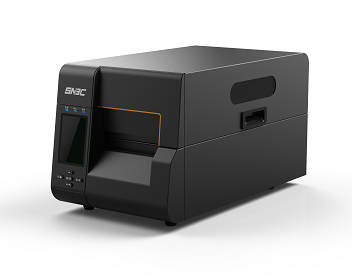

BTP-6200Plus 4″ Industrial label printer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Item | BTP-6200Plus | |
| Print method | Direct thermal/thermal transfer | |
| Resolution | 203DPI | |
| Print width (Max.) | Max.104mm | |
| Print speed (Max.) | Max.150mm/s | |
| Memory | SDRAM: Standard 64MB, optional 128MB Flash: Standard 4MB, optional 8MB/16MB/64MB |
|
| Sensors | Movable black mark detection and label detection sensor | |
| Processor | 32-bit RISC processor | |
| Editing Language | BPLA | |
| Interface | Standard: USB+Serial Optional: Serial+Parallel(CENTRONICS), Serial+Ethernet |
|
| Barcode | 1D Barcode | Code39, Code93, Codabar, Code128(Subsets A,B and C), EAB-13, EAN-8, UPC-A, UPC-E, UPC/EAN Extensions, Planst Code, Standard 2 of 5, In sudtrial 2 of 5, Interleaved 2 of 5, LOGMARS, GS1 DataBar |
| 2D Barcode | PDF417, MAXICODE, QR code, MicroPDF417,DataMatrix,MaxiCode,GS1 Composite | |
| Paper | Paper type | Continuous paper, label paper, punched paper, marking paper, etc |
| Paper width | Max.110mm | |
| Paper thickness | 0.06-0.20mm | |
| Paper roll OD | Max.203mm | |
| Paper roll ID | 25~76mm | |
| Ribbon | Ribbon Width | Max.110mm |
| Ribbon Length | Max.300m | |
| Ribbon ID | 25.4 mm | |
| Operation | Button/light | 5 buttons, 3 lights |
| LCD | 3.5 color LCD screen | |
| Power supply | Input | 110-220V, AC 50-60Hz |
| Output | 24V DC, 2.5A | |
| Environment | Operation condition | 5～45℃, 20%～80% RH（40℃） |
| Storage condition | -40～55℃,20%～93%（40℃） | |
| Physics Spec. | Dimensions | 235(W)*431(L)*240(H)mm |
| Weight | Approx. 10 Kg | |
