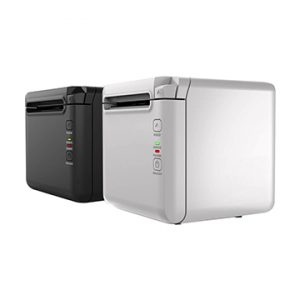

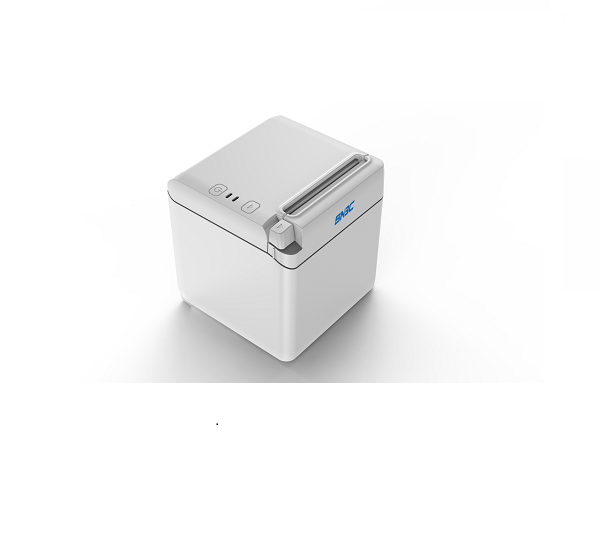

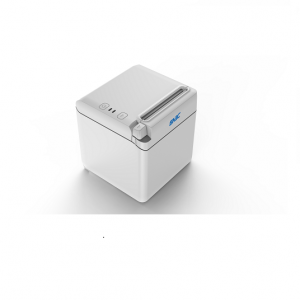

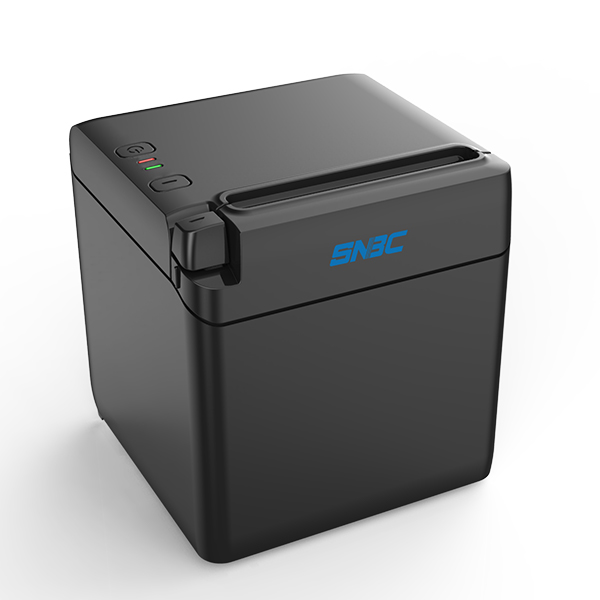

BTP-S80 80mm Thermal receipt printer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| ITEM | BTP-N80 | |
| Print method | Direct thermal line printing | |
| Resolution | 203*203DPI | |
| Print width | Max. 72mm | |
| Print speed | Max. 200mm/s | |
| Memory | 4MB Flash | |
| Sensor | Photoelectric sensor | |
| Cash drawer control | 1 cash drawer | |

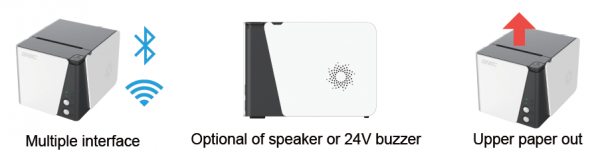

| Interface | USB, USB+Serial+WIFI, USB+Serial+Bluetooth, USB+Ethernet | |
| Barcodes Fonts |
One-dimensional barcode | JAN8 (EAN8), JAN 13 (EAN 13), ITFUPC-A, UPC-E, CODE 39, CODE 93, CODE 128, CODABAR |
| Character set | USA, France, Germany, UK, Denmark I, Denmark II, Italy, Sweden, Spain I, Spain II, Japan, | |
| Norway, Latin America, Korea, Japanese, Chinese, GB18030, GB2312 | ||
| Fonts | Font A(12×24), Font B(9×17), Kanji Font(24×24) | |
| Paper | Paper type | Continuous paper; Marked paper |
| Paper thickness | 0.06mm~0.08mm | |
| Paper roll OD | Max. 83mm | |
| Paper roll width | 80±0.5mm | |
| Paper cut | Full cut, partial cut, tear off | |
| Power supply | Input | AC 100-240V 50/60Hz |
| Output | 24V, 2.5A | |
| Reliability | Print head lifetime | 100km |
| Cutter lifetime | 1,000,000 cuts | |
| Environment | Operation condition | 5~45°C, 20 – 90%RH (40°C) |
| Storage condition | -40°C~60°C, 20% ~ 93% RH (40°C) | |
| Physics Spec. | Dimensions | 126(W) x160.5(L) x116.5(H)mm |
