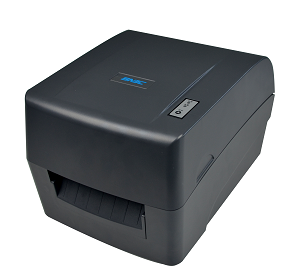

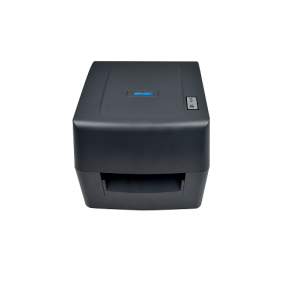

BTP-U100T 4” Thernal label printer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Item | BTP-U100t | ||
| Print Method | Direct Thermal line printing | ||
| Resolution | 203DPI | 300DPI | |
| Print width | Max.104mm | ||
| Print speed | Max.150mm/s | Max.75mm/s | |
| CPU | 32 bits RISC CPU | ||
| Interface | USB | ||
| USB+Serial | |||
| Sensor | Paper sensor | Transmission sensor (removable). Reflection Sensor (removable) | |
| Barcode | 1D Barcode | Code 3 of 9,UPCA,UPCE,interleaved 2 of 5,code 128,EAN 13,EAN 8,HBIC(39 code with checkout),Codabar industry CODE25, storage and transportation code,UPC2,UPC5,Code 93,Postnet 25(China) ,UCC/EAN,matrix 25,POSTNET code,etc. | |
| 2D Barcode | PDF417,MAXICODE,QR Code.etc | ||
| Paper | Paper type | Marked paper,Black marked paper,Folding paper; Punched paper | |
| Paper width | 19-120mm | ||
| Paper thickness | 0.06 – 0.20 mm | ||
| Paper roll OD | Max.127mm | ||
| Paper roll ID | 25/38mm | ||
| Ribbon | Width | Max.110mm | |
| Length | Max.300mm | ||
| Ribbon ID | 25.4mm | ||
| Operation interface | Press-button/indicator light | 1 button 2 lights | |
| Power supply | Input | 110-240V AC. 50/60HZ | |
| Output | 24 DC. 2.5A | ||
| Environment | Operation condition | +5°C-45°C,20%-90%RH | |
| Storage condition | -40°C -60°C,20%-93%RH | ||
| Physics Spec | Dimensions | 210(W)X280(D)X185(H)mm | |
| Weight | About 2.1 KG | ||
