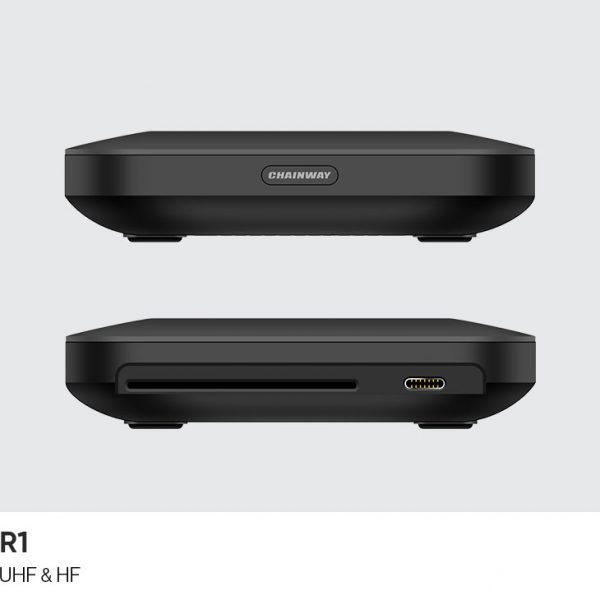

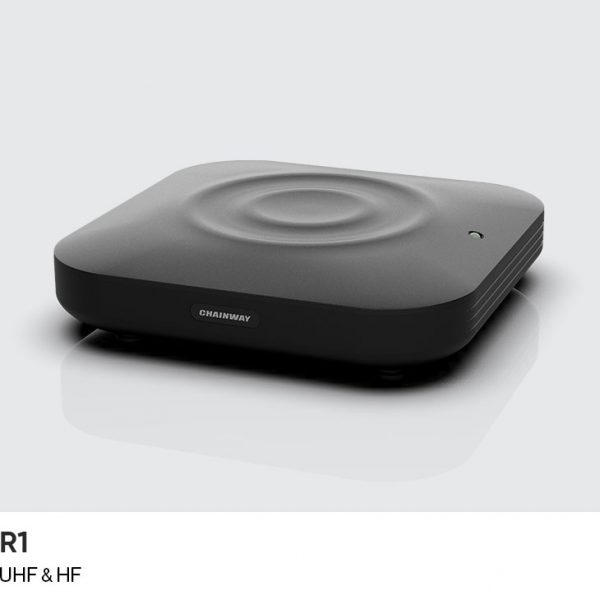

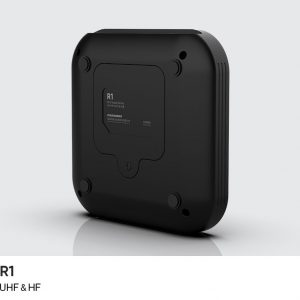

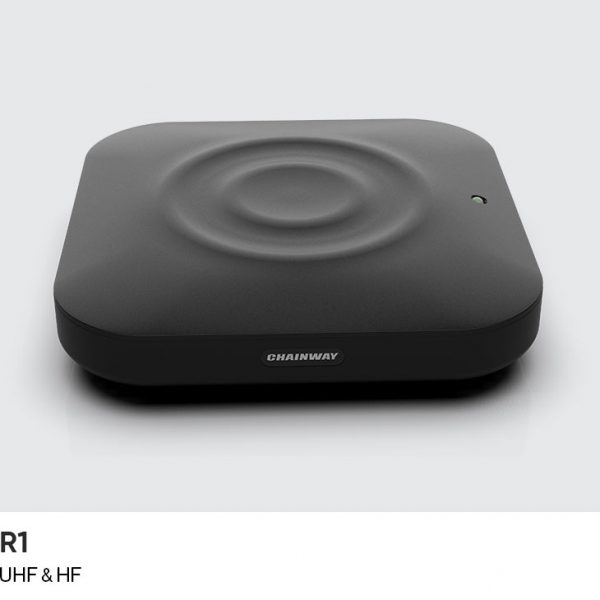

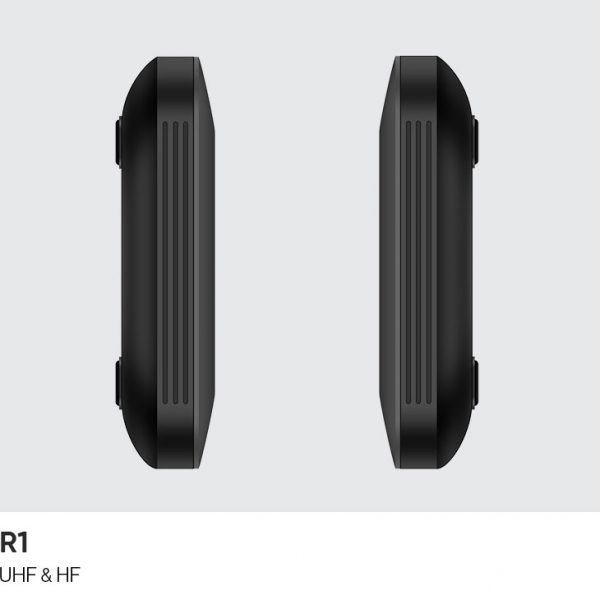

Chainway R1 RFID Reader/Writer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Physical Characteristics | |
| Dimensions | 117 mm x 117 mm x 25 mm |
| Weight | 170 g / 6.0 oz. |
| Notification | LED indicator, buzzer |
| Interfaces | USB Type-C |
| Cable | 1.2 m |
| Power | |
| Input Voltage | DC3.5-5.25V |
| UHF | 5W@25dBm |
| HF | 2 W |
| Standby | 0.4 W |
| User Environment | |
| Operating Temp. | -25 ℃ to 65 ℃ |
| Storage Temp. | -40 ℃ to 85 ℃ |
| Humidity | 10% – 95% |
| UHF RFID | |
| Engine | CM-3N module based on Impinj E310 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Impinj Gen2X | Supported |
| Protocol | ISO18000-6C/EPC C1G2 |
| Antenna | Circular Polarized Antenna |
| Output Power | +5 dBm to +25 dBm adjustable Accuracy：+/-1dB |
| Max Read Range | 15 cm |
| PSAM | |
| Protocol | ISO7816 T=0, T=1 |
| Slots | 2 slots |
| HF RFID | |
| Frequency | 13.56 MHz |
| Protocol | ISO/IEC 14443A ISO/IEC 14443B ISO/IEC 15693 ISO/IEC 18000-3 mode 3/EPC class-1 HF JIS X 6319-4 |
| Range | 5 cm |
