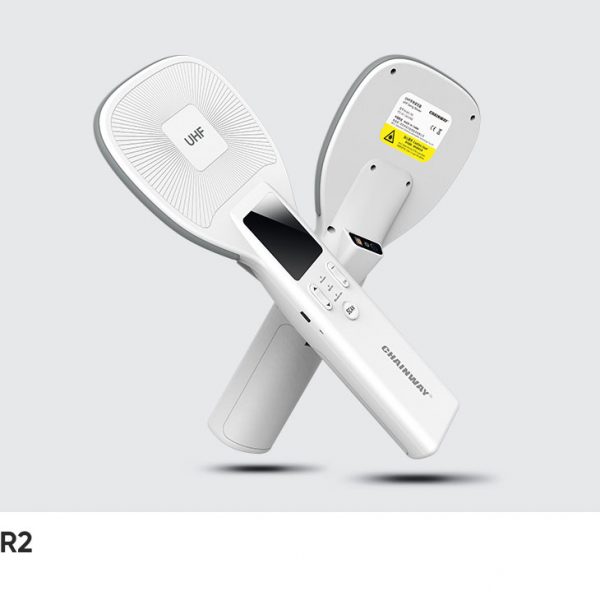

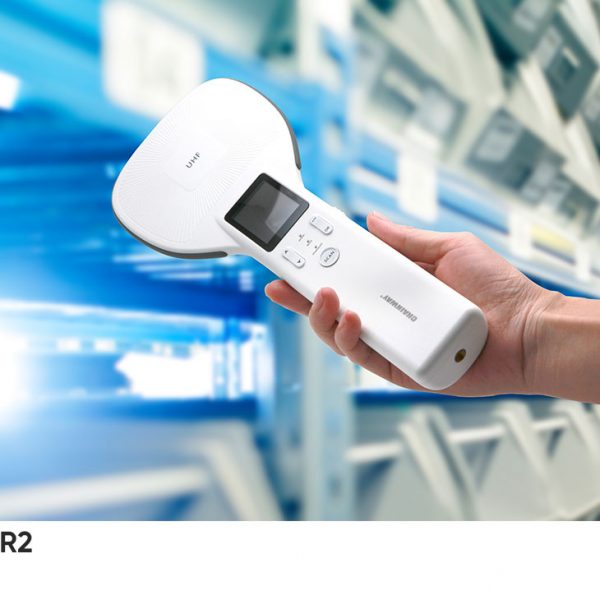

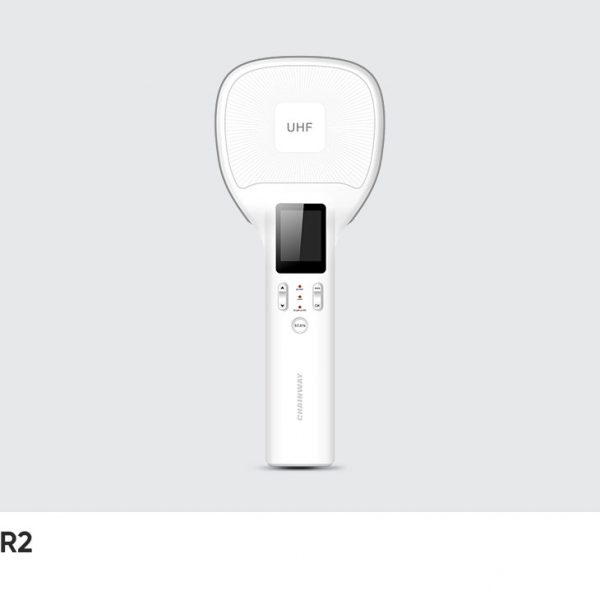

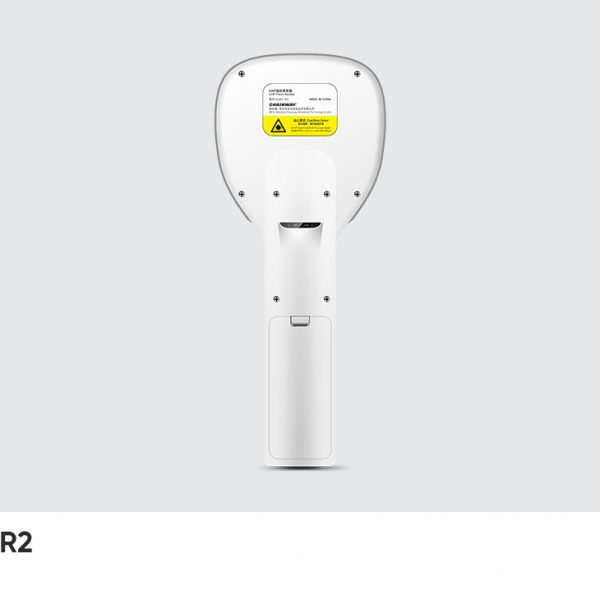

Chainway R2 Bluetooth RFID Reader
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Dimensions | 282 x 117.5 x 32mm / 11.10 x 4.63 x 1.26in. |
| Weight | 334 g / 11.78oz. (with battery) |
| Display | 1.77 inch, 128 x 160 |
| Power | Battery specification: 5200 mAh Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 6 hours (UHF reading) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Buzzer | Support |

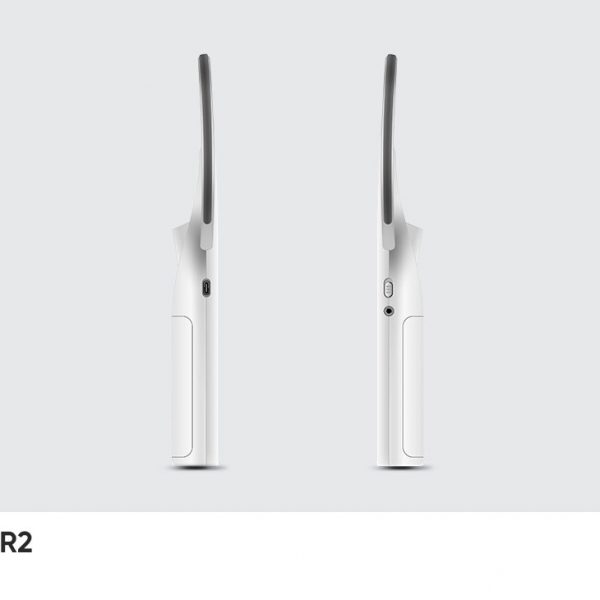

| Interfaces | USB Type-C |
| Indicator LED | Power, Work, Bluetooth |
| Product Material | Plastic |
| Colour | White |
| Communication | |
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 |
| Developing Environment | |
| SDK | Android / iOS |
| Language | Java / Objective-C |
| Tool | Android Studio / Xcode |
| Performance | |
| MCU | Cortex-M3 72MHz |
| Storage | 50000 tags |
| User Environment | |
| Operating Temp. | -20℃~+50℃ |
| Storage Temp. | -40℃~+70℃ |
| Humidity | 5%RH – 95%RH non condensing |
| Drop Specification | Multiple 1.5m / 4.9ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature |
| ESD | ±15KV air discharge, ±8KV conductive discharge |
| Barcode Scanning | |
| 2D Imager Scanner | SE2707 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
| UHF RFID | |
| Engine | CM710-1 module based on Impinj E710 |
| Frequency | 920-925MHz / 902-928MHz / 865-868MHz |
| Impinj Gen2X | Supported |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Linear Polarized antenna (4dBi) |
| Fastest Read Rate | 900+ tags/sec |
| Max Read Range | 26m (Impinj MR6 tag, size 70 x 15mm) 27m (Impinj M750 tag, size 70 x 15mm) 31m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Note | * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. |
