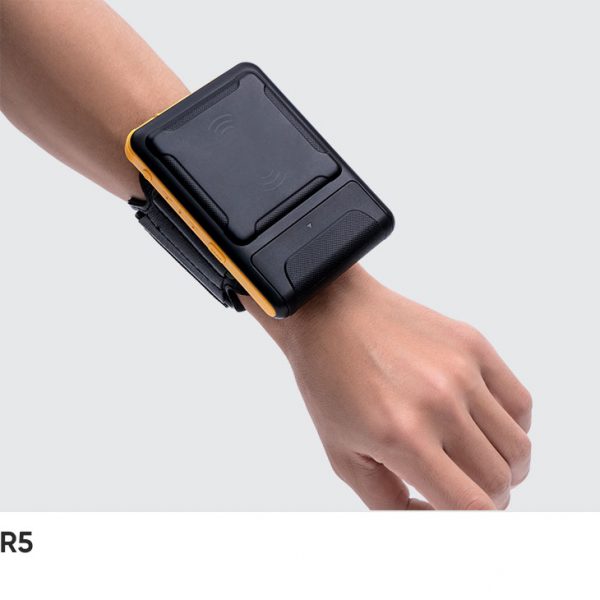

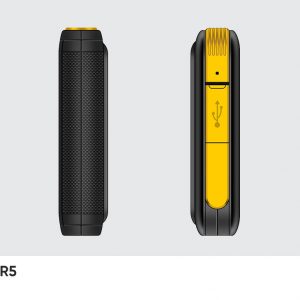

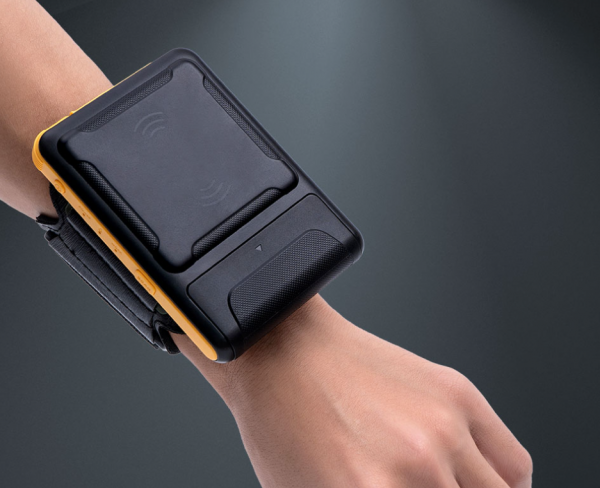

Chainway R5 Wearable RFID Reader
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products

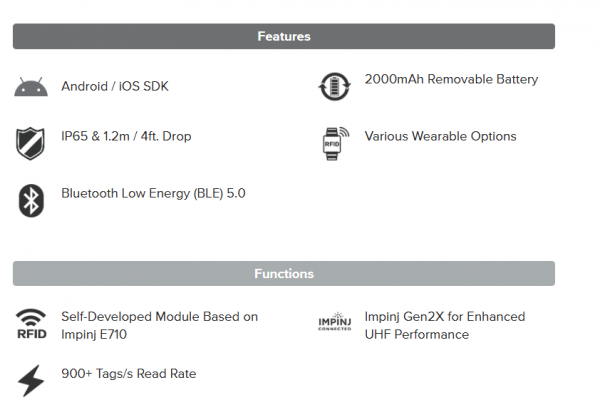

Overview
| Dimensions | 108 mm × 78 mm × 18 mm |
| Weight | 200 g / 7.05 oz. |

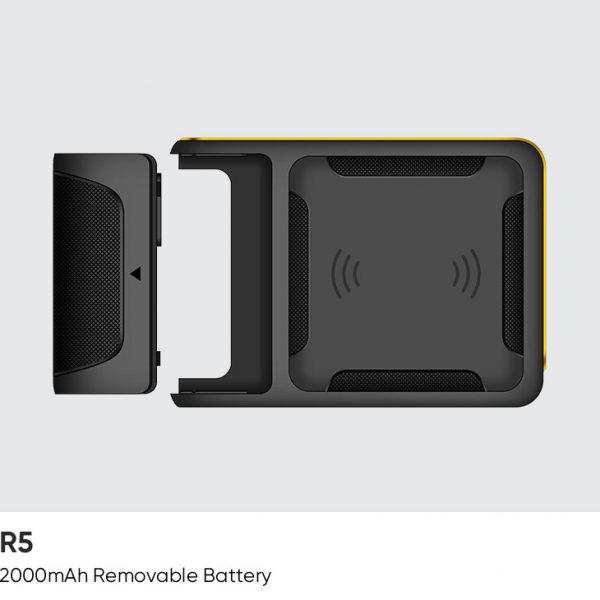

| Battery | 2000 mAh (removable) |

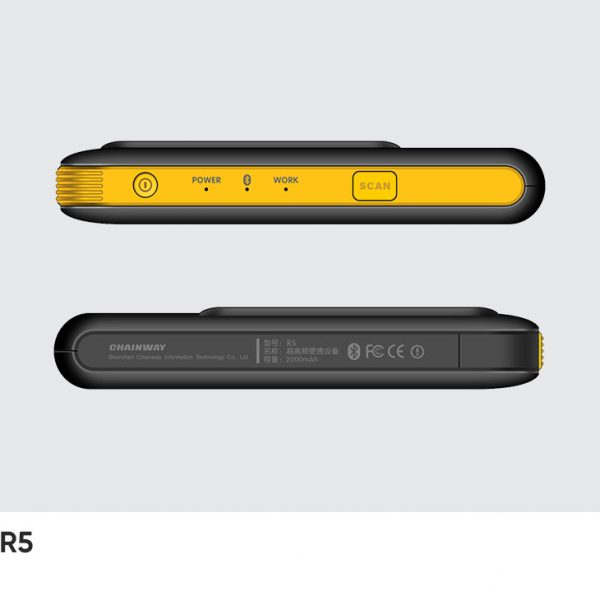

| Keypad | ON/OFF, SCAN |
| Indicator LED | Red indicator will be ON when charging Green indicator will be ON when device has been fully charged Blue indicator will be ON when battery is higher than 20% Blue indicator will flash when battery is lower than 20% Bluetooth is not paired when bluetooth indicator is OFF Bluetooth is paired when bluetooth indicator is ON |

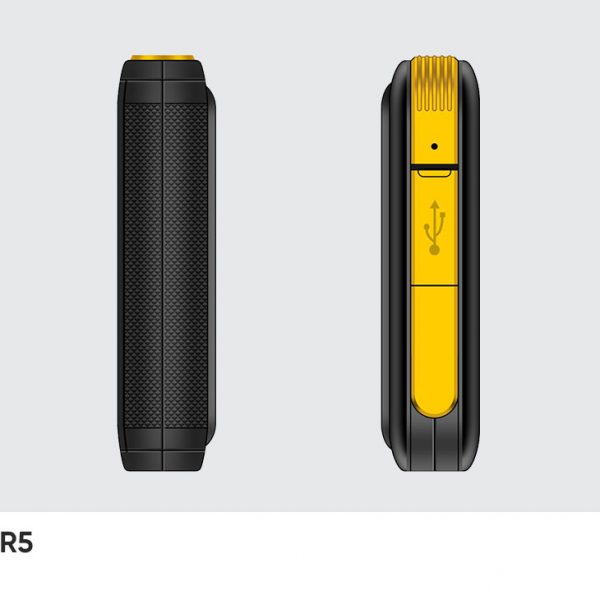

| Port | USB Type C |
| Charging Current | 5 V / 1.5 A |
| Charging Duration | 2 hours |
| Communication | |
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 |
| USB Type C | USB connection to realize data transfer |
| Developing Environment | |
| SDK | Android / iOS SDK Supported |
| User Environment | |
| Operating Temp. | -20 °C to +50 °C |
| Storage Temp. | -40 °C to +70 °C |
| Humidity | 5% RH – 95% RH non condensing |
| Drop Specification | 1.5 m dropping on concrete |
| Sealing | IP65 |
| UHF RFID | |
| Engine | CM710-1 module based on Impinj E710 |
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Impinj Gen2X | Supported |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular Polarized Antenna (3dBic) |
| Power | 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) |
| Fastest Read Rate | 900+ tags/sec |
| Max Read Range | 11m (Impinj MR6 tag, size 70 x 15mm) 12m (Impinj M750 tag, size 70 x 15mm) 14m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Note | * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. |
