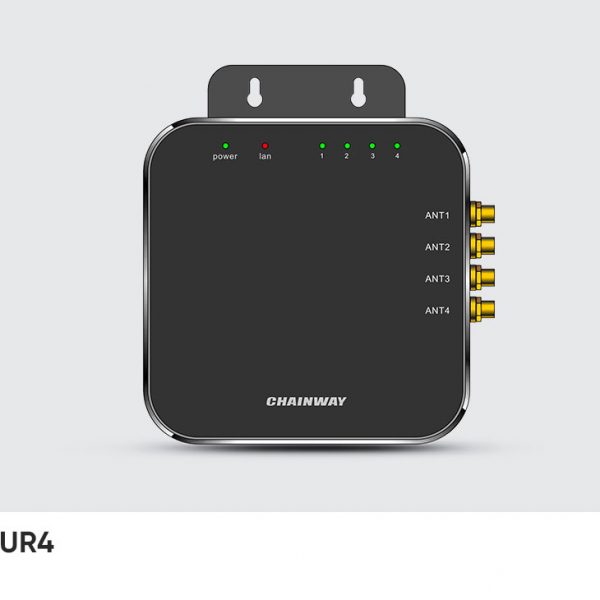

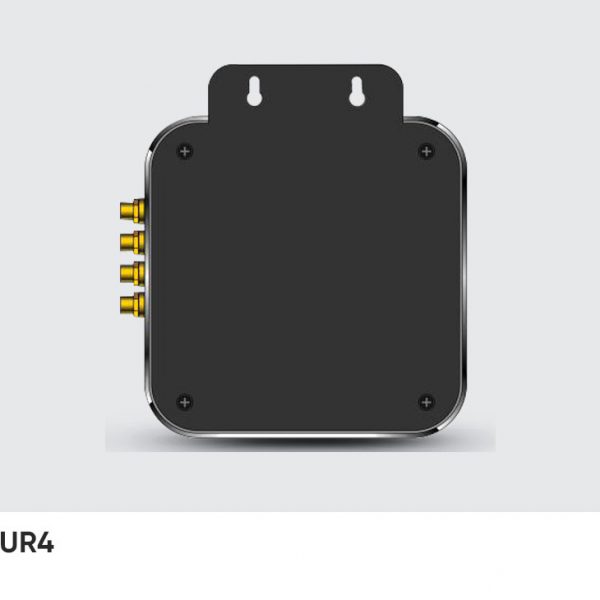

Chainway UR4 Fixed RFID Reader
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Physical Characteristics | |
| Dimensions | 102.8 mm(L) x 102.8 mm(W) x 28 mm(H) |
| Weight | 329 g / 11.6 oz.(without antenna) |
| Material | Aluminium alloy |
| Input Voltage | DC 9V – 12V |
| Standby Current | < 30mA |

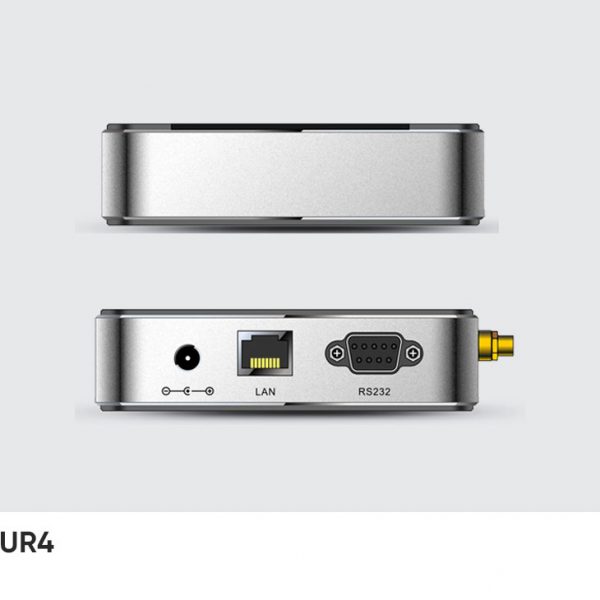

| Comm Interface | RS-232 / RJ45 |

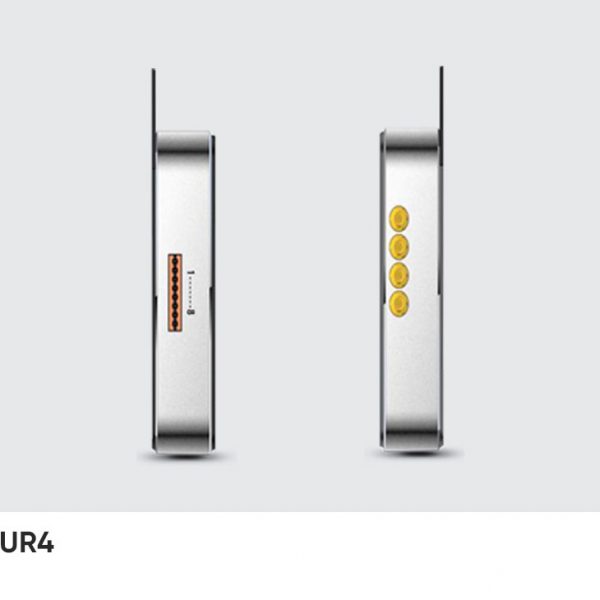

| GPIO | 2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical coupling (in reserve) |
| Baud Rate | 115200 bps |
| Cooling Mode | Air cooling |
| Work Current | 800mA +/-5% @ DC 12V Input |
| Ethernet interface | 10/100 Base-T Ethernet (RJ45) |
| Power Supply | POE (802.3af 13W) (Optional) POE+ (802.3at 25.5W) (Optional) |
| Developing Environment | |
| SDK | Windows, Linux, Android |
| User Environment | |
| Operating Temp. | -25 °C to 65 °C |
| Storage Temp. | -40 °C to 85 °C |
| Humidity | 10%- 95% |
| UHF RFID | |
| Engine | CM710-4 module based on Impinj E710 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Impinj Gen2X | Supported |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Antenna | Supporting a variety of antennas, such as 6dBic, 9dBic |
| Output Power | 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, support +10~+33dBm adjustable, for Latin America, etc.) |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -84 dBm |
| RSSI | Supported |
| Ambient Temp Monitor | Supported |
| Fastest Read Rate | 900+ tags/sec |
| Antenna Detector | Supported |
| Antenna Port | 4 channel 50Ω SMA port |
