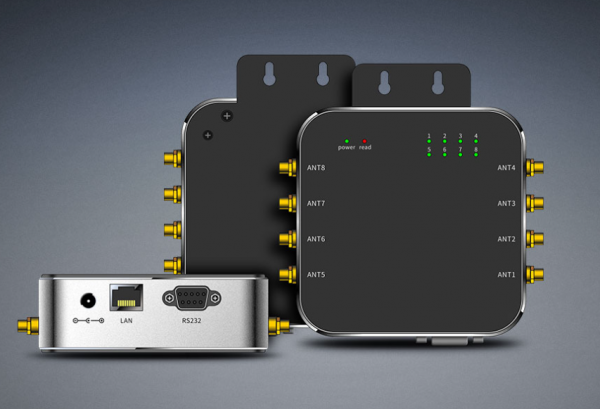

Chainway UR8 Fixed UHF RFID Reader
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Physical Characteristics | |
| Dimensions | 102.8 mm(L) x 102.8 mm(W) x 34.2 mm(H) |
| Weight | 450 g / 15.87 oz. (without antenna) |
| Material | Aluminium alloy |
| Input Voltage | DC 9V – 12V |
| Standby Current | < 30mA |

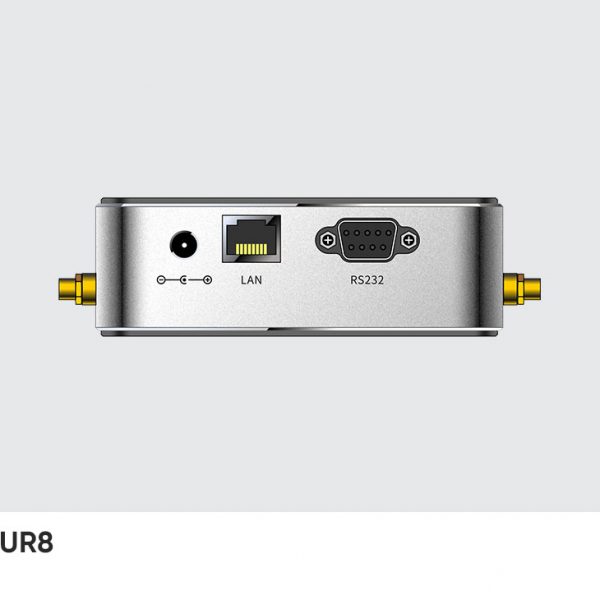

| Comm Interface | RS-232 / RJ45 |
| Baud Rate | 115200 bps |
| Cooling Mode | Air cooling |
| Work Current | 800mA +/-5% @ DC 12V Input |
| Ethernet interface | 10/100 Base-T Ethernet (RJ45) |
| User Environment | |
| Operating Temp. | -13℉ to 149℉ / -25 °C to 65 °C |
| Storage Temp. | -40℉ to 185℉ / -40 °C to 85 °C |
| Humidity | 5% RH to 95% RH (non condensing) |
| UHF RFID | |
| Engine | CM510-8 module based on Impinj E510 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Fastest Read Rate (circular polarization) | 550+ tags/sec |
| Output Power | 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, support +10~+33dBm adjustable) |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -78dBm |
| RSSI | Supported |
| Ambient Temp Monitor | Supported |
| Antenna Detector | Supported |
| Antenna Port | Supporting a variety of antennas, such as 6dBic, 9dBic |

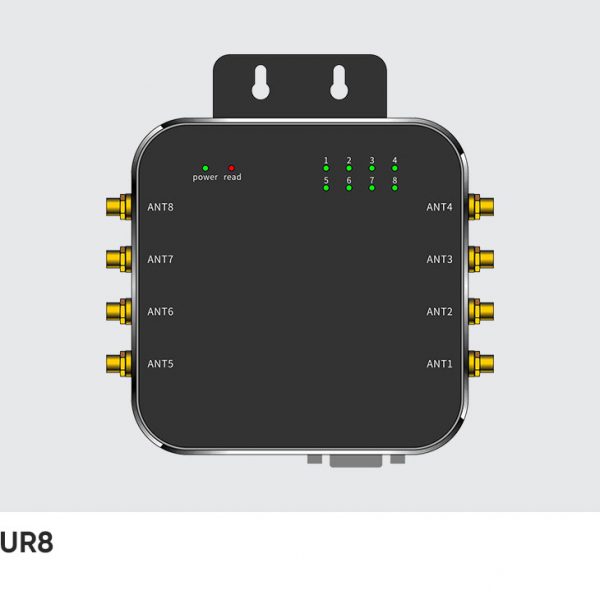

| Communication Mode | 8 channel 50Ω SMA port |
