Product details

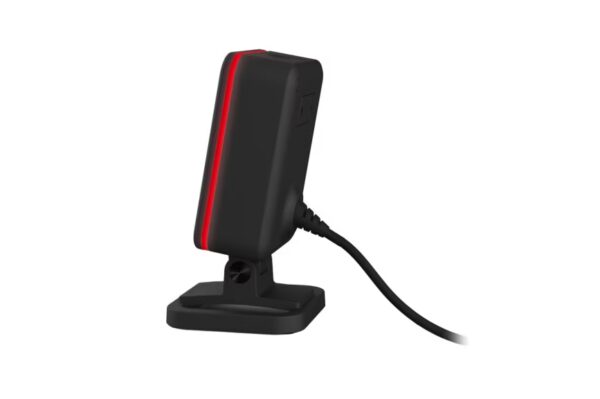

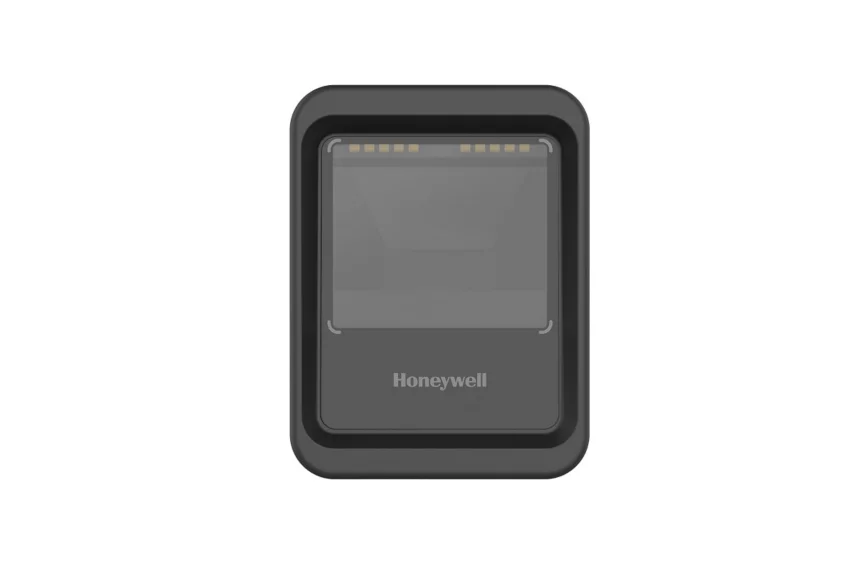

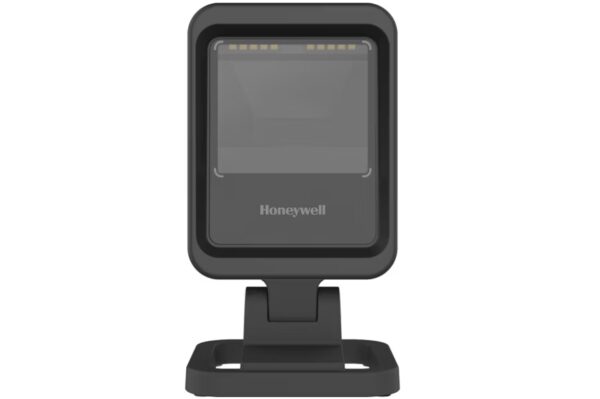

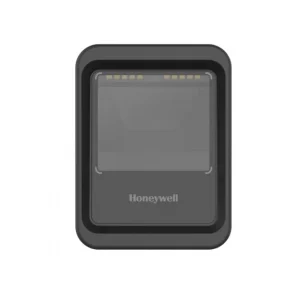

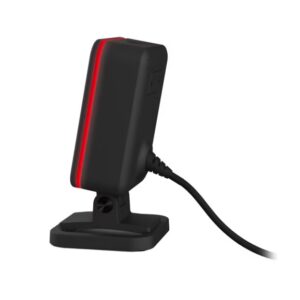

The Honeywell Genesis™ XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity. Featuring extreme performance “XP” scanning technology in a flexible design that fits multiple workflows. The compact, modern design features clean lines and warm, white illumination, disinfectant ready housing, and a small footprint that is ideal for contemporary retail and healthcare environments.
Scanning Specifications
- Skew
- 65°
- Scanning Range
- Standard range (SR)
- Scan Pattern
- Area Image, 1,280 x 800 pixel
- Print Contrast
- 20% minimum reflectance difference
- Pitch
- 65°
- Motion Tolerance
- 400 cm/s for 13 mil UPC at optimal focus
- Maximum Brightness
- 100,000 Lux
- Decode Capability
- 1D/2D
Hardware
- Host System Interface
- USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)
- Engine Type
- 1D/2D
Environmental
- Storage Temperature Range
- -40° F – 158° F
- -40°C to 70°C
- Operating Humidity
- 0% to 95% relative humidity, non-condensing
Others
- Application
- Hands-Free, Presentation Scanning
- Form Factor
- Hands Free
- Weight range
- 12 oz keg
- 340 g keg
- Overall Width
- 3.2 in
- 80 mm
- Overall Height
- 145 mm (with stand) inch
- 5.7 in (with stand) inch
- Overall Depth
- 1.6 in inch
- Operating Current
- 2.0 W (400 mA @ 5V)
- Input Voltage
- 5.0V DC Typical
- Operating Temperature
- 0°C to 50°C
- 32° F – 122° F
- Warranty Duration
- 3 Years
- Brand
- Honeywell
- Scan Distance
- Standard Range (0-1m)
- Power Connector Type
- Corded
- IP Rating
- IP52
- Connectivity
- Corded
