NW 55″ FULL OUTDOOR KIOSK IP55-3000 nits

Product Features
1.The whole machine adopts a highly integrated modular design and standardized electrical design. The
working status is clear at a glance and quick maintenance can be achieved.
2.Super long service life, 7*24 hours uninterrupted operation, up to more than 50,000 hours.
3.IP55 waterproof grade, using full outdoor metal paint, moisture-proof, UV-resistant and anti-oxidation.
4.Adopt high-brightness industrial-grade LED backlight, the brightness can reach 3000cd/㎡, plus5mm
ultra-clear tempered glass, the image is clearly visible under strong light.
5.It adopts an intelligent and precise temperature control system, which not only reduces heat and saves
energy, but also does not affect the display effect.
6.Automatic ambient light sensing, high temperature protection, lightning protection, leakage protection,
overvoltage and overload, waterproof and anti-theft protection, etc.
7.Product Specifications Support 1920*1080
Performance parameters

Instalation: floor model
Appearance Color White/Black
The whole machine shell is made of 1.5MM galvanized sheet,
and the surface is sprayed with Aksu outdoor powder
Glass: water proof structure, 5 mm ultra-clear tempered glass, Three-layer composite sealing strip, no water ingress at multiple angles
Defend Theft: Three-level door lock protection, hidden screw design, dust-proof, Internal filter device, Anti-rust and anti corrosion
High strength galvanized steel plate, outdoor powder coating
Shell Technology Laser cutting + bending + welding + polishing + high temperature painting
Protection level: IP55
Touch screen
(optional) No Touch
LCD screen, Panel size 55 inches
Panel Type: TFT-LED, LCD
Display Scale: 16:9

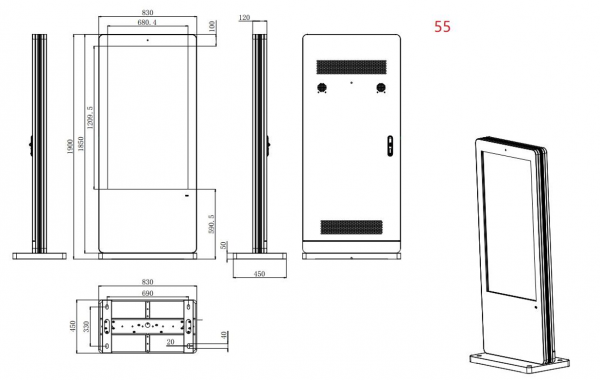

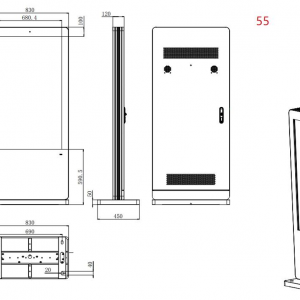

Display size: 55 inches: 680.4*1209.5mm
Viewing Angle: 178/178/178/178
Response time: 5ms
Operating frequency 60Hz
Resolution 1920(RGB)×1080(FHD)/(4K optional)
Contrast 1500:1
Brightness 3000cd/m2
Color 16.7 M
Service life More than 50,000 hours
Configuration
Memory 8G
storage 256G
system: Windows
Interface
USB2.0 interface ×2
Audio Output Amplifier output, can directly drive 2*10W/8Ω speakers
SD Card ×None
Network port ×1
Protection
water proof Three composite sealing strips, no water ingress at multiple angles
Anti-leakage 3C certified brand leakage protector protects the machine and surrounding personal safety
Lightning protection Unique lightning protection device, no fear of lightning
Dust-proof Internal filter device
Explosion-proof 5mm ultra-clear tempered glass, explosion-proof
Anti-glare 5mmAR anti-reflective insulation glass, AR coating (optional)
Waterproof
Speaker trumpet 8 ohm 10W high power speaker is not afraid of water ingress and the sound is loud and clear
Time switch
This time-controlled switch uses an eight-bit microprocessor chip, which is directly packaged in PCB board, peripheral use chip components, surface mounting,
LCD liquid LCD display, high-power relay output; replaceable battery.
Preset 20 per day or week
On/off control at different times, also with arbitrary cycle timing function
It also has the functions of key lock, daylight saving time and 12/24 hour system conversion.
The machine has a built-in rechargeable NiMH battery as a backup power source.
Even without power supply, the time display and stored data can still be maintained.
All data are for more than 9 months.
Lightning protection device
Outdoor photovoltaic power supply lightning protection module This surge protector is mainly used for lightning or other transient overvoltage surge protection of photovoltaic power distribution systems. The product has built-in overheat and overcurrent protection for high-voltage DC power supplies, and can provide Class C surge protection for photovoltaic power distribution systems. The product adopts 35mm DIN rail installation, and the module can be replaced independently, which is easy to install and maintain. It has a remote signal alarm interface (dry contact) to facilitate remote monitoring of the surge protector status.
Leakage protector
Prevent leakage and use safely, comply with national safety regulations
Temperature control
Built-in temperature probe sensor device can effectively identify temperature changes inside the machine. Temperature control display system, temperature changes can be displayed on PCB LED. Intelligent control of fan speed, can be adjusted intelligently according to temperature changes, temperature
control display board has fan monitoring indicator light; full name monitoring when working.
Dust and moisture proof Device
The 3M high air volume filter (≤90Pa 2.5m/s) is used. The product complies with UL safety certification and EU, ROHS environmental protection requirements. It can effectively prevent foreign objects from entering the whole machine in severe weather such as wind, sand, fog and haze. Clean the air inlet and filter once every 6 months, and replace the secondary air filter once every 12 months.
Brightness Control
The built-in photosensitive probe can automatically adjust the brightness of the LCD display screen according to the intensity of outdoor light. The LED backlight control and sensing core technology improves the sensitivity of light transmission and effectively identifies, controls and adjusts the brightness of the LED backlight.
LED backlight
High brightness LCD screen, brightness reaches 1500-3000 cd/m2; (default 2000cd/m2)
It uses LED backlight with a lifespan of 50,000 hours, is environmentally friendly and energy-saving, has high dynamic contrast, and displays clearer images;
Combined with the heat dissipation solution, the temperature is precisely controlled, and the display screen works 7*24 hours without brightness attenuation
Cooling System (fan)
Intelligent air cooling system for heat dissipation
Fan speed control board intelligently controls wind speed to save energy and electricity
It can meet the requirements of -10°C to 55°C environment without blackening the LCD screen
Automatic temperature sensing to ensure that the internal temperature of the machine is between 5°C and 25°C (ensuring that the internal ambient temperature of the machine is between -5 and 55 degrees for normal use) Patented cooling system Ensure that the LCD screen does not blacken under direct sunlight Built-in temperature probe sensor device, effectively identifying temperature changes inside the machine Intelligently control the fan speed and adjust it intelligently according to temperature changes
The temperature control display panel has a fan monitoring indicator light to monitor the entire process during operation Industrial grade refrigeration fan
Unique noise reduction function of the fan
Alkaline all-round cleaning; some surfaces need to be passivated.
Anti-rust measures After cleaning, spray anti-rust paint on the base Spraying Spray outdoor special powder (to ensure that there will be
no paint peeling or other undesirable phenomena for 5-8 years)
Air cooling – 10°C to +55°C
Operating temperature
Cooling – 40°C to +55°C (cooling and heating)
Operating humidity 5% to 90%
Storage temperature —20°C to 65°C
Storage humidity 10%～85%
Power Management: Compliant with VESA DPMS standard
Input voltage: AC110-240V (default 220V)
Normal working power consumption: ≤300W power
Standby power consumption: ＜3W
Stereo sound: Rated power: 10W×2 Peak power: 15W×2
Quality Standards: ISO9001
Environmental standards
Comply with international environmental standards
Power Management
Compliant with VESA DPMS standard
