NWM5 ALL IN ONE POS WINDOWS BASED
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Processors | Intel® N97(6M Cache, up to 3.60 GHz) | Intel® Core™ i3-1215U(10M Cache, up to 4.40 GHz) Intel® Core™ i5-1235U(12M Cache, up to 4.40 GHz) |
| Memory | 8GB Standard, DDR4 3200MHz(Max.32GB) | |

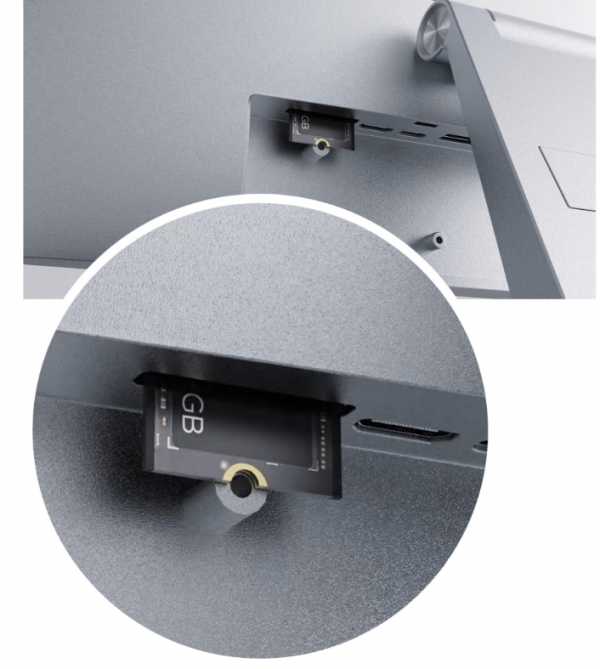

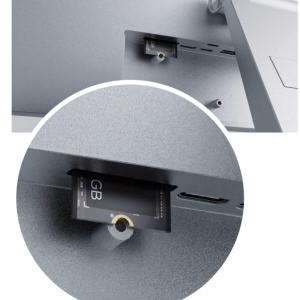

| Storage | 256GB Standard, M.22280 D2-M(Max.1TB) | |
| Operating Systems | Windows 10/Windows 11/Linux | |
| LCD | 15″ TFT LCD | |
| Resolution | 1024 x 768 | |
| Brightness | 350 cd/m² | |

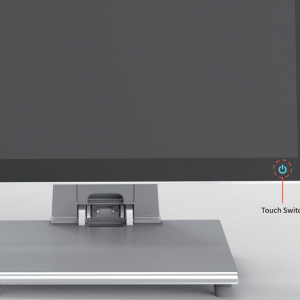

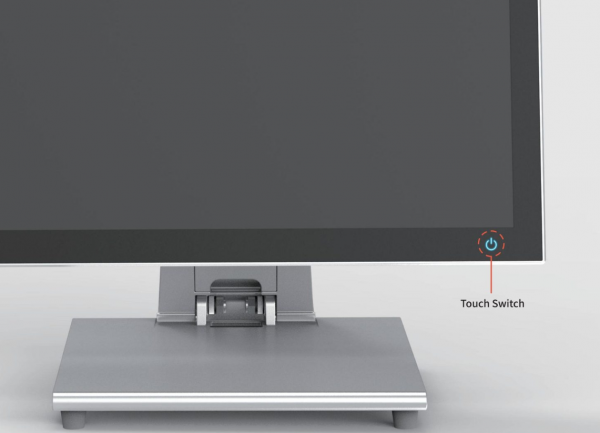

| Touch | Multi-point Projected Capacitive Touch Screen | |
| Speaker | 2 x 2W(Stereo) | |

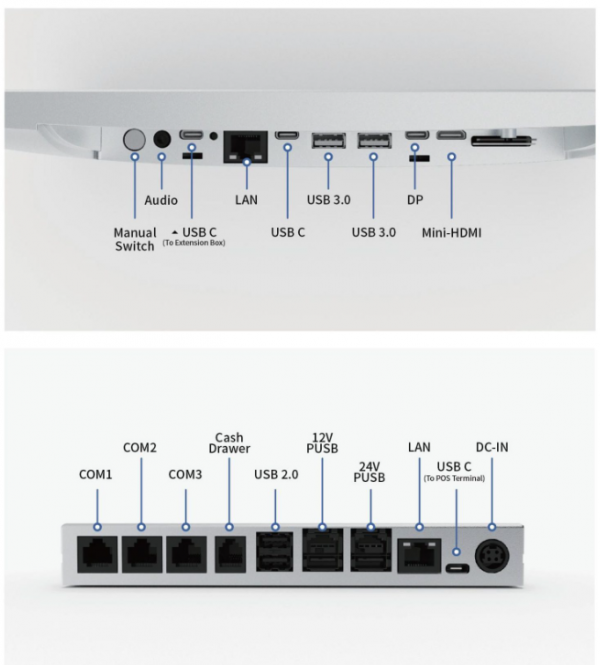

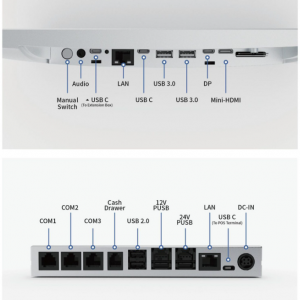

| COM | 3 x RS232 RJ50(Extension box) | |
| USB | 1 x USB-C 2 x USB3.0 2 x USB2.0(Extension box) 1 x 12V PUSB(Extension box) 1 x 24V PUSB(Extension box) 1 x USB-C(Extension box) |
|
| LAN | 1 x Realtek® 1Gbps PCle Ethernet Controller, Rj45 1 x Realtek® 1Gbps PCle Ethernet Controller, RJ45(Extension box) |
|
| WiFi/BT | 802.11a/b/g/n/ac, 802.11ax optional/BT4.0 | |
| Cash Drawer | 1 x RJ11(Extension Box) | |
| Video | 1 x MINI-HDMI: Resolution up to 4096 x 2160 @24Hz 1 x DP(Non-standard definitions): Resolution up to 1920 x 1200 @60Hz |
|
| Audio | 1 x Line-out&Mic-in 2-in-1 | |
| Power Input | 1 x 12V Power Input Connector(USB-C) 1 x 24V Power Input Connector(4Pin DIN Plug, Extension box) |
|

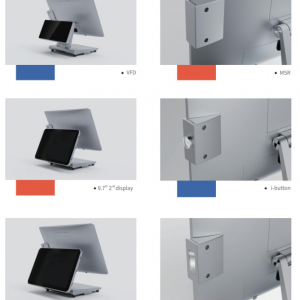

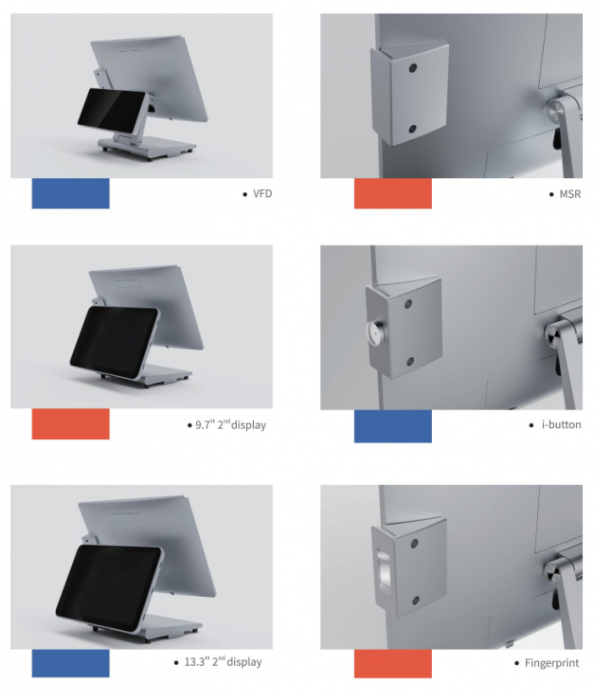

| Customer Display | VFD, 20 Columns x 2 Lines 9.7″ 2nd display(1024×768), Optional Touchscreen |
|
| Peripherals | 2D Barcode Scanner(USB) Fingerprint Reader(USB) Dallas i-Button Reader(USB) Magnetic Stripe Reader(USB,Support 1&2&3 Track) |
|

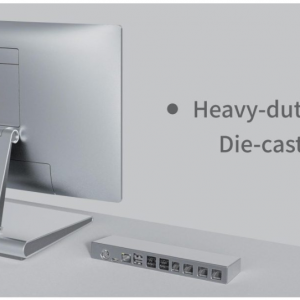

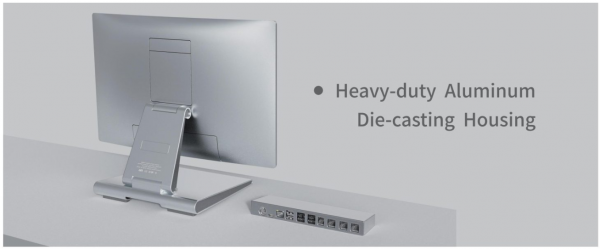

| Housing Material | Aluminum Die Casting Alloys | |

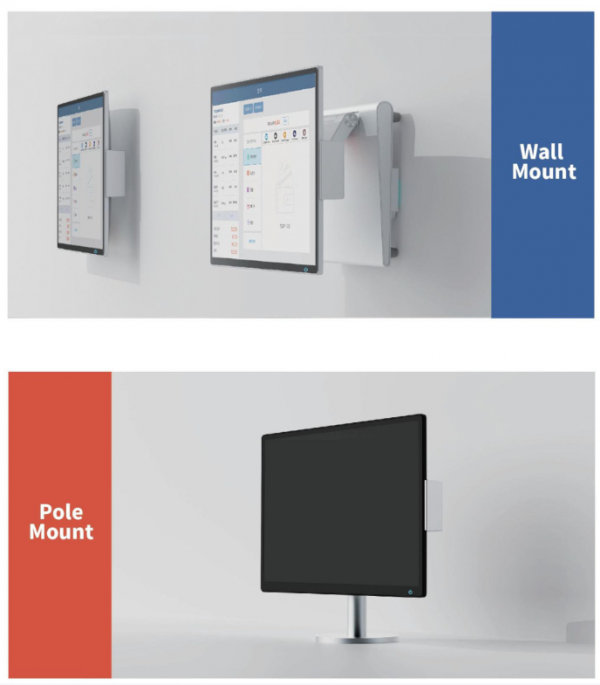

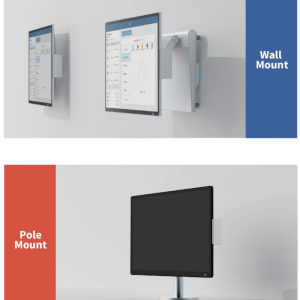

| VESA Compatibility | Support both 75 x 75 (mm) and 100 x 100 (mm) | |
| Color | Black/Silver | |
