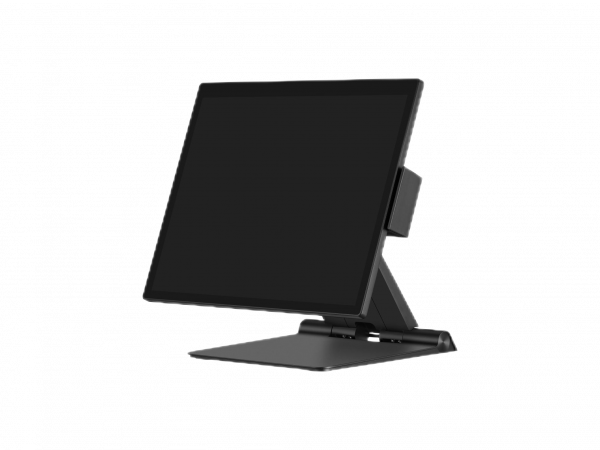

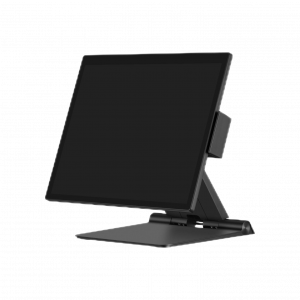

NWM6 ALL IN ONE POS WINDOWS/ANDROID
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Android | Windows | |
| Processors | RK3568 4 x Cortex-A55 up to 2.0GHz RK3588 4 x Cortex-A76 + 4 x Cortex-A55 up to 2.2GHz RK3576 4 x Cortex-A72 + 4 x Cortex-A53 up to 2.2GHz |
Intel® N97 (6M Cache, up to 3.60 GHz) Intel® Core™ i3-1215U(10M Cache, up to 4.40 GHz) Intel® Core™ i5-1235U(12M Cache, up to 4.40 GHz) |
| Memory | DDR4 4GB On Board(Max.8GB) | 8GB Standard, DDR4 3200MHz(Max.32GB) |
| Storage | 64GB Built-in eMMC(Max.128GB) | 256GB Standard, M.22280 D2-M(Max.1TB) |
| Operating Systems | Android 11.0(RK3568) Android 12.0(RK3588) Android 14.0(RK3576) |
Windows 10/Windows 11/Linux |
| LCD | 15″ TFT LCD | |
| Resolution | 1024×768 | |
| Brightness | 350 cd/m² | |
| Touch | Multi-point Projected Capacitive Touch Screen | |
| Speaker | 2 x 2W(Stereo) | |
| COM | 1 x DB9(RS232) | 2 x RJ50(RS232) |
| USB | 5 x USB2.0 | 4 x USB2.0, 4 x USB 3.0 |
| LAN | 1 x RJ45, Gigabit Ethernet | 1 x RJ45, Gigabit Ethernet |
| WiFi/BT | 802.11a/b/g/n/ac, 802.11ax optional/BT4.0 | |
| Cash Drawer | 1 x RJ11 | 1 x RJ11 |
| Video | 1 x HDMI | 1 x HDMI |
| Audio | 1 x Line-out&Mic-in 2-in-1 | 1 x Line-out&Mic-in 2-in-1 |
| Customer Display | VFD, 20 Columns x 2 Lines 9.7″ 2nd display(1024×768), 15″ 2nd display(1024×768), Optional Touchscreen |
|
| Peripherals | 5MP Camera(USB) 2D Barcode Scanner(USB) Fingerprint Reader(USB) Dallas i-Button Reader(USB) Magnetic Stripe Reader(USB,Support 1&2&3 Track) |
|
| Housing Material | Aluminum Die Casting Alloys | |
| VESA Compatibility | Support both 75 x 75 (mm) and 100 x 100 (mm) | |
| Color | Black | |
