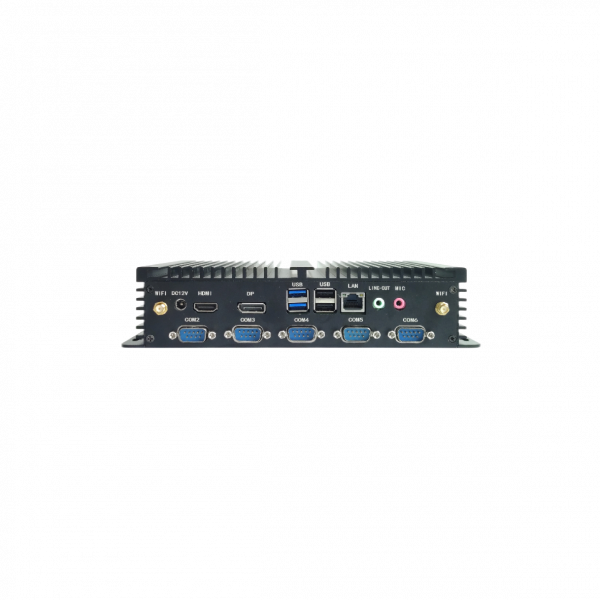

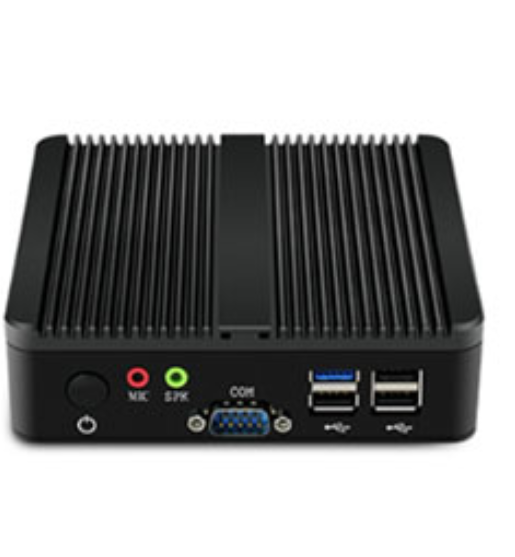

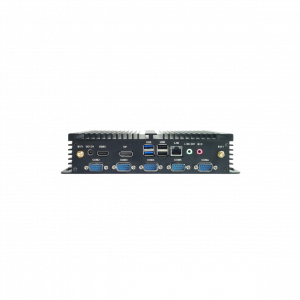

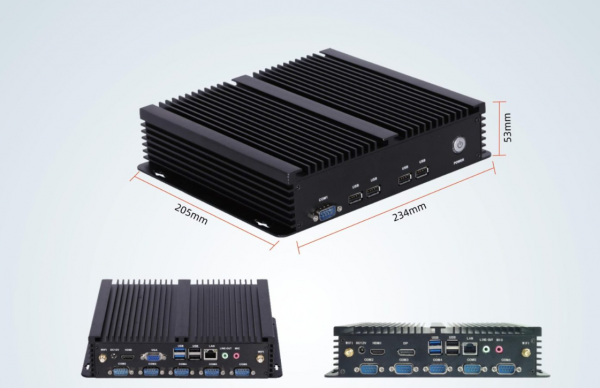

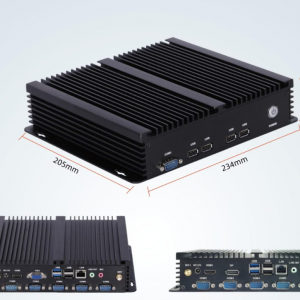

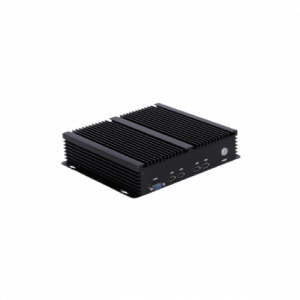

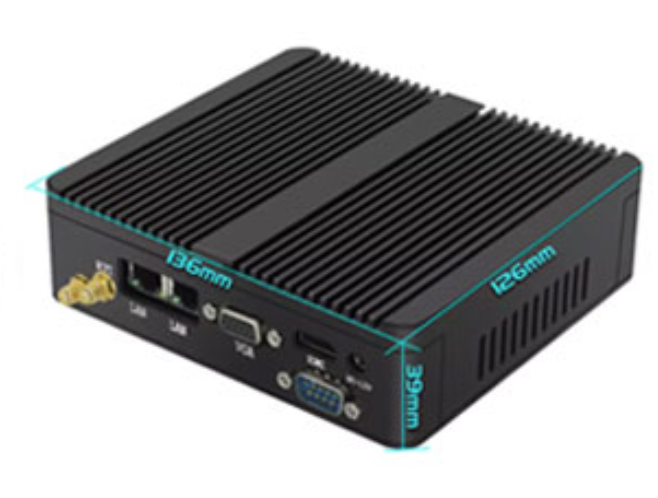

NWMK75 PC BOX ANDROID/WINDOWS BASED
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Android | Windows | |
|---|---|---|
| Processors |
RK3568 4 x Cortex-A55 up to 2.0GHz
RK3588 4 x Cortex-A76 + 4 x Cortex-A55 up to 2.2GHz RK3576 4 x Cortex-A72 + 4 x Cortex-A53 up to 2.2GHz |
Intel® N97 (6M Cache, up to 3.60 GHz)
Intel® Core™ i3-1215U(10M Cache, up to 4.40 GHz) Intel® Core’ i5-1235U(12M Cache, up to 4.40 GHz) |
| Memory |
DDR4 4GB On Board(Max.8GB)
|
8GB Standard, DDR4 3200MHz(Max.32GB)
|
| Storage |
64GB Built-in eMMC(Max.128GB)
|
256GB Standard,M.22280 D2-M(Max.1TB)
|
| Operating Systems |
Android 11.0(RK3568/Android 12.0(RK3588yAndroid 14.0(RK3576)
|
Windows 10/Windows 11/Linux
|

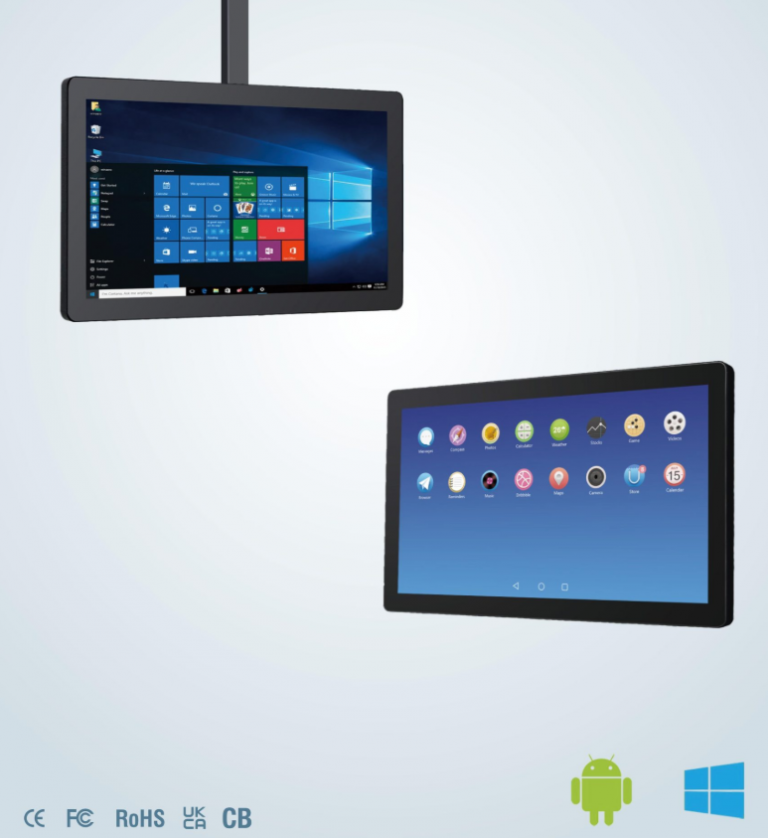

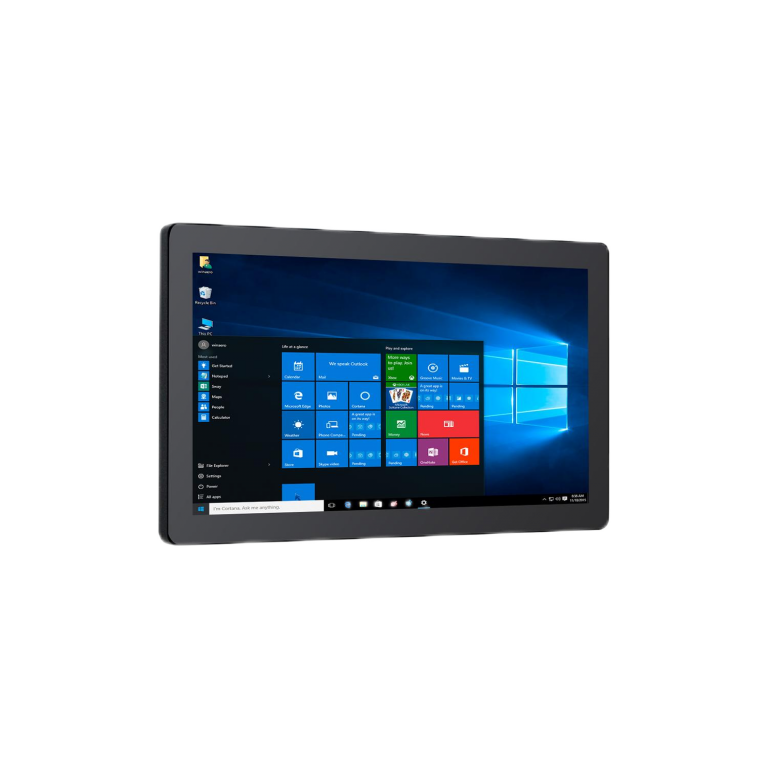

| LCD |
15″ TFT LCD/15.6″ FHD IPS LCD /18.5″ FHD IPS LCD/21.5″ FHD IPS LCD
|
|
| Resolution |
1024×768(15 1920×1080(15.6″1920×1080(18 5″/1920×1080(21.5)
|
|
| Brightness |
350 cd/m(15″/250 cd/m?(15.6″/280 cd/m?(18.5″/300 cd/m?(21.5″)
|
|
| Touch |
10-points projected capacitive touch
|
|
| Customer Display |
VFD,20 Columns x2 Lines
9.7″ 2nd display(1024×768), 11.6″ 2nd display(1920×1080), 15″ 2nd display(1024×768), 15.6” 2nd display (1920×1080) Optional Touchscreen |
|
| Peripherals |
2D Barcode Scanner
Fingerprint Reader(USB) Dallas i-Button Reader(USB) Magnetic Stripe Reader(UsB,Support 1&2&3 Track) |
|
| Wall Mount&Pole Mount |
VESA-Compatible, Support both 75 x 75 (mm) and 100 x 100 (mm)
|
|
| Speaker |
2 x2W(Stereo)
|
|
| WIFVBT |
802.11a/b/g/n/ac, 802.11ax optionalBT4.0
|
|
