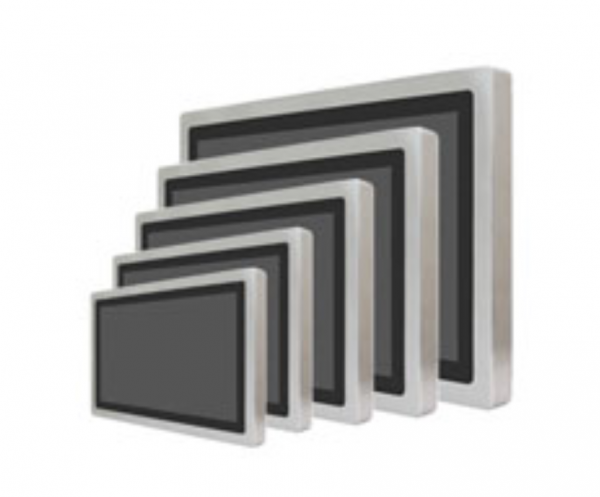

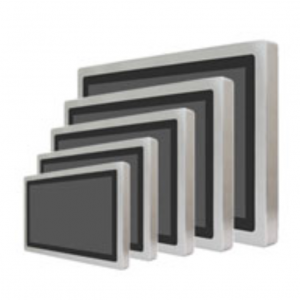

NWMTIPSS 10.1″-24″ Full IP65/67 Stainless Steel Panel PC
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
Features:
Full IP65 sealed stainless steel 304 enclosure, true flat design, round corner design.
Air valve design, keep air pressure balance inside and outside, anti fogging.
Industrial LCD panel, wide viewing angle, high brightness, true color.
True flat multi-touch P-Cap or single-touch Resistive with high sensitive & fast response.
Optical bonding technology to enhance display readability.
Embedded or Core i3/i5/i7 CPU fanless design, 7×24 continuous operation.
SUS304 or SUS316 stainless steel with acid-resistant, alkali-resistant, corrosion-resistant.
Touch Screen Parameters
| Touch Screen: | Capacitive Touch/ Resistive Touch |
| Response Time: | 5ms |
| Touch Points: | Capacitive 10 points Multi-touch/ Resistive Single-touch |
| Touch Materials: | Finger, Stylus |
| Scanning Frequency: | 200 Hz |
| Scanning Accuracy: | 4096×4096 |
| Communication Mode: | Full Speed USB 2.0/3.0 |
| MTBF: | 5000 Million Times |
| Operating Current: | 180Ma/DC+5V |
| Anti-light Interference: | Under Sunlight and Other Lights |
| Touch Data Output: | Coordinate Output |
| Hardness: | Mohs 7 Explision-proof Tempered Glass |
| Operating System: | Windows XP/7/8/10/Linux/MAC/Android |
| Driver: | Free Driver, Plug and Play |
LED Screen Parameters
| Screen Type: | LED Backlight, A-type |
| Refresh Frequency: | 60Hz |
| Viewing Angle: | 89°/89°/89°/89° (R/L/U/D) |
| MTBF: | 50,000 hrs |
Power Supply Parameters
| Input Power: | 110-240V AC 50/60Hz |
| Power Consumption: | 60W ~ 90W |
Working Environment
| Operating Temperature: | -10°C ~ 60°C |
| Operating Humidity: | 10% ~ 80% |
| Storage Temperature: | -20°C ~ 80°C |
| Storage Humidity: | 5% ~ 90% |
Computer Configuration
| Program: | Touch Monitor | Android | Standard | Deluxe |
| Chip: | Industrial Driver Board | RK3368/RK33288/RK3399 | Intel Celeron Quad Core J1900 | Intel Core i3/i5/i7 |
| Memory: | – | 2GB/4GB | 2GB/4GB/8GB/16GB | |
| Storage: | – | 8GB/16GB/32GB | SSD 32GB/64GB/128GB/256GB/512GB, HDD 500GB/1T | |
| Graphics: | – | Android HD | Core Graphics | |
| Resolution: | – | 720P/1080P | ||
| OS: | – | Android 7.1 | Windows XP/7/8/10/Linux/MAC | |
| Network: | – | Gigabit Network Card; Wireless Module 802.11a/b/g/n | ||
