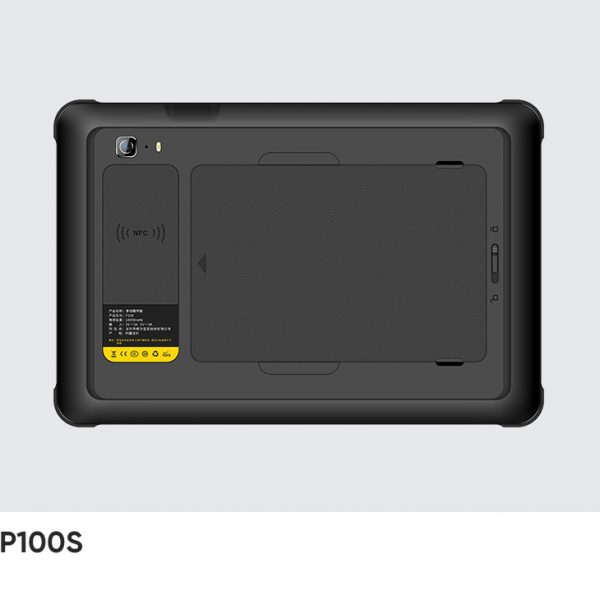

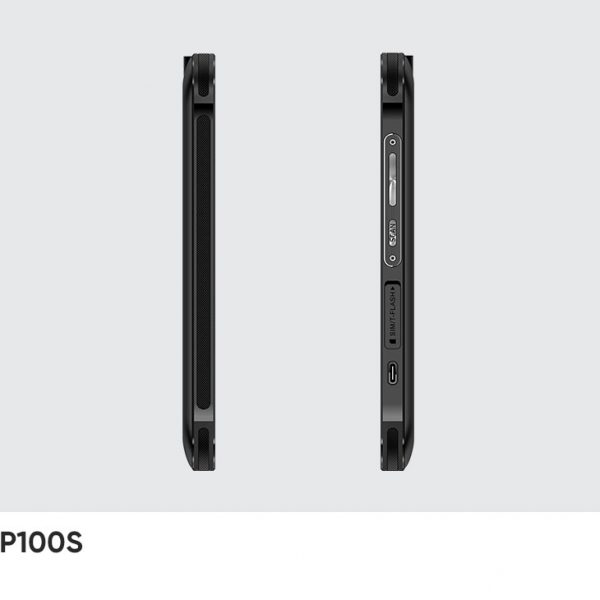

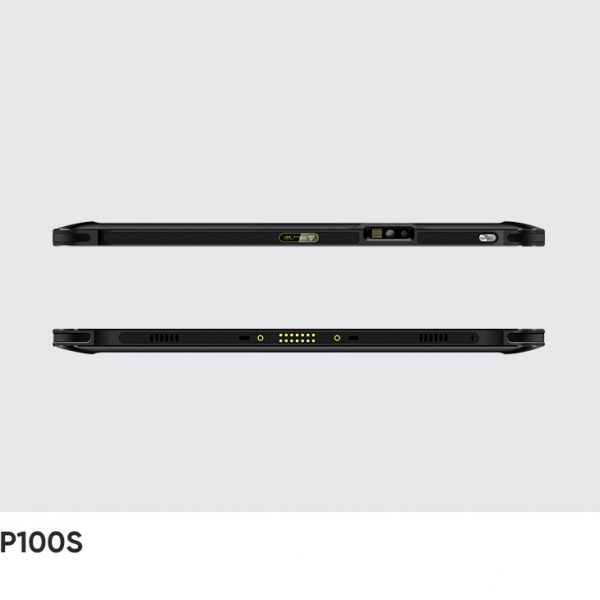

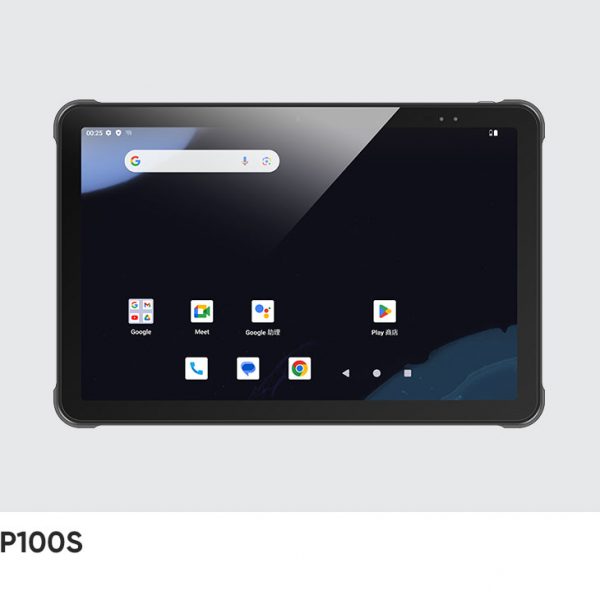

P100S Chainway Industrial Tablet 10.95″, Android 14
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Physical Characteristics | |
| Dimensions | 263.5 x 175.0 x 13.5 mm / 10.37 x 6.89 x 0.53 in. (for standard version) |
| Weight | 802g / 28.29 oz. (for standard version) |
| Display | 10.95″, 1920×1200 |
| Touch Panel | Corning Glass, multi-touch panel, gloves and wet hands supported |
| Power | 10000mAh removable main battery with meter, support fast charge |
| Expansion Slot | 1 PSAM card (optional); 1 slot for Nano SlM card, 1 slot for Nano SlM /TF card |
| Interfaces | USB 3.0 Type-C, OTG, support USB Type-C Digital Earphone |
| Audio | 2 microphone, 2 speakers |
| Keypad | 1 scan key, 1 power key, 1 volume keys (+/-), 2 virtual keys |
| Communication | |
| WLAN | Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band; Wi-Fi 6E (optional) |
| WWAN | 2G: GSM:B2/B3/B5/B8 3G: WCDMA:B1/B2/B4/B5/B8 4G: TDD LTE: B34/B38/B39/B40/B41 190M FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/ B18/B20/B28ab |
| Bluetooth | Bluetooth V5.2, support Bluetooth headset |
| Vo-LTE | Support Vo-LTE HD video voice call Galileo |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo |
| Developing Environment | |
| Operating System | Android 14 |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse/Android studio |
| Performance | |
| CPU | Octa-core 2.2 GHz |
| RAM+ROM | 4GB + 64GB / 8GB + 256GB (optional) |
| Expansion | Supports up to 512 GB Micro SD card |
| User Environment | |
| Operating Temp. | -4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5% RH-95% RH (non condensing) |
| Drop Specification | MIL-STD-810H (SGS Test): Multiple 1.2 m / 3.94 ft. drops to concrete across the operating temperature range |
| Sealing | IP67 per lEC sealing specifications |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
| Barcode Scanning | |
| Scan engine | Zebra SE4100, SE55; CM60 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Codell, interleaved 2 of 5, Discrete 2 of 5, chinese 2 of 5, Codabar, Msl, Rss,etc. |
| 2D Symbologies | PDF417, MicroPDF417, composite, RsS, TLC-39Datamatrix, QR code, Micro QR code, Aztec, Maxicode;Postal Codes: Us PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KlX), etc. |
| Camera | |
| Front Camera | 5 MP |
| Rear Camera | 13 MP Autofocus with flash |
| NFC | |
| Frequency | 13.56 MHZ |
| Protocol | IS014443A/B, IS015693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (s50, s70), CPU card, NFC tags, etc. |
| Range | 2-4 cm |
| PSAM | |
| Protocol | IS07816 |
| Slots | 1 PSAM card slot |
| Note | * This function is optional |
