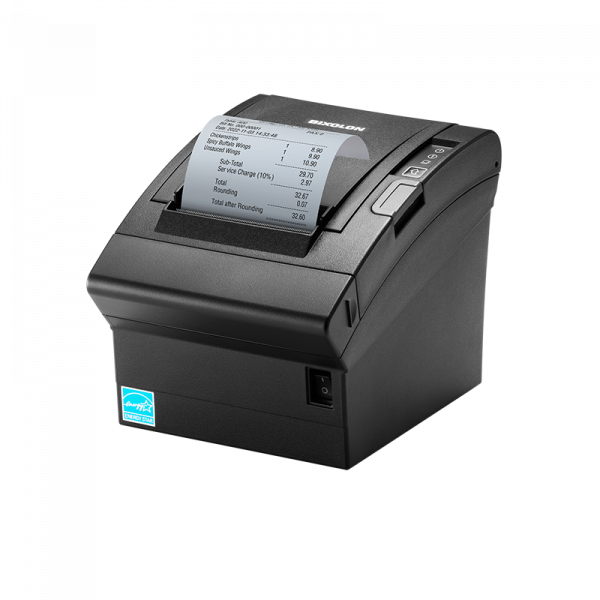

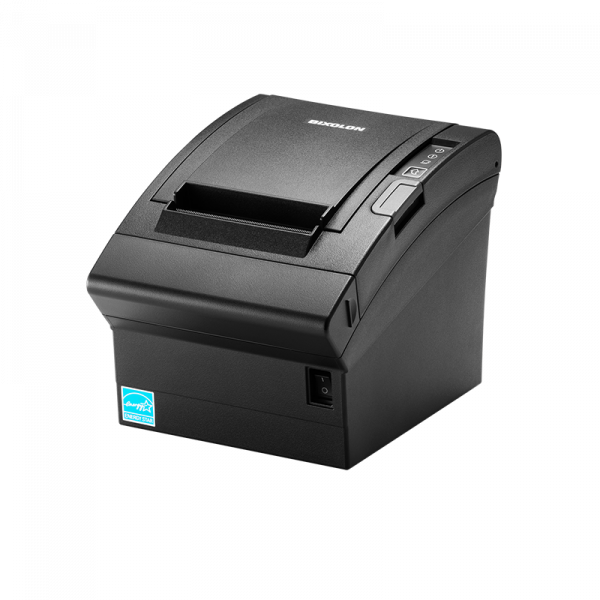

SRP-380plus is a premium, ultra-reliable, 3-inch (80 mm) Direct Thermal printing
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
Printing solution for high volume transactions within Retail and Hospitality
| Print Method | Direct Thermal |
| Print Speed | Up to 500 mm/sec |
| Print Resolution | SRP-380plus: 180 dpi SRP-382plus: 203 dpi |
| Print Width | Up to 72 mm |
| Sensor | Paper End, Paper Near End, Cover Open, Visibility Intelligence Sensor |
| Media Characteristics | |
| Media Type | Receipt |
| Media Width | 80 mm Optional 58 mm |
| Media Roll Diameter | Up to 83 mm |
| Media Thickness | 0.05 ~ 0.08 mm |

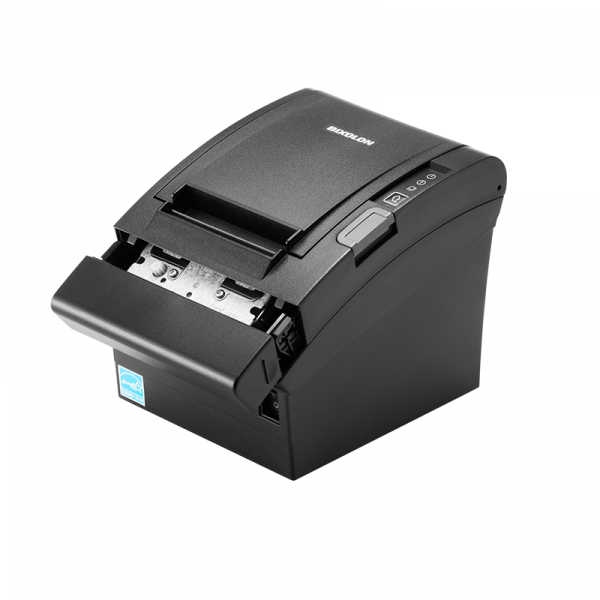

| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| Dimensions (WxLxH) | 145 x 200 x 149 mm (5.79 x 7.87 x 5.87 inch) |
| Weight | 1.57 kg (3.46 lbs.) |
| Electrical | EnergyStar Certified, External Power Adaptor 100-240 V AV, 50/60 Hz |
| Display | |
| Drawer Port | 2 ports (Via y-type adaptor) |
| Performance Characteristics | |
| Memory | 128 Mb SDRAM, 64 Mb Flash |
| NV Image Memory | 768 Kbytes (Mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |

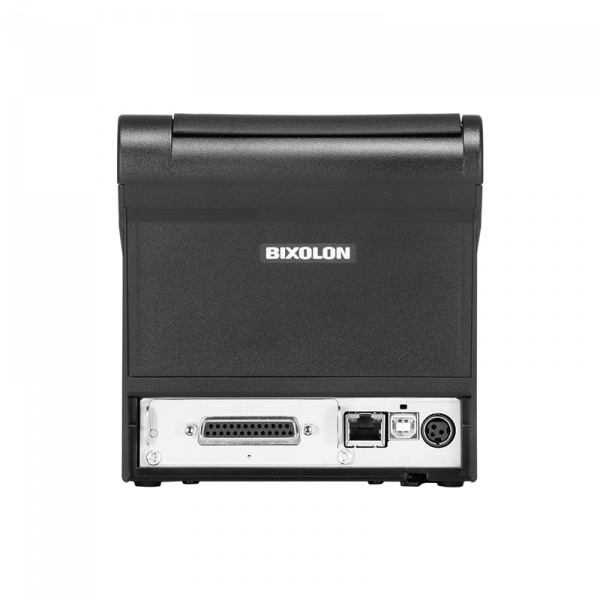

| Interface | Standard: USB 2.0 FS + Ethernet Optional: ① USB 2.0 FS + Ethernet + Serial ② USB 2.0 FS + Ethernet + Parallel ③ USB 2.0 FS + Ethernet + WLAN ④ USB 2.0 FS + Ethernet + Bluetooth ⑤ USB 2.0 FS + Ethernet +Powered USB ———————————————— WLAN: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) – WEP40/104, WPA1/2 (PSK, EAP) |
| Environment Characteristics | |
| Temperature | Operating: 0 ~ 40℃ (32 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉) |
| Humidity | Operating: 10 ~ 80% RH Storage 10 ~ 90% RH |
| Sealing | |
| Reliability | |
| Thermal Print Head (TPH) | 300 km* |
| Auto Cutter | 3 Million Cuts* |
| Software | |
| Emulation | BXL / POS |
| Driver/Utility | Windows Driver OPOS/JPOS Driver Linux/Mac CUPS Driver Virtual COM USB/Ethernet Driver Utility Program Network Auto Installer |
| Developer Tools | Android/iOS/Windows SDK Linux SDK Xamarin SDK Web Print SDK Cordova Plugin MAUI SDK Flutter Plugin React Native SDK |
| Design & Print | mPrint App (Android, iOS) |
| MDM(Optional) | BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android) |
| Fonts/Graphics/Symbologies | |
| Character Size | Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24 |
| Characters per Line | SRP-380II: Font A: 42, Font B, C: 56, KOR, CHN, JPN: 21 SRP-382II: Font A: 48 Font B, C: 64, KOR, CHN, JPN: 24 |
| Character Sets | Alphanumeric: 95 Extended Graphics: 128 x 35 page International: 32 |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | 1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, GS1-128, GS1 DataBar Stacked / Omnidirectional / Truncated / Limited / Expanded, PDF417, QR code |
| Accessories / Supplies | |
| Included in the Box | Paper, AC/DC Adapter, Cover-Cable, Power Cord, 2-inch Partition (58 mm), USB A-B Cable 1.8 m, DK Gender |
| Options & Accessories | Bulit-in SMPS (RSB-350), Vertical Stand (RVS-350), Wall Mount (RWM-350), Splash Proof Cover (RSC-350plus), External Buzzer (RBC-100), B-Melodist (RMB-100), Powered USB (0.5/1.2 m), Powered A-B USB Y Cable(1.2/4.8 m), Serial Cable (9-9/25-9 pin) |
