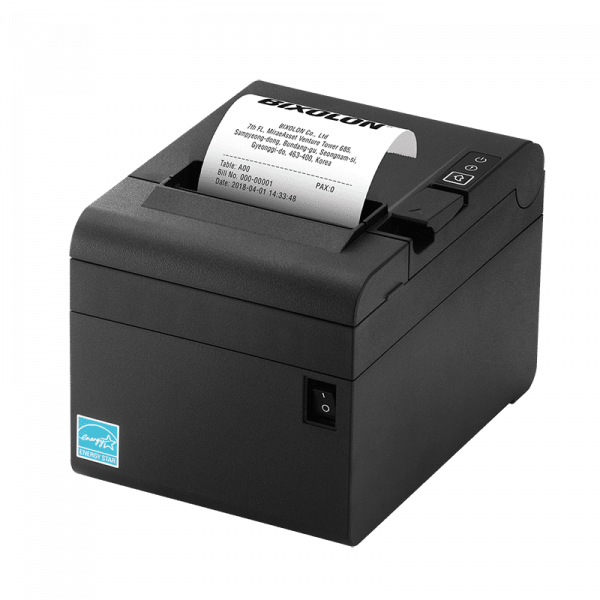

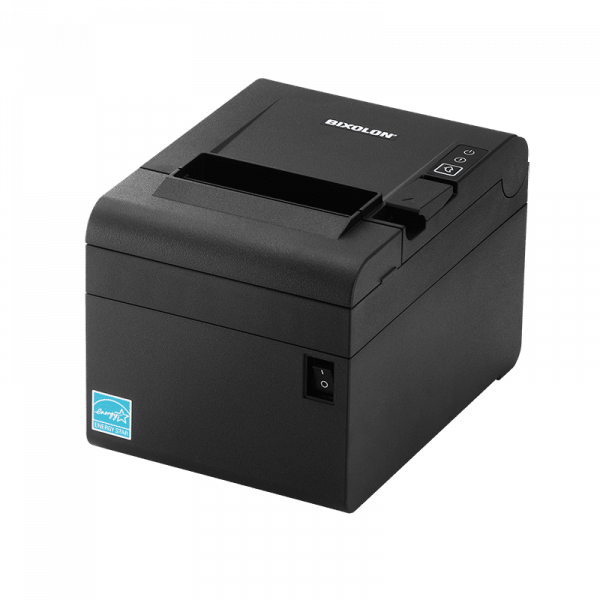

SRP-E300 is a cost-effective 3” (80mm) direct thermal receipt and ticket printer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Print Method | Direct Thermal (Top / Front Exit) |
| Print Speed | SRP-E300 : 180dpi SRP-E302 : 203dpi |
| Print Resolution | 220 mm/sec |
| Print Width | Up to 72mm |
| Sensor | Paper End |
| Media Characteristics | |
| Media Type | Receipt |
| Media Width | 80 mm |
| Media Roll Diameter | Up to 83 mm |
| Media Thickness | 0.062 ~ 0.075 mm |

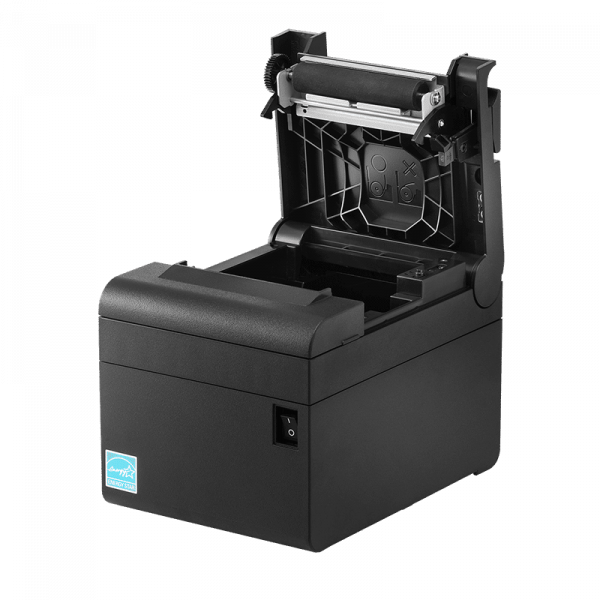

| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| “Dimensions(WxDxH)” | 132 x 182.4 x 128.5 mm (5.19 x 7.18 x 5.05 inch) |
| Weight | 1.23kg (2.71 lbs) |
| Electrical | EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz |
| Drawer Port | 2 ports (Via y-type adaptor) |
| Performance Characteristics | |
| Memory | – |
| NV Image Memory | 768 Kbytes (Mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |

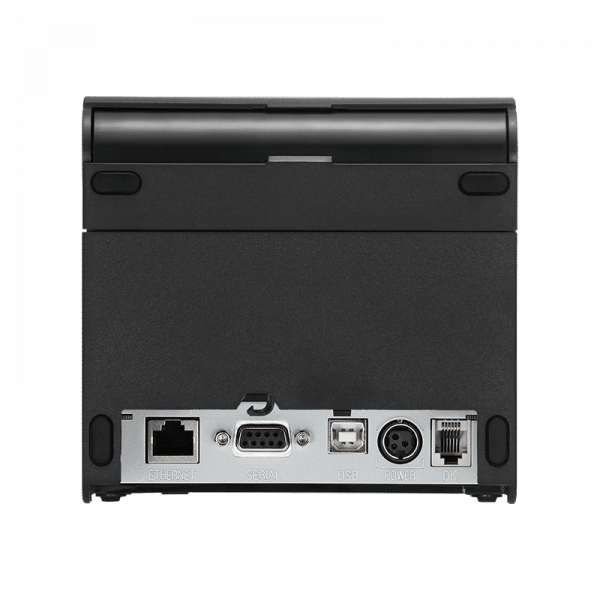

| Interface | ① USB V2.0 FS ② USB V2.0 FS + Ethernet + Serial |
| Environment Characteristics | |
| Temperature | “Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Reliability | |
| Thermal Print Head (TPH) | 150 km |
| Auto Cutter | 1.5 Million Cuts |
| *** Specified Paper | – TF50KS-E (Paper thickness: 65μm) : Nippon Paper industries Co., Ltd. – PD 150R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd – PD 160R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd. – P350 (Paper thickness: 62μm) : Kansaki Specialty Paper, Inc. (USA) |
| Software | |
| Emulation | BXL / POS |
| Driver/Utility | Windows Driver, OPOS Driver, JPOS Driver, CUPS Driver(Linux/Mac), Virtual COM USB Driver, Utility Program |
| SDK/Plugin | iOS SDK, Android SDK, Windows SDK, Linux SDK, Xamarin SDK, Chrome Plugin, Cordova Plugin |
| Application | – |
| MDM(Optional) | – |
| Fonts/Graphics/Symbologies | |
| Character Size | Font A: 12 x 24 Font B: 9 x 17 Font C: 9 x 24 KOR, CHN, JPN: 24 x 24 |
| Characters Per Line | SRP-E300: Font A: 42 Font B, C: 56 KOR, CHN, JPN: 21 SRP-E302: Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24 |
| Character Sets | Alphanumeric: 95 Extended Graphics: 128 x 35 page International: 32 |
| Graphics | Supporting user-defined fonts, graphics, formats, and logos |
| Barcode Symbologies | 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code |
| Accessories | |
| Standard | USB A-B Cable |
| Optional | External buzzer, B-Melodist |
