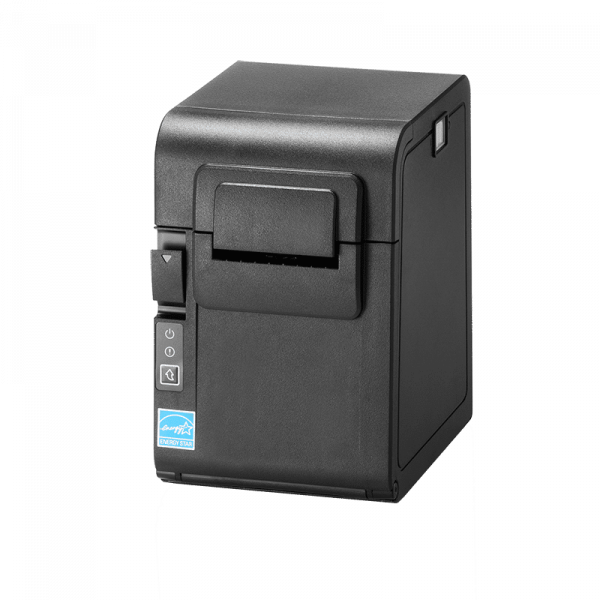

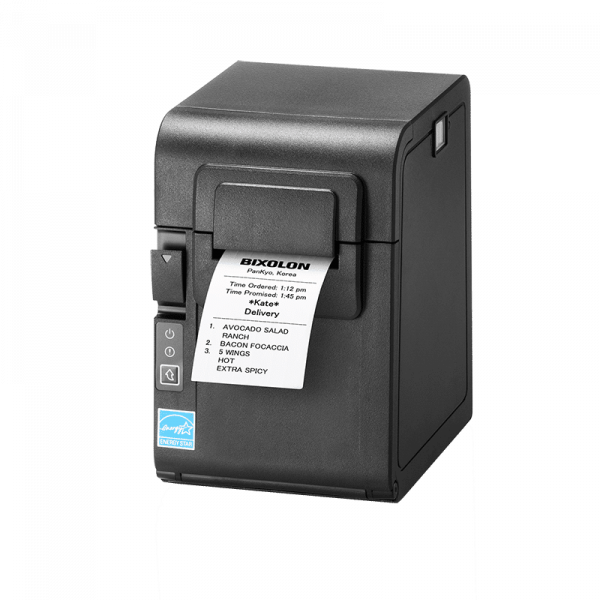

SRP-S200 is the world’s first 2-inch (58mm) direct thermal linerless label printer for re-stick media
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Print Method | Direct Thermal (Front Exit) |
| Print Speed | Up to 150 mm/sec |
| Print Resolution | 203 dpi |
| Print Width | Up to 54 / 32 mm |
| Sensor | “Paper End, Black Mark, Cover Open,Paper Taken” |
| Media Characteristics | |
| Media Type | Re-stick |
| Media Width | “58 mmOptional 40 mm” |
| Media Roll Diameter | Up to 103 mm |
| Media Thickness | 0.06 ~ 0.09 mm |

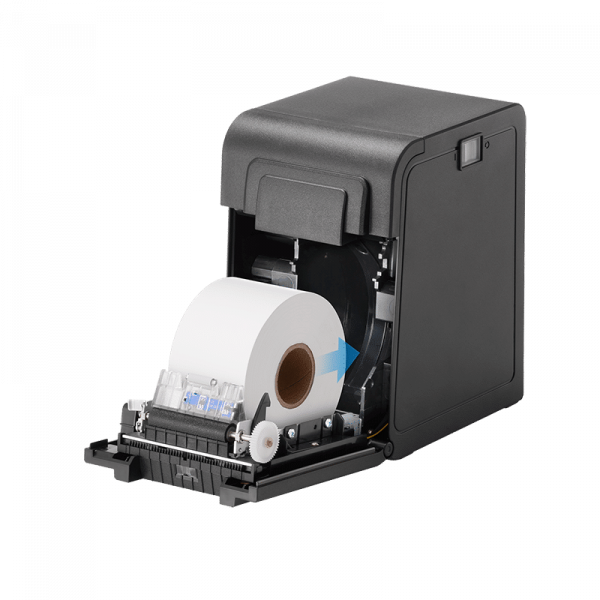

| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| “Dimensions(WxLxH)” | “128 x 156 x 196 mm(5.03 x 6.14 x 7.71 inch)” |
| Weight | 1.80kg (3.96 Ibs.) |
| Electrical | Energy Star Certified, External Power Supply Housed Internally (Adaptor 24V/2.5A) |
| Display | |
| Drawer Port | – |
| Performance Characteristics | |
| Memory | |
| NV Image Memory | 768 Kbytes (Mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | “Standard: USB V2.0 FS + Ethernet + Serial” |
| Environment Characteristics | |
| Temperature | “Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Sealing | IP23 |
| Reliability | |
| Thermal Print Head (TPH) | 100 km |
| Auto Cutter | Sticky, Restick: 1 Million Cuts |
| *** Specified Paper | “- Iconex Sticky Media(USA): Classic: 9023-1253, 9023-1823, 9023-1397(58mm), 9023-1233, 9023-1818(40mm)Classic High Tack: 9023-1500(58mm), 9023-1258(40mm)Classic High Temp: 9023-1269(40mm) Ultralite: 9023-1410(58mm), 9023-1865(40mm) – Iconex Linerless Label(USA)Linerless Extreme: 9023-1873, 9023-1708(40mm)- StickyPOS(USA): HTFC10(58x270mm), HTFC10(40x270mm)- MAX International Converters, Inc. MAXStick Products Ltd(USA)” |
| Software | |
| Emulation | BXL / POS |
| Driver/Utility | “Windows DriverOPOS/JPOS DriverLinux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility ProgramNetwork Auto Installer” |
| SDK/Plugin | “Android/iOS/Windows SDKLinux SDKXamarin SDKChrome SDKWeb Print SDKCordova Plugin” |
| Application | mPrint App (Android, iOS): B-gate Not SupportedBIXOLON Profile Manager – XPM™, XCM™ (Windows, Android) |
| MDM(Optional) | |
| Fonts/Graphics/Symbologies | Font A: 12×24 Font B: 9×17 Font C: 9×24KOR, CHN, JPN: 24×24″ |
| Character Size | – Font A: 36 Font B, C: 48 KOR, CHN, JPN: 18″ |
| Characters Per Line | Alphanumeric: 95Extended Graphics: 128×35 pageInternational: 32″ |
| Character Sets | Supporting user-defined fonts, graphics, formats, and logos |
| Graphics | 1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR code” |
| Barcode Symbologies | |
| Accessories | 40mm Partition |
| Standard | “External buzzer,USB A-B Cable 1.8m, USB to Serial cable, Serial Cable (9-9)” |
| Optional | |
| Supplies | Compatible with B-linerless™ BIXOLON’s flexible and ecological linerless label consumables |
