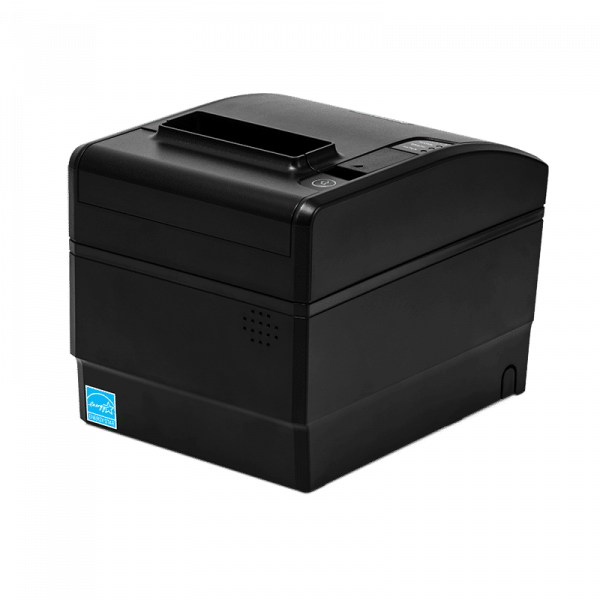

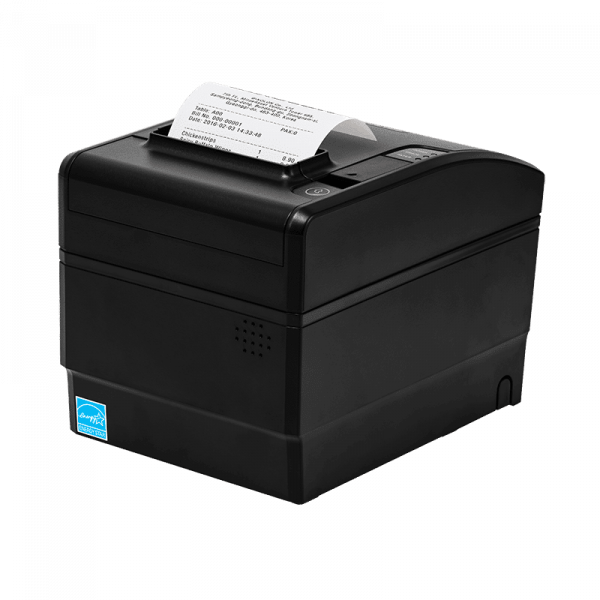

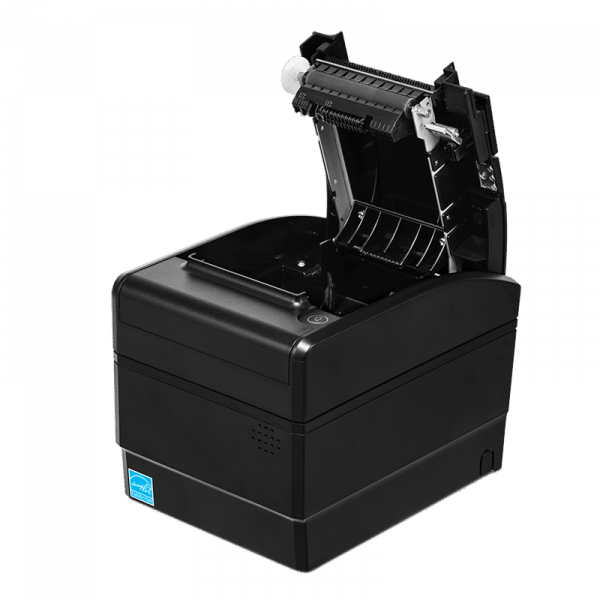

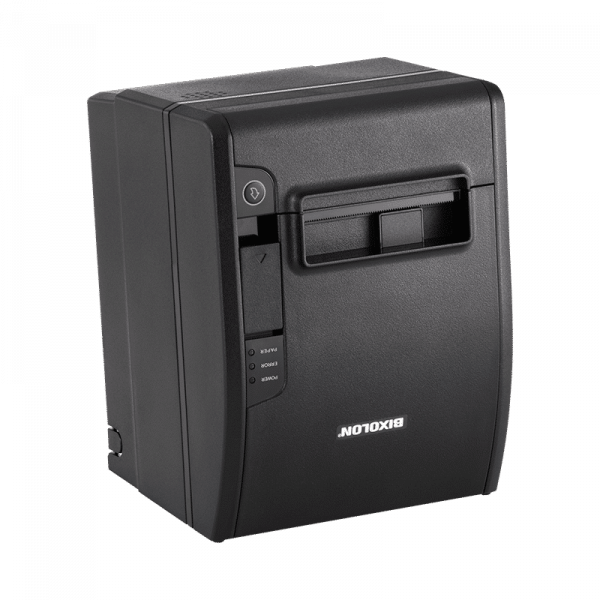

SRP-S300 3-inch (80mm) direct thermal liner-free label and receipt printer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Print Method | Direct Thermal |
| Print Speed | SRP-S300L/LX: Up to 170 mm/sec SRP-S300R: Up to 300 mm/sec SRP-S320: Up to 150 mm/sec |
| Print Resolution | 203 dpi |
| Print Width | SRP-S300: Up to 80 / 72 / 60 / 48 / 32 mm SRP-S320: Up to 72 / 60 / 48 / 32 mm |
| Sensor | SRP-S300: Paper End, Black Mark, Cover Open, Paper Taken (Option), Paper Near End(Receipt Only) SRP-S320: Paper End, Black Mark, Cover Open, Paper Taken |
| Media Type | SRP-S300L/T: Sticky, Re-stick SRP-S300LX/TX, SRP-S320: Linerless Extreme SRP-S300R: Receipt |
| Media Width | Standard: 80 mm SRP-S300 Optional: 40 / 58 / 62 / 83 mm SRP-S320 Optional : 40 / 58 / 62 mm |
| Media Roll Diameter | SRP-S300: Up to 103 mm SRP-S320: Up to 120 mm |
| Media Thickness | 0.06 ~ 0.09 mm |
| Supply Method | Easy Paper Loading |
| Dimensions (WxLxD) | SRP-S300: 156 x 210 x 160 mm (6.14 x 8.27 x 6.30 inch) SRP-S320: 156 x 227 x 161 mm (6.14 x 8.94 x 6.34 inch) |
| Weight | SRP-S300: 2.00 kg (4.40 lbs.) SRP-S320: 2.20kg (4.85 Ibs.) |
| Power | Energy Star Certified, External Power, Adaptor 24V/2.5A |
| Drawer Port | SRP-S300: 2 Ports (Via y-type adaptor) SRP-S320: N/A |
| Memory | 64 Mbit SDRAM, 32 Mbit FlashROM |
| NV Image Memory | SRP-S300: 256 Kbytes (Mono) SRP-S320: 768 Kbytes (Mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | SRP-300 Standard: USB V2.0 FS Optional: USB V2.0 FS + Serial / Parallel / Ethernet / WLAN¹ / Bluetooth / Powered USB SRP-S320 Standard: USB V2.0 FS + Ethernet Optional: USB V2.0 FS + Ethernet + Serial / WLAN¹ / Bluetooth SRP-S300Hi/320Hi (B-gate Hub Interface): 3 USB Host ports (V2.0 HS) + 1 USB charging port + 1 Device port (V2.0 HS) + Ethernet + WLAN² ———————————————— WLAN¹: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) – WEP40/104, WPA1/2 (PSK, EAP) WLAN²: 802.11a/ac/b/g/n USB dongle type (Optional) Bluetooth: V5.0 (MFi certified) |
| Temperature | Operating: 0 ~ 45℃ (32 ~ 113℉) Storage: -20 ~ 60℃ (-4 ~ 140℉) |
| Humidity | Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH |
| Thermal Print Head (TPH) | SRP-S300L: 75 Km SRP-S300R: 150 Km |
| Auto Cutter | SRP-S300L: 1 Million Cuts SRP-S300R: 3 Million Cuts |
| Emulation | BXL / POS |
| Driver / Utility | Windows Driver, OPOS Driver, JPOS Driver, Linux / Mac CUPS Driver, Virtual COM USB/Ethernet Driver, Utility Program |
| SDK | iOS SDK, Android SDK, Windows SDK |
| Character Size | Font A: 12 × 24 Font B: 9 × 17 Font C: 9 × 24 KOR, CHN, JPN: 24 x 24 |
| Characters Per Line | Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24 |
| Character Sets | Alphanumeric: 95 Extended Graphics:128 × 33 page International: 32 |
| Graphics | Supporting User-Defined Fonts, Graphics, Formats, and Logos |
| Barcode Symbologies | 1D: UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code |
| Accessories Standard | SRP-S300: 2 inch Partition (62/58/40 mm), 3 inch Partition (83 mm) SRP-S320: 2 inch Partition (62/58/40 mm) |
| Accessories Optional | External buzzer, B-Melodist(SRP-S300 only), USB A-B Cable 1.8m, USB to Serial cable, WLAN Dongle, Powered USB (0.5/1.2m – SRP-S300 only), Serial Cable (9-9/25-9pin) |
