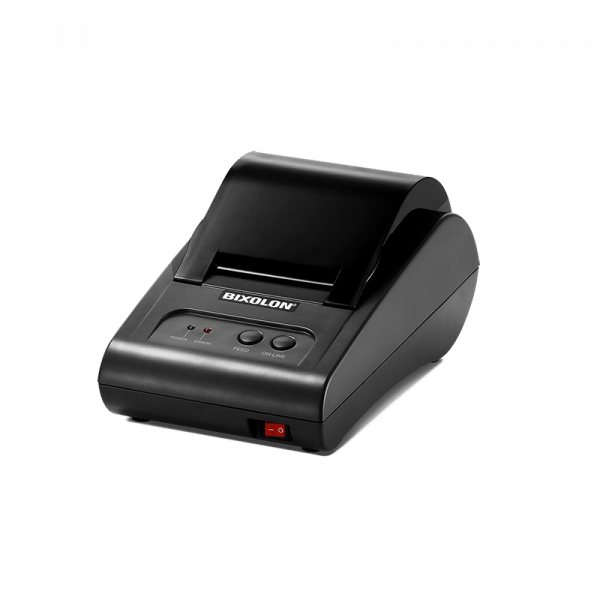

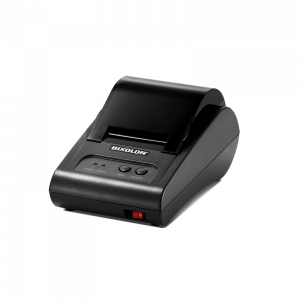

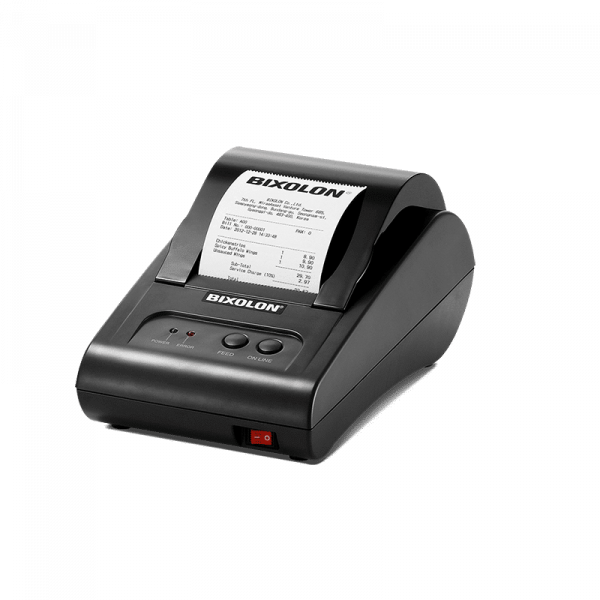

STP-103III Extremely compact, cost effective, mains powered, 2” direct thermal printer for receipting
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
| Print Method | Direct Thermal |
| Print Speed | Up to 80 mm/sec |
| Print Resolution | 203 dpi |
| Print Width | Up to 48 mm |
| Sensor | Paper End, Paper Near End, Cover Open |
| Media Characteristics | |
| Media Type | Receipt |
| Media Width | 57.5 mm |
| Media Roll Diameter | Up to 60 mm |
| Media Thickness | 0.05 ~ 0.08mm |
| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| “Dimensions(WxDxH)” | “116 x 180 x 90 mm(4.56 x 7.08 x 3.54 inch)” |
| Weight | 450 g (0.99 lbs.) |
| Electrical | External Power Adaptor 100-240V AV, 50/60Hz |
| Drawer Port | 2 ports (Via y-type adaptor) |
| Performance Characteristics | |
| Memory | – |
| NV Image Memory | 256 Kbytes (Mono) |
| Receive Buffer | 64 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | “① USB V2.0 FS + Serial USB V2.0 FS + Parallel “ |
| Environment Characteristics | |
| Temperature | “Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Reliability | |
| Thermal Print Head (TPH) | 50 km |
| Auto Cutter | – |
| *** Specified Paper | |
| Software | |
| Emulation | BXL / POS |
| Driver/Utility | “Windows DriverOPOS/JPOS DriverLinux/Mac CUPS DriverVirtual COM USB DriverUtility Program” |
| SDK/Plugin | “Android SDKLinux SDK “ |
| Application | |
| MDM(Optional) | |
| Fonts/Graphics/Symbologies | |
| Character Size | “Font A: 12×24 Font B: 9×17 Font C: 9×24KOR, CHN, JPN: 24×24” |
| Characters Per Line | “Font A: 32 Font B, C: 42KOR, CHN, JPN: 16” |
| Character Sets | “Alphanumeric: 95Extended Graphics: 128×33 pageInternational: 32” |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | “1D: Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: PDF417, QR code” |
| Accessories | |
| Standard | |
| Optional | “External buzzer, B-Melodist,USB A-B Cable 1.8m” |
