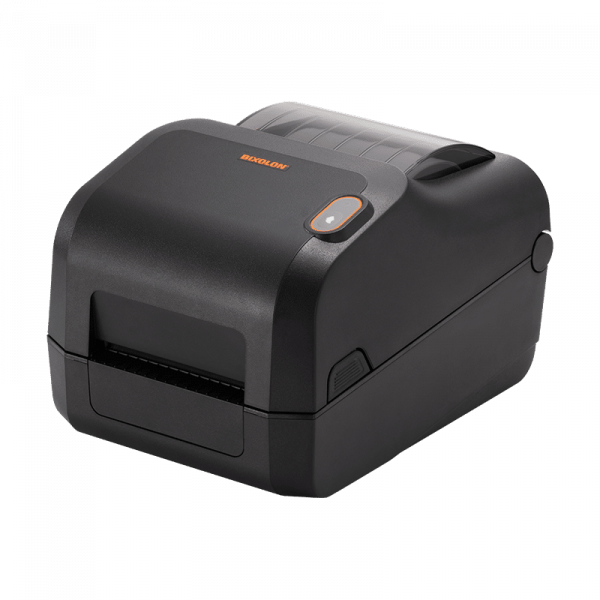

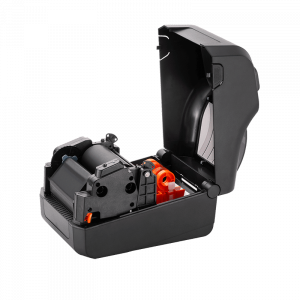

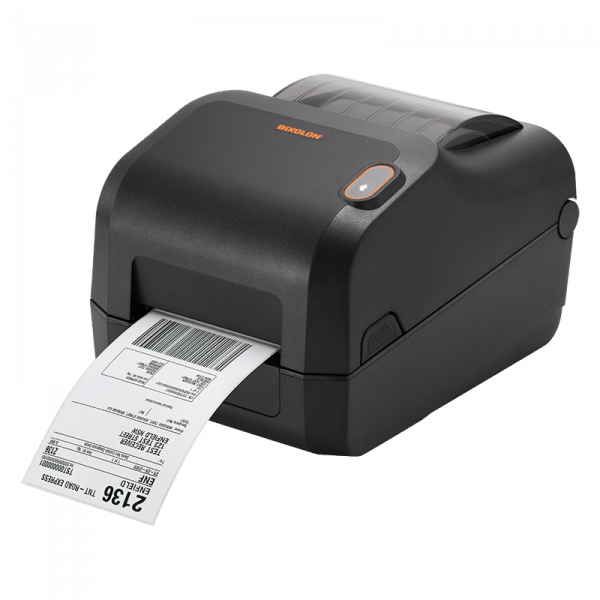

XD3-40t, a 4-inch (118mm) cost-effective Direct Thermal or Thermal Transfer Desktop Barcode and Label printer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Print Method | Thermal Transfer or Direct Thermal |
| Print Speed | Up to 5 ips (127 mm/sec) |
| Print Resolution | 203 dpi |
| Print Width | Up to 104 mm |
| Print Length | Up to 1,000 mm |
| Sensor | Transmissive(Fixed), Reflective(Adjustable), Head Open, Ribbon-End (XD3-40t only) |
| Media Characteristics | |
| Media Type | Gap, Black Mark, Notch, Continuous, Fan-Fold |
| Media Width | 15~118mm |
| Media Roll Diameter | Up to 127mm |
| Media Thickness | 0.06 ~ 0.20 mm |
| Supply Method | Easy Paper Loading |
| Inner Core | 25.4 ~ 38.1mm |
| Ribbon Characteristics | |
| Ribbon Type | Wax, Wax/Resin, Resin, Outside |
| Ribbon Width | 33~ 110mm |
| Ribbon Length | Up to 300m |
| Core Inner Diameter | 25.4 mm, 12.7 mm |
| Physical Characteristics | |
| Dimensions (WxDxH) | “XD3-40d: 181 x 222 x 168 mm (7.13 x 8.74 x 6.62 inch)XD3-40t: 210 x 284 x 186 mm (8.3 x 11.2 x 7.3 inch)” |
| Weight | “XD3-40d: 1.7kg (3.75 lbs.)XD3-40t: 2.6kg (5.73 Ibs.)” |
| Electrical | EnergyStar Certified,External Power Adaptor 100-240V AC, 50/60Hz |
| Display | |
| Camera | |
| Performance Characteristics | |
| Memory | 64 MB SDRAM, 128 MB Flash |
| Interface | “Standard: USBOptional: USB + Serial + Ethernet” |
| Real Time Clock | Not Supported |
| Environment Characteristics | |
| Temperature | “Operating:XD3-40d: 0 ~ 40℃ (32 ~ 104℉)XD3-40t: 5 ~ 40℃ (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Reliability | |
| Thermal Print Head (TPH) | |
| Auto Cutter | |
| Platen Roller | |
| Software | |
| Emulation | SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL) |
| Driver/Utility | “Windows Driver (Europlus/Seagull)Linux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility ProgramOPOS DriverBartender Ultralite for BIXOLONLabel Artist-II™” |
| SDK/Plugin | “Windows SDKLinux SDK” |
| Application | |
| MDM(Optional) | |
| Fonts/Graphics/Symbologies | |
| Fonts | Bitmap Fonts (SLCS , BPL-Z, BPL-E) / Scalable Fonts (SLCS, BPL-Z) / Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | “1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39 “ |
| Accessories | |
| Standard | USB cable |
| Optional | Peeler,External Paper Supply, Serial cable |
