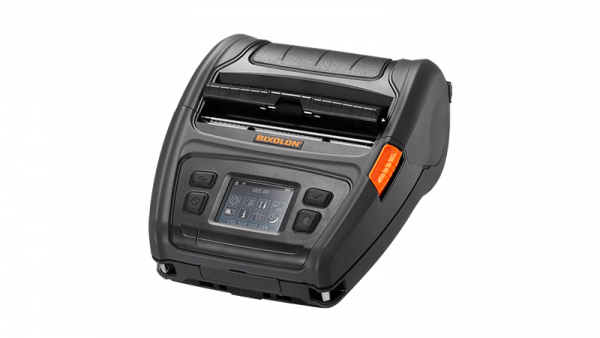

XM7-40R is a 4-inch (112 mm) mobile label printer with UHF RFID
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
Check the printer by clicking on Youtube video:
| Printing method | Direct thermal |
| Print speed | XM7-40: up to 127 mm/s (5 ips – standard, carrierless) XM7-20: up to 152 mm/s (6 ips – standard, carrierless) |
| Print resolution | 203 dpi |
| Print width | “XM7-40: up to 104 mm XM7-20: up to 48 mm “ |
| recognition | “Paper endGapReflex markCover openDetachment” |
| Media features | |
| Media type | “XM7-40: with/without carrier, RFID tag (optional)XM7-20: with/without carrier, RFID tag (optional), notch, receipt” |
| Media width | XM7-40: 50 ~ 112 mm (1.97 ~ 4.41 in) XM7-20: 25 ~ 58 mm (1.0 ~ 2.28 in) |
| Media roll diameter | “XM7-40: up to 66 mmXM7-20: up to 57 mm” |
| Media strength | 0,07 ~ 0,19 mm |
| Media core | 19 mm, 12 mm |
| Feeding method | Easy paper loading |
| Physical characteristics | |
| “Dimensions (WxDxH)” | “XM7-40: 158 × 186 × 82 mm (6,23 × 7,33 × 3,23 Zoll)XM7-20: 92,9 x 168,2 x 69,2 mm (3,66 x 6,62 x 2,72 Zoll)” |
| Weight | “XM7-40mit Akku: ca. 1.090 gPaper: ca. 360 gXM7-20mit Akku: 600 gPaper: 120 g” |
| Power supply | Supports USB Type-C Power Delivery charging, Energy Star certified. XM7-40: 7.2V Li-ion, 6,800mAh (nominal), intelligent battery, rechargeable. XM7-20: Standard: 7.3V Li-ion, 2,850mAh (nominal), rechargeable. Optional: 7.2V Li-ion, 3,400mAh (nominal), intelligent battery, rechargeable. |
| Peeler | Supports |
| Media holder | Yes (Inner core: 19 mm) |
| Display | TFT-LCD (IPS, 240 x 320 Pixel) |
| Features | |
| RAM | “128 MB SDRAM, 256 MB Flash 256 MB SDRAM, 512 MB Flash (optional)” |
| interface | Standard: USB 2.0 HS + Serial Optional: USB 2.0 HS + Serial + Bluetooth/Wi-Fi/Dual (Bluetooth + Wi-Fi) ————————————————— Bluetooth: V5.0 (MFi Certified) Wi-Fi: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) – WEP40/104, WPA1/2 (PSK, EAP) —————————————– Easy Bluetooth Pairing™ via NFC |
| Environmental conditions | |
| Temperature | Operation: -15 ~ 50 ℃ (5 ~ 122 ℉) Storage: -30 ~ 70 ℃ (-22 ~ 158 ℉) |
| humidity | Operation: 10 ~ 80% relative humidity |
| sealing | IP54 |
| Fall resistance | “XM7-40: 1,8 mXM7-20: 2,1 m” |
| Software | |
| Emulation | “XM7-40/XM7-20: SLCS, BPL-Z™, BPL-C™, BXL/POSXM7-40R (RFID): SLCS, BPL-Z™” |
| Driver/Utility Program | Windows Driver (Europlus/Seagull) Linux/Mac CUPS Driver Virtual COM USB Driver Utility Program LabelArtist-II™ Bartender ULOPOS/JPOS Driver SAP® Device Driver Network Auto Installer |
| SDK/Plugin | “Android/iOS/Windows SDKLinux SDKChrome SDKXamarin SDKWeb Print SDKCordova Plugin” |
| Application | “Label Artist™ Mobile (Android, iOS)mPrint App (Android, iOS)” |
| MDM (Optional) | BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android) |
| Fonts/Graphics/Symbologies | |
| Fonts | 10 SLCS/One SLCS/16 BPL-Z™/One BPL-Z™/7 BPL-C™/23 Code Page/Unicode supported (UTF-8, UTF-16LE, UTF-16BE) Support for custom fonts, graphics, formats, and logos |
| Graphics | “1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN-Erweiterungen, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR-Code, TLC 39” |
| Barcode symbologies | |
| Accesories | XM7-40: Webbing, intelligent battery, switching power supply, power cable, media disc (inner core: 12 mm). XM7-20: Webbing, battery, switching power supply, power cable, media disc (inner core: 12 mm). |
| Standard | Shoulder strap, single battery charger, quad battery charger, single docking station (XM7-20 only), USB-to-serial cable, fixed USB-to-serial cable, car charger (XM7-20 only), smart battery (XM7-20 only) |
| Optional | |
| Integrated card reader (optional) | |
| magnetic stripe reader | |
| Smartcard reader | |
| Consumables | Compatible with B-linerless™, BIXOLON’s flexible and environmentally friendly linerless labels |
| RFID (XM7-40R only) | “UHF, 865 ~ 868 MHz (EU), 902 ~ 928 MHz (KR, USA)” |
| frequency | 1 In |
| Transmission power | ASK |
| Modulation | ISO 18000-6C (EPC Class 1 Gen 2) |
| Protocol | mind. 16 mm |
