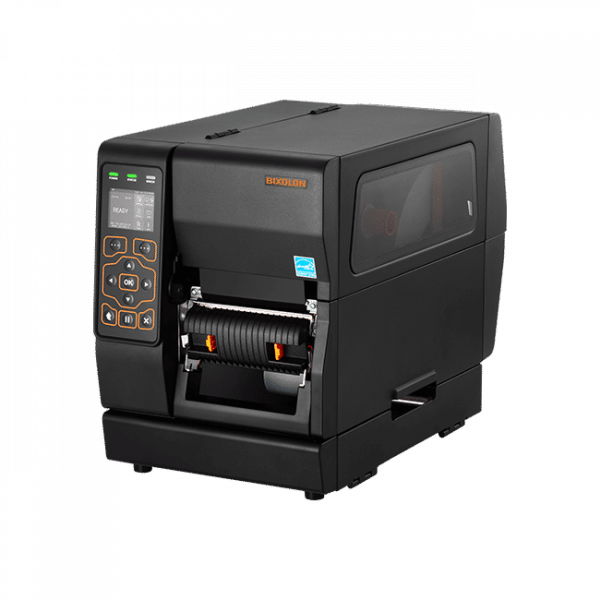

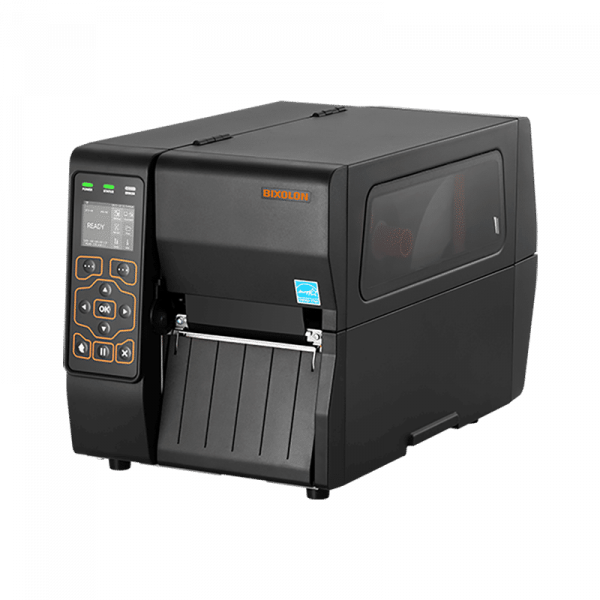

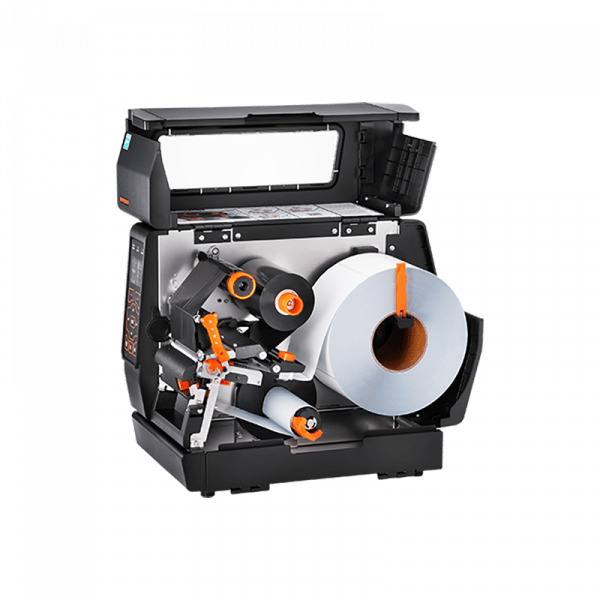

XT3-40 is a 4-inch (114 mm) Direct Thermal and Thermal Transfer Industrial Label Printer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Print Method | Thermal Transfer, Direct Thermal |
| Print Speed | XT3-40: Up to 8 ips (203 mm/sec) XT3-43: Up to 6 ips (152 mm/sec) |
| Print Resolution | XT3-40: 203 dpi XT3-43: 300 dpi |
| Print Width | XT3-40 : 108mm XT3-43 : 105.7mm |
| Print Length | XT3-40: Up to 4,000 mm XT3-43: Up to 2,000 mm |
| Sensor | Transmissive(Adjustable), Reflective (Adjustable), Ribbon-End, Head Open |
| Media Characteristics | |
| Media Type | Gap, Black Mark, Notch, Continuous, Fan-Fold |
| Media Width | 20 ~ 114mm |
| Media Roll Diameter | Up to 203 mm |
| Media Thickness | 0.06 ~ 0.25 mm |
| Supply Method | Easy Paper Loading |
| Inner Core | 25.4 ~ 76.2 mm |
| Ribbon Characteristics | |
| Ribbon Type | Wax, Wax / Resin, Resin, Outside, Inside |
| Ribbon Width | 40 ~ 110 mm |
| Ribbon Length | Up to 450 m |
| Core Inner Diameter | 25.4 mm |
| Physical Characteristics | |
| Dimensions (WxLxH) | STD: 240 x 430.5 x 276.7 mm (9.44 x 16.94 x 10.89 inch) Rewinder: 240 x 430.5 x 326.7 mm (9.44 x 16.94 x 12.86 inch) |
| Weight | STD: 9.3kg (20.5 lbs.) Rewinder: 11.88kg (26.19 lbs.) |
| Electrical | EnergyStar Certified, Internal Power Adaptor 100-240V AC, 50-60Hz |
| Display | 2.4 inch Color TFT LCD |
| Performance Characteristics | |
| Memory | 128 MB SDRAM, 128 MB Flash |
| Interface | Standard: USB+USB Host+Serial+Ethernet Optional: ① USB+USB Host+Serial+Ethernet + Parallel ② USB+USB Host+Serial+Ethernet + Parallel + Bluetooth ③ USB+USB Host+Serial+Ethernet + Parallel + WLAN ④ USB+USB Host+Serial+Ethernet + Bluetooth ⑤ USB+USB Host+Serial+Ethernet + WLAN —————————————————————– Ethernet: 10/100 Mbp WLAN: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) – WEP40/104, WPA1/2 (PSK, EAP) Bluetooth: V5.2 (MFi certified) * WLAN & Bluetooth: Dongle type not supported | |
| Real Time Clock | Supported(Standard) |
| Environment Characteristics | |
| Temperature | Operating: 5 ~ 40℃ (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉) | |
| Humidity | Operating: 10 ~ 80% RH Storage 10 ~ 90% RH |
| Reliability | |
| Thermal Print Head (TPH) | 12 months or 25 Km (whichever comes first) |
| Auto Cutter | 12 months or 500,000 cut (whichever comes first) |
| Software | |
| Emulation | SLCS™, BPL-Z™, BPL-E™ |
| Driver/Utility | Windows Driver (Europlus/Seagull) Linux/Mac CUPS Driver Virtual COM USB/Ethernet Driver Utility Program OPOS/JPOS Driver Bartender Ultralite for BIXOLON Label Artist-II™ Network Auto Installer SAP® Device Driver |
| SDK/Plugin | Android/iOS/Windows SDK Linux SDK Xamarin SDK Web Print SDK |
| Application | Label Artist™Mobile (Android, iOS) mPrint App (Android, iOS) |
| MDM(Optional) | BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android) |
| XI(Optional) | Supported |
| Fonts/Graphics/Symbologies | |
| Fonts | Bitmap Fonts (10 SLCS™, 16 BPL-Z™, 5 BPL-E™), Scalable Fonts (1 SLCS™, 1 BPL-Z™), 23 Code page, Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 |
| Accessories | |
| Standard | USB cable |
| Optional | Peeler, Auto Cutter, Rewind(Liner Take-up only, Internal, Max.OD 130mm),Serial cable, Parallel cable |
| Supplies | Compatible with B-ribbon™ |
