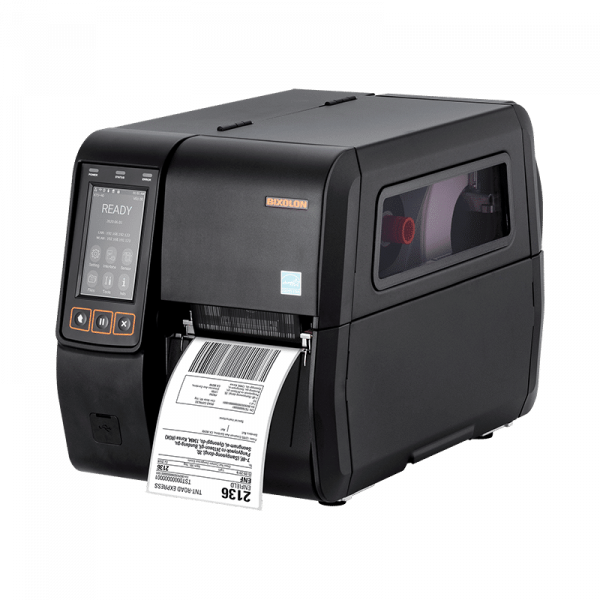

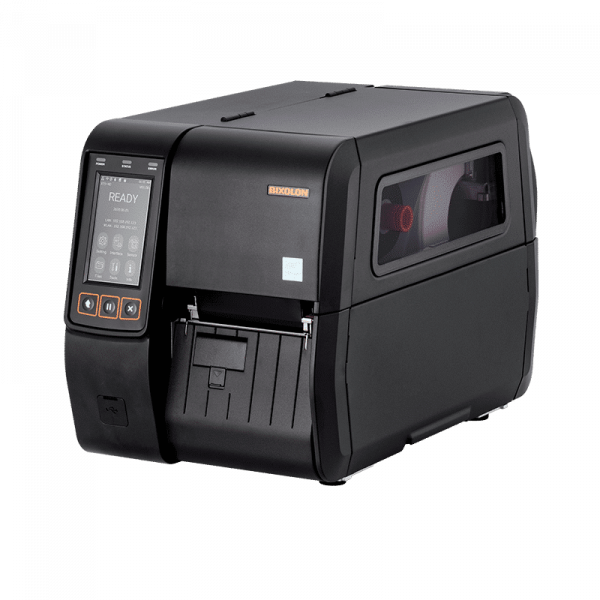

XT5-40 4-inch Thermal Transfer Label Printer
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Print Method | Thermal Transfer, Direct Thermal |
| Print Speed | “XT5-40: Up to 14 ips (356 mm/sec)XT5-43: Up to 10 ips (254 mm/sec) XT5-46: Up to 5 ips (127 mm/sec) “ |
| Print Resolution | “XT5-40: 203 dpiXT5-43: 300dpiXt5-46: 600dpi” |
| Print Width | “XT5-40: 104mmXT5-43: 105.7mmXT5-46: 105.6mm” |
| Print Length | “XT5-40: Up to 4,000 mmXT5-43: Up to 2,500 mmXT5-46: Up to 1,000 mm” |
| Sensor | Transmissive(Adjustable), Reflective (Adjustable), Ribbon-End, Head Open |
| Media Characteristics | |
| Media Type | Gap, Black Mark, Notch, Continuous, Fan-Fold |
| Media Width | 25 ~ 114 mm |
| Media Roll Diameter | Up to 203 mm |
| Media Thickness | 0.06 ~ 0.30 mm |
| Supply Method | Easy Paper Loading |
| Inner Core | 38.1 ~ 76.2mm, 25.4mm (option) |
| Ribbon Characteristics | |
| Ribbon Type | Wax, Wax/Resin, Resin, Outside, Inside |
| Ribbon Width | 50 ~ 110 mm |
| Ribbon Length | Up to 450 m |
| Core Inner Diameter | 25.4 mm |
| Physical Characteristics | |
| Dimensions (WxDxH) | “STD: 269 x 490 x 324 mm (10.59 x 19.29 x 12.76 inch)Rewinder: 269 x 490 x 407 mm (10.59 x 19.29 x 16.02 inch)” |
| Weight | “STD: 13.98Kg (30.82 lbs.)Rewinder: 17.98Kg (39.64 lbs.)” |
| Electrical | “EnergyStar Certified, Internal Power Adaptor 100-120V/200-240V AC, 50/60Hz” |
| Display | 3.5 inch HVGA (262K Colors) TFT LCD |
| Performance Characteristics | |
| Memory | 512 MB SDRAM, 512 MB Flash |
| Interface | “Standard: USB+Serial+Ethernet+2 USB Host portsOptional: ① USB + Serial + Parallel + Ethernet + 2 USB Host ports② USB + WLAN¹ + Ethernet + 2 USB Host ports ③ USB + WLAN¹ + Parallel + Ethernet + 2 USB Host ports ④ USB + Bluetooth + Ethernet + 2 USB Host ports + WLAN²⑤ USB + Bluetooth + Parallel + Ethernet + 2 USB Host ports + WLAN² ⑥ USB + Bluetooth + Parallel or GPIO + Ethernet + 2 USB Host ports + WLAN²—————————————————Ethernet: 10/100/1000Mbps (1Gbps) WLAN¹: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) – WEP40/104, WPA1/2 (PSK, EAP) WLAN²: 802.11a/b/g/n Dongle type – requires a USB Host port (Optional) Bluetooth: V4.2 (MFi certified) GPIO: DB15(Female), 5/24V, 4 GPI, 8 GP |
| Real Time Clock | Supported(Standard) |
| Environment Characteristics | |
| Temperature | “Operating: 5 ~ 40℃ (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Reliability | |
| Thermal Print Head (TPH) | 12 months or 25km (whichever comes first) |
| Auto Cutter | 12 months or 1.0 Million Cuts (whichever comes first) |
| Software | |
| Emulation | SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL), BPL-D™ (DPL) |
| Driver/Utility | “Windows Driver (Europlus/Seagull)Linux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility ProgramOPOS/JPOS DriverBartender Ultralite for BIXOLONLabel Artist-II™SAP® Device Driver” |
| SDK/Plugin | “Android/iOS/Windows SDK Linux SDKChrome SDKXamarin SDK” |
| Application | “Label Artist™Mobile (Android,iOS)mPrint App (iOS)mPrint Server (Windows, iOS)” |
| MDM(Optional) | BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android) |
| Fonts/Graphics/Symbologies | |
| Fonts | 10 SLCS™ / One SLCS™ / 16 BPL-Z™ / One BPL-Z™ / 9 BPL-D™ / Two BPL-D™ / 5 BPL-E™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | “1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 “ |
| Accessories | |
| Standard | – |
| Optional | Peeler, Auto Cutter, Rewinder, 1″ I.D. Core media supply hanger, Serial cable, Parallel cable, USB cable |
| Supplies | |
| Supplies | B-ribbon™ |
