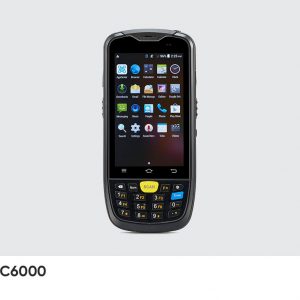

Product details
SPECIFICATIONS
| Physical Characteristics | |
| Dimensions | 157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in. |
| Weight | 292 g / 10.3 oz. |
| Display | 4” TN α-Si 480*800, 16.7 M colors |
| Touch Panel | Rugged dual touch capacitive touch panel |
| Power | Main battery: Li-ion, rechargeable, 4200 mAh Standby: over 300 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Notification | Sound, LED indicator, vibrator |
| Expansion Slot | 1 slot for Micro SIM card, 1 slot for MircoSD(TF) or PSAM card (optional) |
| Interfaces | USB 2.0, Type-C, OTG |
| Audio | 1 microphone; 1 speaker; receiver |

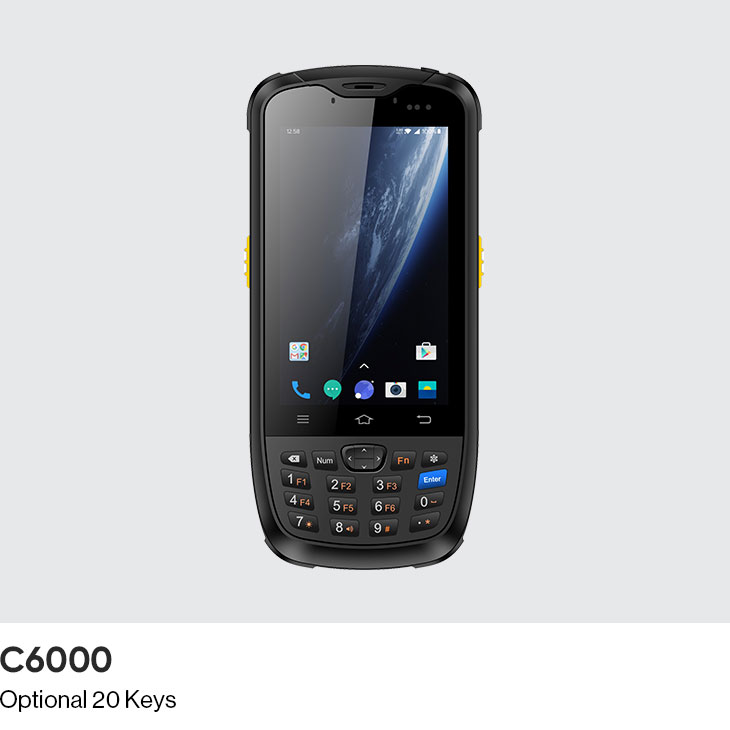

| Keypad | 3 TP soft keys, 3 side keys, numeric keyboard (Optional : 20 keys) |
| Sensors | Light sensor, proximity sensor, gravity sensor |
| Communication | |
| WLAN | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108, 112,116,120,124,128,132,136,140,149,153,157,161,165, depends on local regulations Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. |
| WWAN | 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 TD-SCDMA: A/F(B34/B39) 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41 |
| WWAN (Others) | Depending on the country’s ISP |
| Bluetooth | V2.1+EDR, 3.0+HS and V4.1+HS, BT5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou, internal antenna |
| Note | *C6000 models being manufactured for Brazil Market, do not include 4G B7 and B38 frequency.
*C6000 Wifi-Only Model available. Wifi-Only model does not include WWAN GSM_GPRS(2G,3G,4G) and sim card socket. |
| Developing Environment | |
| Operating System | Android 10.0 / 13.0; GMS, Soti MobiControl (Only Android 10.0 support); FOTA, SafeUEM supported. |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Performance | |
| CPU | Octa-core, 2.0GHz |
| RAM+ROM | 3GB + 32GB |
| Expansion | Supports up to 256GB Micro SD (TF) card |
| User Environment | |
| Operating Temp. | -4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5%RH – 95%RH non condensing |
| Drop Specification | Multiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±6 KV conductive discharge |
| Barcode Scanning | |
| 2D Imager Scanner | Zebra SE4710; Honeywell N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc |
| Note | *This function is optional |
| Camera | |
| Camera | 13MP Autofocus with Flash |
| NFC | |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc |
| Range | 2-4cm |

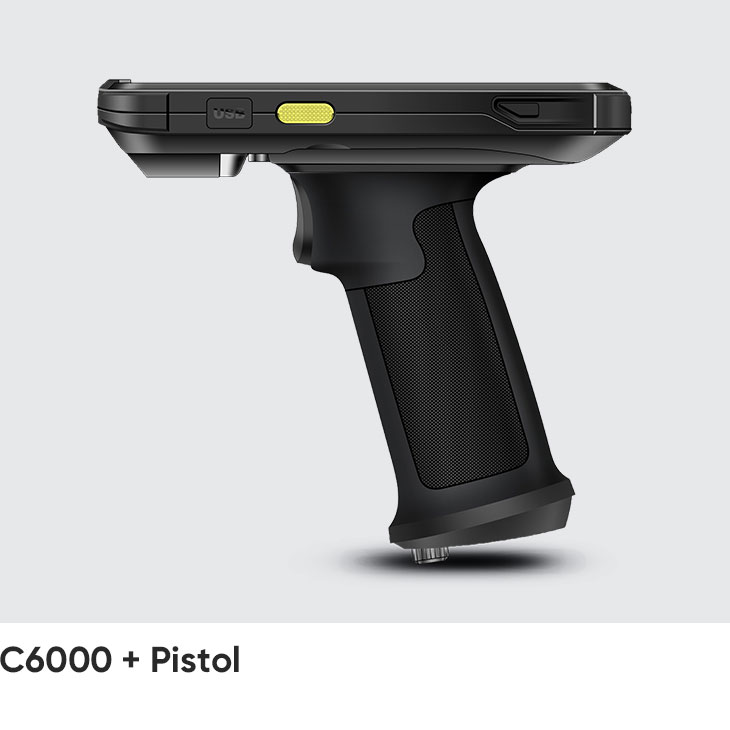

| Note | * Pistol grip is optional, NFC can not coexist with the pistol grip |
| Note2 | *This function is optional |
