Product details
Superior Performance for Cold Chain Warehousing
The Chainway C61-Cold is an industrial-grade mobile computer designed specifically for cold-chain warehousing. Engineered to operate in extreme conditions with temperatures as low as -30°C (-22°F) and high humidity, it features a 6400mAh low-temperature-resistant battery and a specialized anti-condensation screen. The device supports optional UHF and NFC functionalities and features high-powered Wi-Fi 6-ready. Its rugged design and high performance make it an ideal solution for boosting efficiency in challenging cold chain environments.
| Physical Characteristics | |
| Dimensions | 202.0 x 72.5 x 32.0mm / 7.95 x 2.85 x 1.26in |
| Weight | 370g / 13.05oz. (SE4710) ; 404g / 14.25oz. (SE4850) |
| Display | 4-inch industrial-grade low-temperature-resistant capacitive touch screen, gloves and wet hands supported 800*480 |
| Battery | 6400 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC; Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security Continuous use: 5.5 hours (continuous scan at 500ms interval at -30° C / -22oF) |
| Touch Panel | Multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator, vibrator |
| Interfaces | USB Type-C, USB 3.1, OTG, extended thimble |
| Card slot | 1 slot for SIM card, 1 slot for TF card |
| Audio | 2 microphones, 1 for noise cancellation; 2 speakers; receiver |

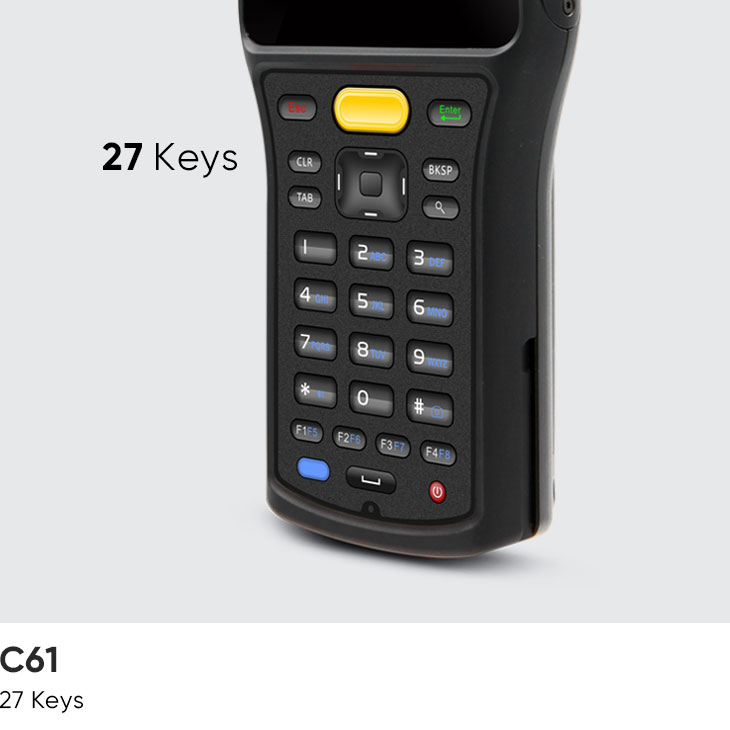

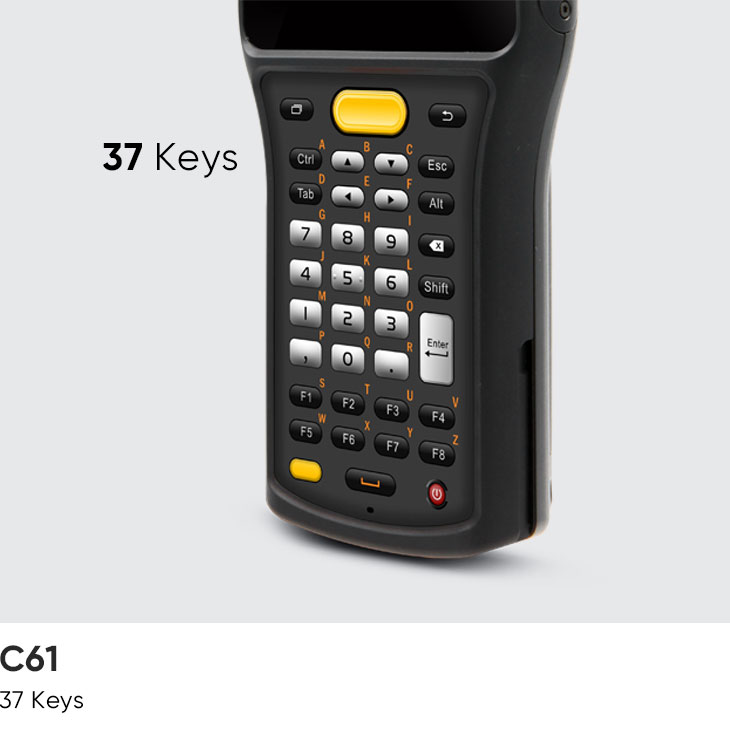

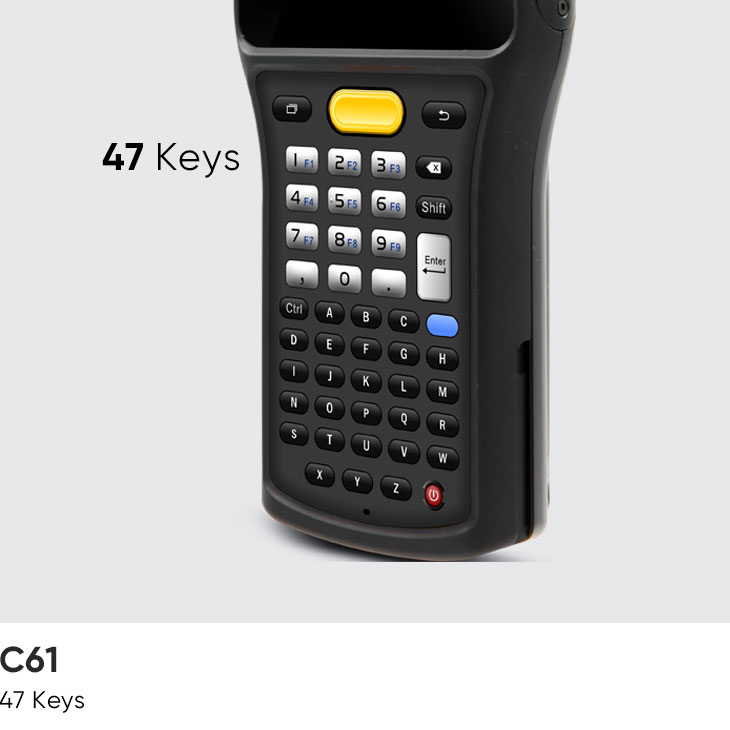

| Keypad | Main keyboard (optional) : 27 keys / 37 keys / 47 keys; Side keys: 2 scan keys + 2 volume keys + 1 user-defined key |
| Sensors | Accelerometer sensor, light sensor, proximity sensor, gravity sensor |
| Communication | |
| WLAN | Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120, 124,128,132,136,140,144,149,153,157,161,165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, etc. |
| WWAN (Europe, Asia) | 2G: 850/900/1800/1900 MHz 3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100 MHz TD-SCDMA: A/F(B34/B39) 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
| WWAN (America) | 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38 |
| Bluetooth | Bluetooth 5.1 |
| Vo-LTE | Support Vo-LTE HD video voice call |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
| Performance | |
| CPU | Octa-core, 2.0 GHz |
| RAM+ROM | 3GB + 32GB / 4GB + 64GB |
| Expansion | Supports up to 256GB Micro SD (TF) card |
