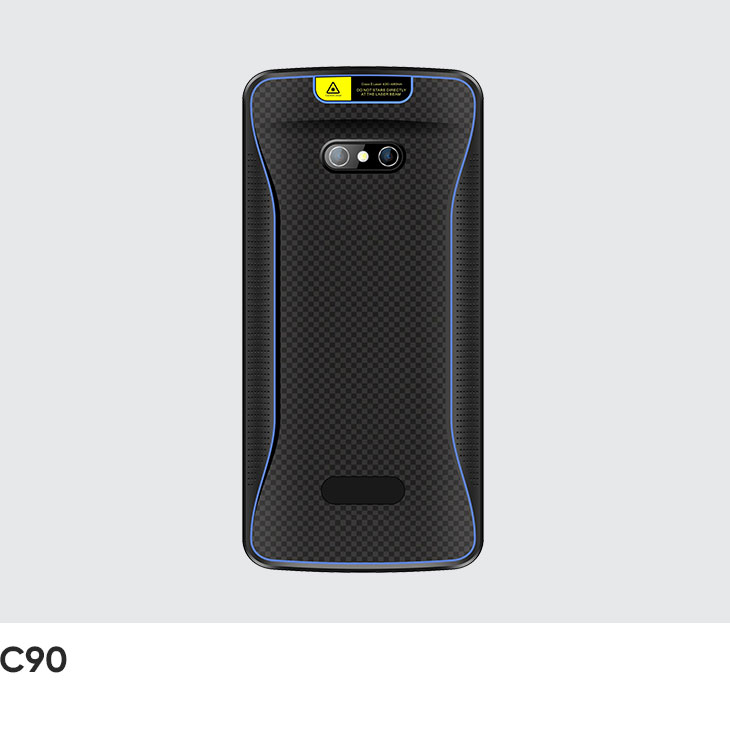

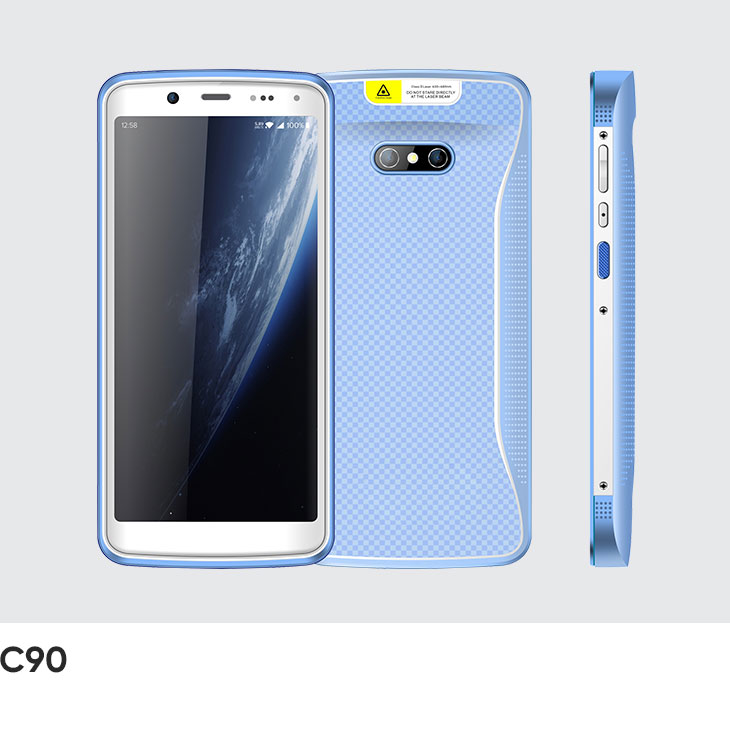

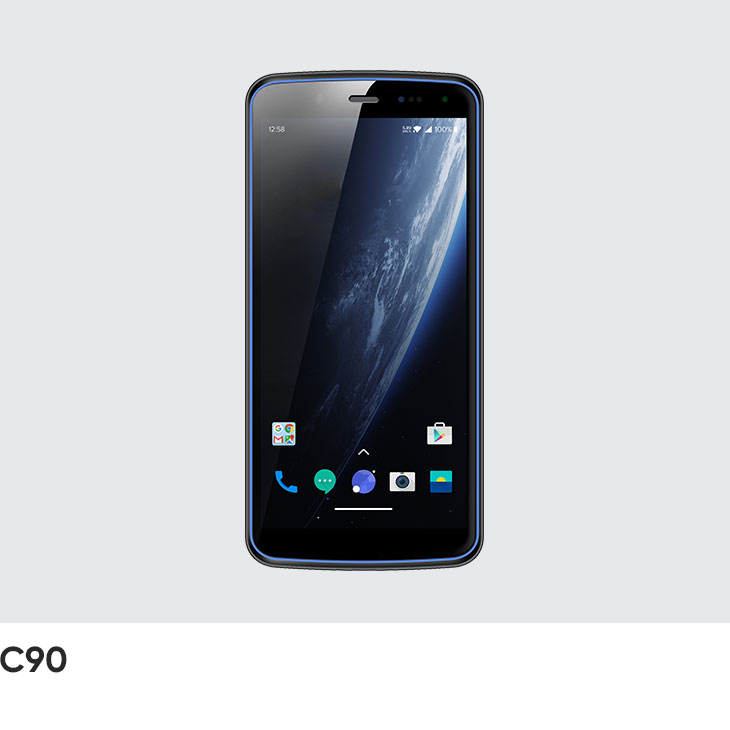

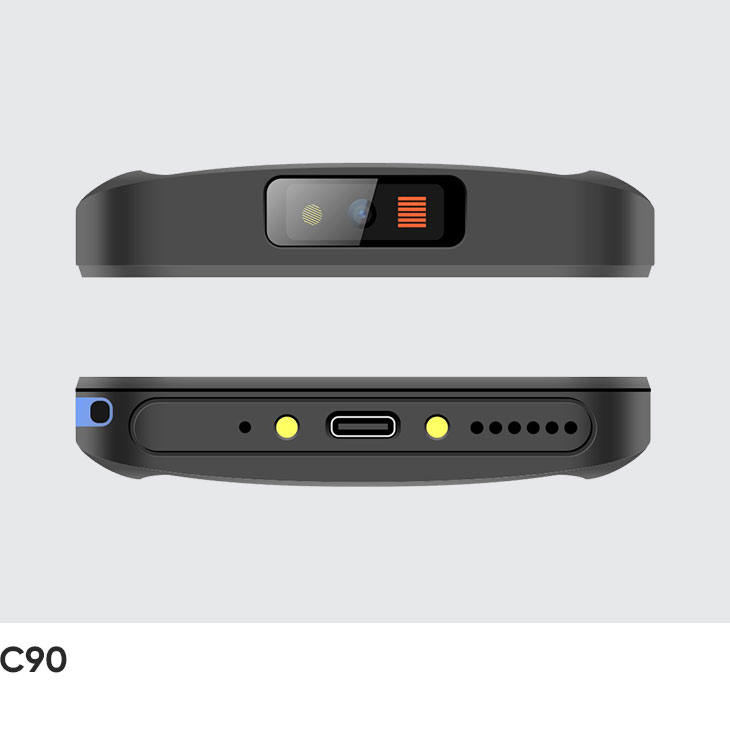

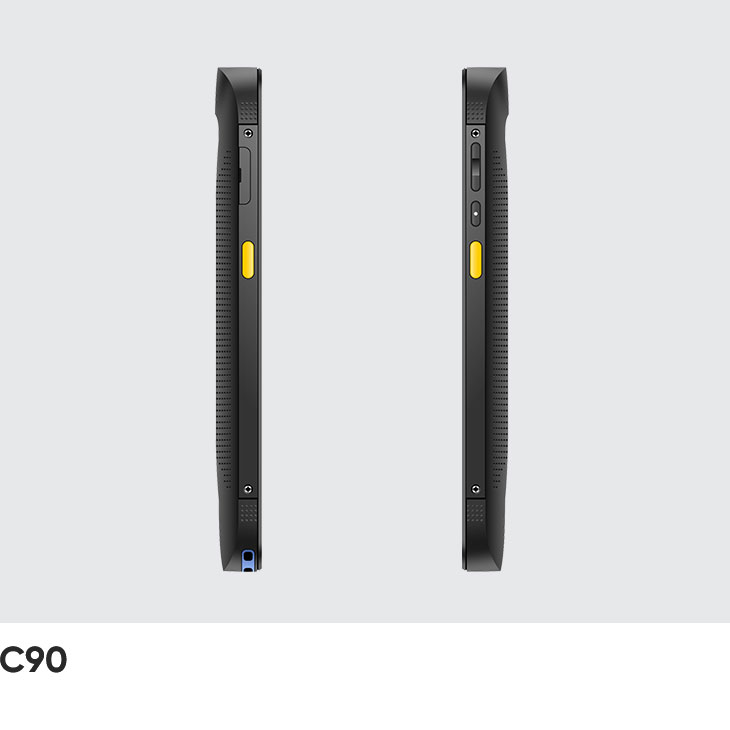

C90 Mobile Computer (Android 10/14)

Product details

Larger Display, Lighter Weight, Stronger Performance.

CHAINWAY C90 is a rugged handheld computer that exhibits extremely powerful performance. Built with Android 10/14 and a high-performance processor, it features vigorous system configuration. With rich functionality features like barcode scanning, sturdy WiFi performance, NFC, front and rear cameras, it possesses the best price versus performance ratio. All these make C90 immensely perfect to be implemented in a wide spectrum of industries, including logistics, warehousing, retail, healthcare, etc.

SPECIFICATIONS

Physical Characteristics
Dimensions	158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in.
Weight	230g / 8.11 oz. (device with battery)
Display	5.7-inch (18:9), IPS LTPS 1440 x 720
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	Main battery: built-in 5000 mAh Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Notification	Sound, LED indicator, vibrator
Interfaces	USB Type-C, USB 2.0, OTG
Card slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio	2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad	Power, 2 scan keys, volume +/-
Sensors	Light sensor, proximity sensor, gravity sensor

Communication
WLAN	Support IEEE802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, 2.4G/5G dual-band, IPV4, IPV6; Support 5G PA Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112, 116,120,1 24,128,132,136,140,149,153,157,161,165), depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC,etc.
WWAN (Europe, Asia)	2G: GSM850/GSM900/DCS1800/PCS1900 3G: CDMA EVDO: BC0 WCDMA: B1/B2/B4/B5/B8 TD-SCDMA: A/F(B34/B39) 4G: B1/B2/B3/B4/B5/B7/B8/B20/B34/B38/B39/B40/B41
WWAN (America)	2G: GSM850/GSM900/DCS1800/PCS1900 3G: CDMA EVDO: BC0/BC1 WCDMA: B2/B4/B5/B8 4G: B2/B4/B5/B7/B8/B12/B17/B28A/B28B/B38
Bluetooth	V2.1+EDR,3.0+HS and V4.1+HS, BT5.0
GNSS	GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Developing Environment
Operating System	Android 10/14, GMS, FOTA, Soti MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security updates, SafeUEM supported
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Performance
CPU	Octa-core 2.0 GHz
RAM+ROM	3GB + 32GB / 3GB + 64GB / 4GB + 64GB
Expansion	Supports up to 256GB Micro SD (TF) card

User Environment
Operating Temp.	-20 ℃~+50 ℃
Storage Temp.	-40 ℃~+70 ℃
Humidity	5% RH – 95% RH non condensing
Drop Specification	Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5 m/ 1.64 ft. falls at room temperature
Sealing	IP67 per IEC sealing specifications
ESD	±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanning
2D Imager Scanner	Honeywell: N6603 / N6703; CM60
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note	*This function is optional
