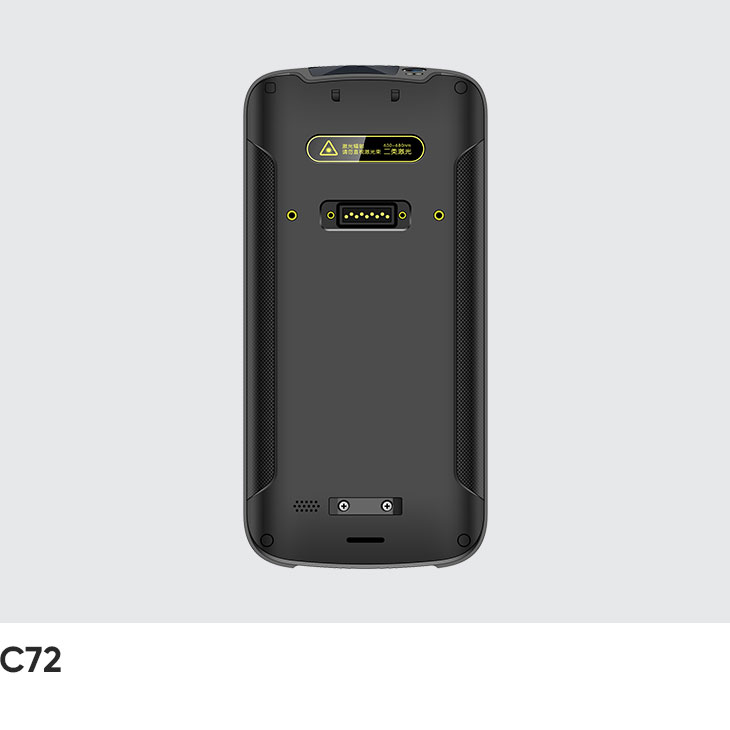

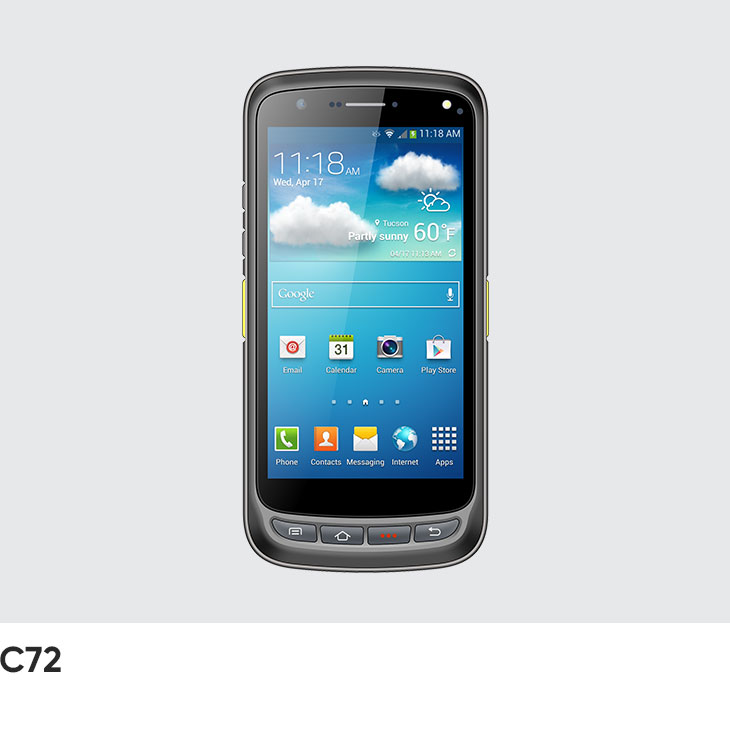

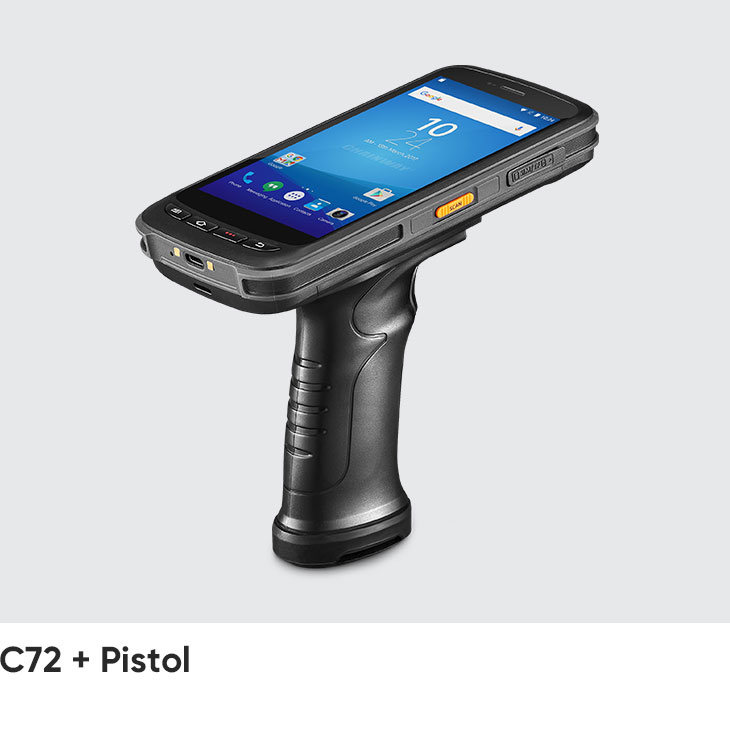

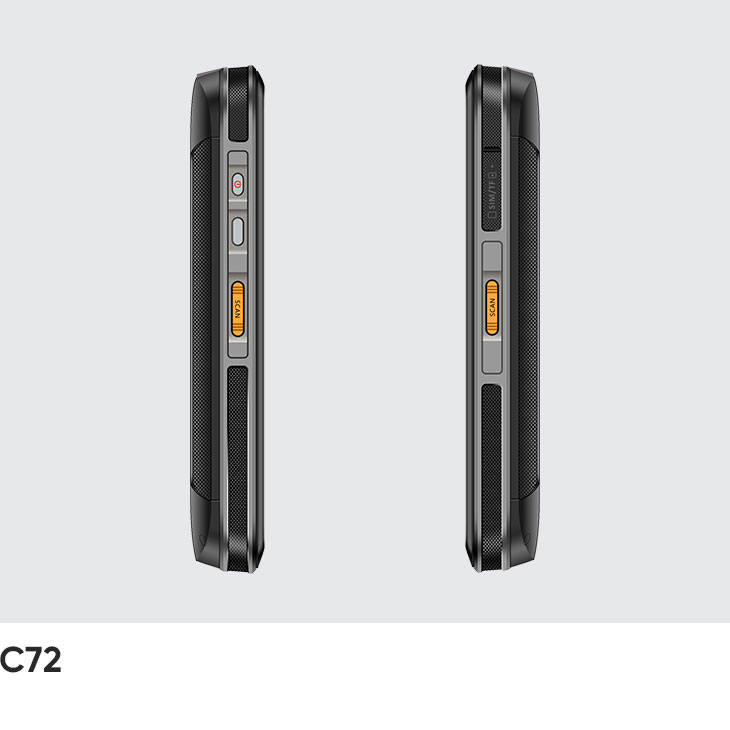

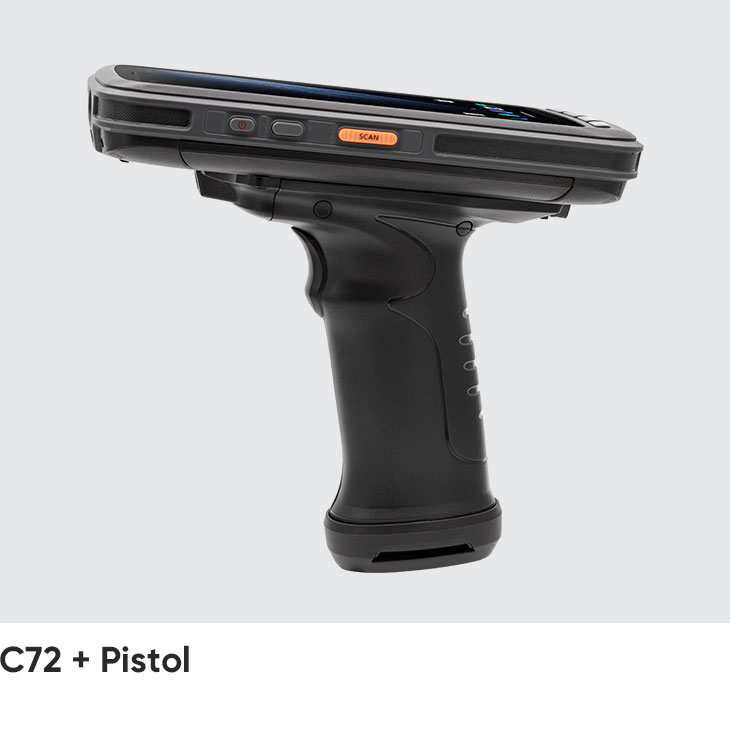

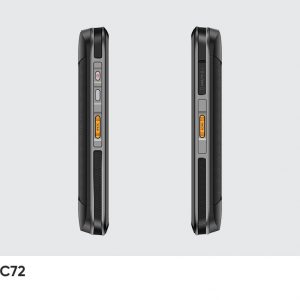

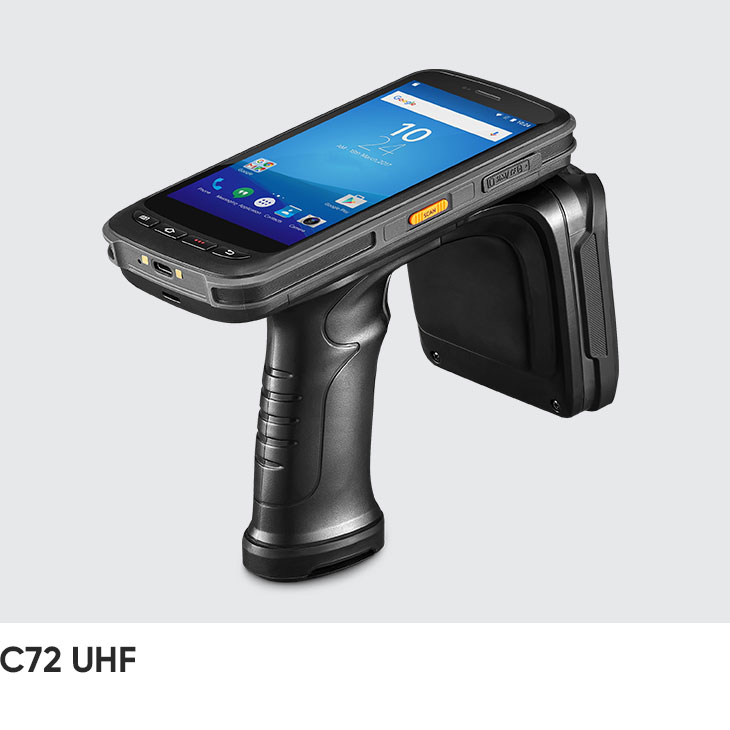

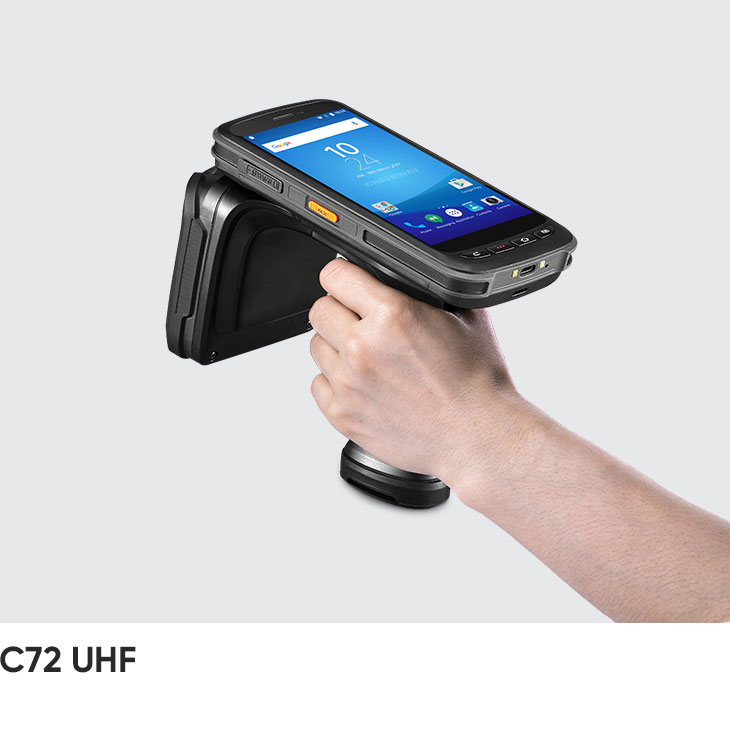

C72 mobile terminal
GET YOUR QUOTE AND DETAILS
Supported payment types:
Related products
Overview
SPECIFICATIONS
| Physical Characteristics | |
| Dimensions | 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in. |
| Weight | 654 g / 23.07 oz. |
| Display | 5.2” IPS LTPS 1920 x 1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Notification | Sound, LED indicator |
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG, Type-C headphones supported |
| Audio | 1 microphone；1 speaker；receiver |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Light sensor, proximity sensor, gravity sensor |
| Communication | |
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| WWAN | 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41 |
| WWAN (Others) | Depending on the country’s ISP |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Note | *C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer. |
| Developing Environment | |
| Operating System | Android 11/13; GMS, FOTA, Soti MobiControl, SafeUEM supported. |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Performance | |
| CPU | Octa-core, 2.3GHz |
| RAM+ROM | 3GB + 32GB 4GB + 64GB (optional) |
| Expansion | Supports up to 256GB Micro SD (TF) card |
| User Environment | |
| Operating Temp. | 4 °F to 122 °F / -20 °C to 50 °C |
| Storage Temp. | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5% RH – 95% RH non condensing |
| Drop Specification | Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | Host IP65 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±6 KV conductive discharge |
| Barcode Scanning | |
| 1D Linear Scanner | Honeywell: N4313 |
| 2D Imager Scanner | Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
| Camera | |
| Camera | 13 MP Autofocus with flash |
| NFC | |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4 cm |
