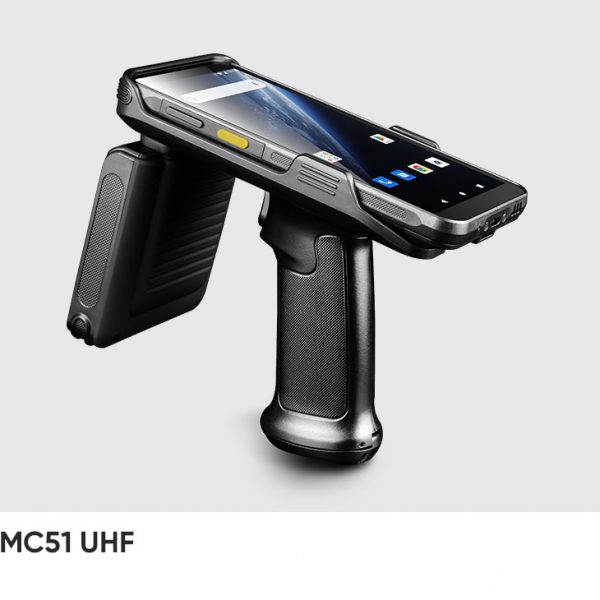

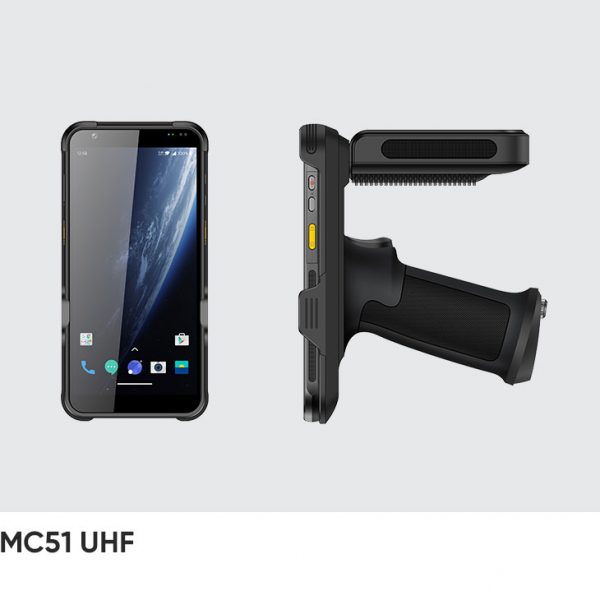

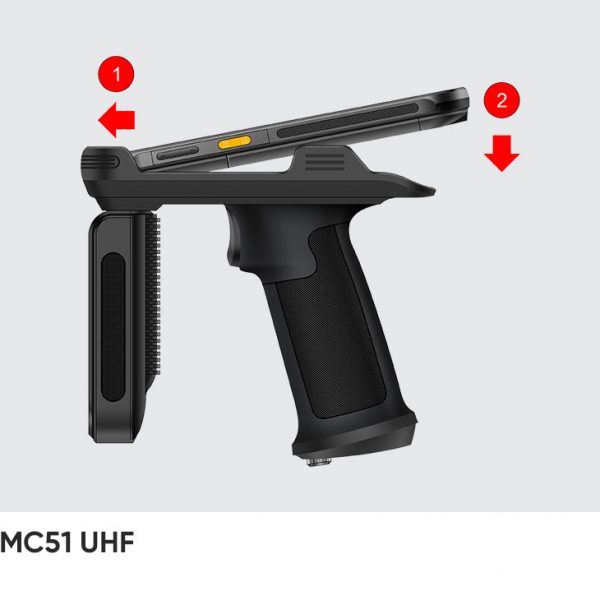

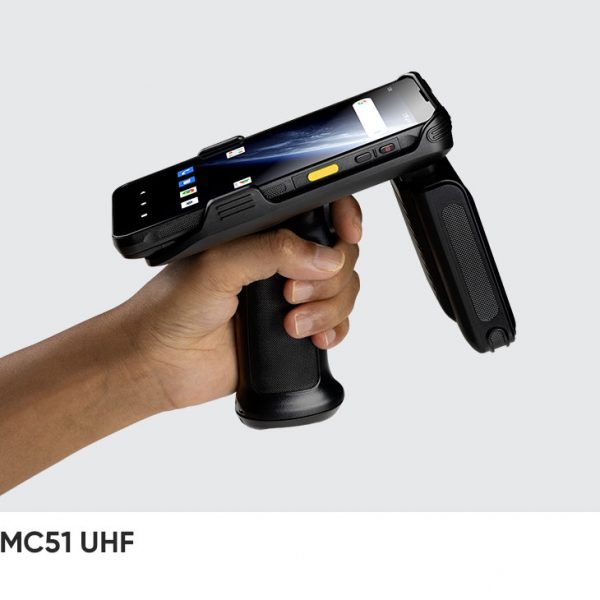

MC51 Chainway 6″, 5G UHF RFID Reader (Android 14)
GET YOUR QUOTE AND DETAILS
Supported payment types:
Overview
| Physical Characteristics | |
| Dimensions | 165.0 x 83.8 x 138.0mm / 6.50 x 3.30 x 5.43 in. |
| Weight | 707g / 24.94oz. (device with battery) |
| Display | 6-inch high definition display (18:9), 1440 x 720 |
| Battery | 5000mAh removable main battery, support QC3.0 and RTC; Support Battery Management System; Hot swap battery backup |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator, vibrator |
| Expansion Slot | 1 for SIM card, 1 for SIM or TF card, Supports eSIM (optional) |
| Interfaces | USB Type-C, USB 3.1, OTG |
| Audio | 2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver |
| Keypad | Power key, 2 scan keys, volume (+/-) keys, 1 multifunctional key |
| Sensors | G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope |
| Communication | |
| WLAN | Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G/6G tri-band, IPV4, IPV6; 2*2 MIMO antennas Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAPLTS, PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc. |
| WWAN (Europe, Asia) | 2G: GSM / EDGE / GPRS (850/900/1800) 3G: WCDMA (B1/B5/B8) 4G: FDD-LTE (B1/B3/B5/B7/B8/B20/B28A/B28B) TDD-LTE (B34/B38/B39/B40/B41) 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 |
| WWAN (America) | 2G: GSM/EDGE/GPRS(850/1900) 3G: WCDMA(B2/B4/B5) 4G: FDD-LTE B2/B4/B5/B7/B12/B13/B25/B26/B28; TDD-LTE B38/B41; 5G: N2/N3/N5/N7/N12/N13/N25/N26/N28/N38/N41/N77/N78 |
| Bluetooth | Bluetooth 5.2 |
| Vo-LTE | Support Vo-LTE HD video voice call |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
| Developing Environment | |
| Operating System | Android 14 |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Performance | |
| CPU | Qualcomm Octa-core, 2.4GHz |
| RAM+ROM | UFS: 4GB + 64GB / 6GB + 128GB (optional) / 8GB + 128GB (optional) / 8GB + 256GB (optional) |
| Expansion | Supports up to 256GB TF card (Supports Extreme Micro SD Card 512GB) |
| User Environment | |
| Operating Temp. | -4°F to 122°F / -20℃ to +50℃ |
| Storage Temp. | -40°F to 158°F / -40℃ to +70℃ |
| Humidity | 5% RH – 95% RH non condensing |
| Drop Specification | Multiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range MIL-STD-810H (SGS Test): Multiple 1.5 m/4.92 ft. drops to concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature |
| Sealing | Host IP67 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
| Barcode Scanning | |
| 2D Scanner | Zebra: SE4710; SE55; CM60 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc. |
| Note | * This function is optional |
| UHF RFID | |
| Engine | CM710-1 module based on Impinj E710 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Impinj Gen2X | Supported |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular Polarized Antenna (4 dBi) |
| Power | 1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) |
| Fastest Read Rate (circular polarization) | 1300+ tags/sec |
| Max Read Range | 26m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Read Range | Pin Connector |
| Note | * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. |
| NFC | |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4 cm |
| Optional Accessories | |
| Accessories | USB Cable, Adapter, Charging Cradle, Rugged Rubber Boot, etc. |
| Note | *See details in accessory guide |
